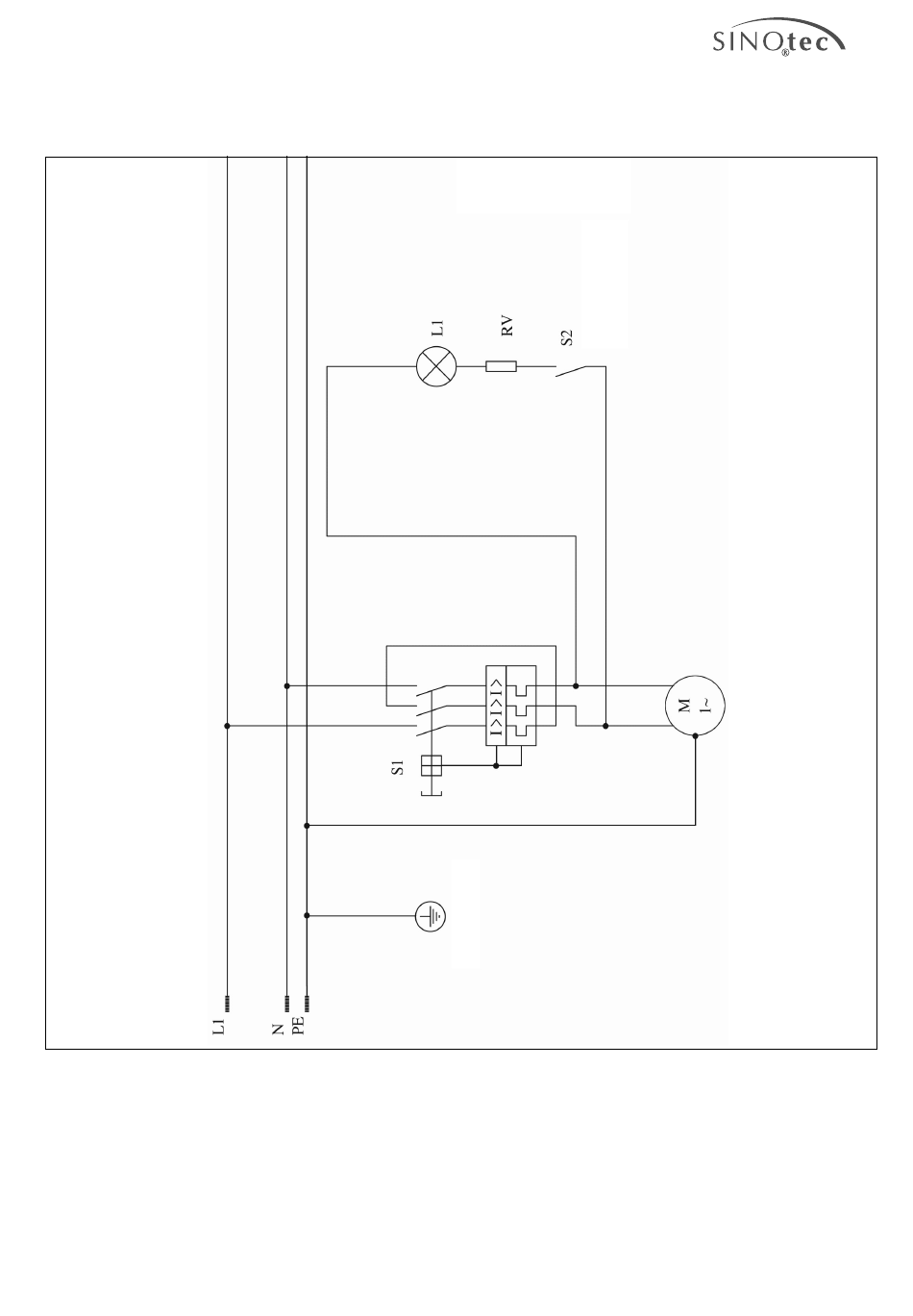

Wiring diagram - 1 Phase AC - 1 x 230 V / 50 Hz
Key
L1 = indicator lamp red, 115 V
RV = pre-resisitor = 180 KΩ
S1 = motor circuit switch 2,2 - 3,2 A
S2 = differential pressure switch
