Assembling the trolley
Safety
Danger from work that is not carried out properly.
This can result in severe personal injury and damage to property.
▶
▶
Assembling the
trolley
Danger from machines toppling over or falling.
This can result in serious personal injury and damage to property.
▶
▶

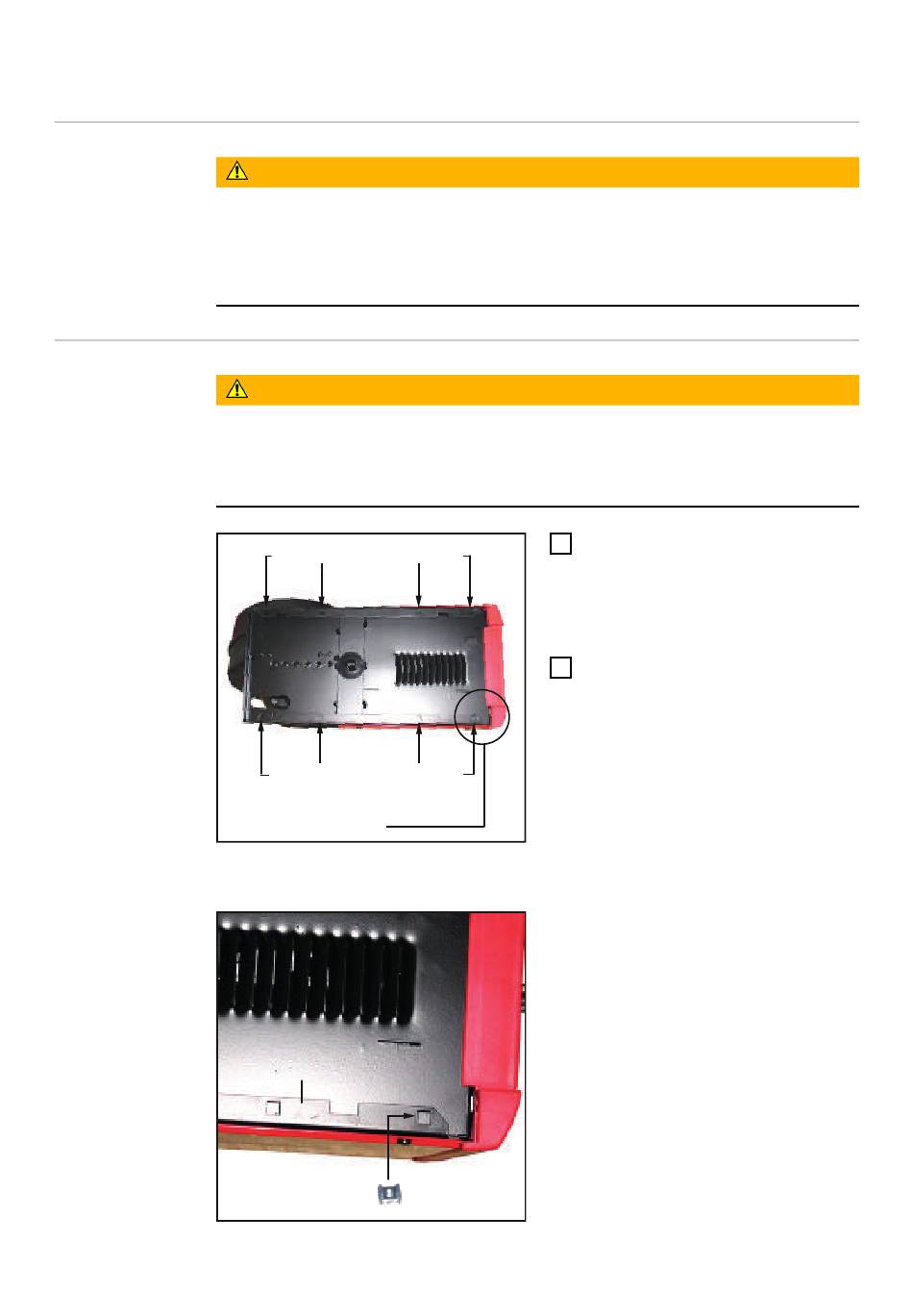

Recesses for captive nuts on the underside of
the wirefeeder
Close-up of view "Y": Inserting the captive nuts
8
WARNING!
All work described below may only be performed by trained specialist per-
sonnel.
Read and understand these Operating Instructions.
WARNING!
Set up the device securely on an even, solid surface.
Check all screw connections are tightly fastened after installation.
Recesses for captive nuts
Recesses for captive nuts
Close-up Y
Fixing bar
Captive nut
Check the screw connections on
1
the trolley to make sure that these
are tight
IMPORTANT! Insert the captive
nuts from the inside toward the
outside
Insert 8 captive nuts in the reces-
2
ses on the underside of the wire-
feeder:
- Place the captive nuts under
the fixing bar on the wirefee-
der
- Insert the captive nuts into the
recesses, from the inside
toward the outside
- Check that the captive nuts
are sitting tightly in the reces-
ses
