Operating the 3-Stage I.V. Pole (Optional Equipment)
1. Lift and pivot the pole from the storage position and push down un‐
til it is locked into receptacle (A).
2. To raise the height of the pole, turn the lock actuator (B) counter‐
clockwise and pull up on the bottom telescoping portion (C) of the
pole to raise it to the desired height.
3. Turn the lock actuator (B) clockwise to lock the bottom telescoping
portion in place.
4. For a higher I.V. pole, pull up on section (D) until the spring clip (E)
engages.
5. Hang I.V. bags on the I.V. hook (F).
CAUTION
The weight of the I.V. bags or equipment must not exceed 40 pounds.
6. To lower the I.V. pole, push in on the spring clip (E) and slide sec‐
tion (D) down into section (C). Turn the lock actuator (B) counter‐
clockwise and slide section (C) into the bottom tube.
7. Lift up and pivot the pole down into the storage position.

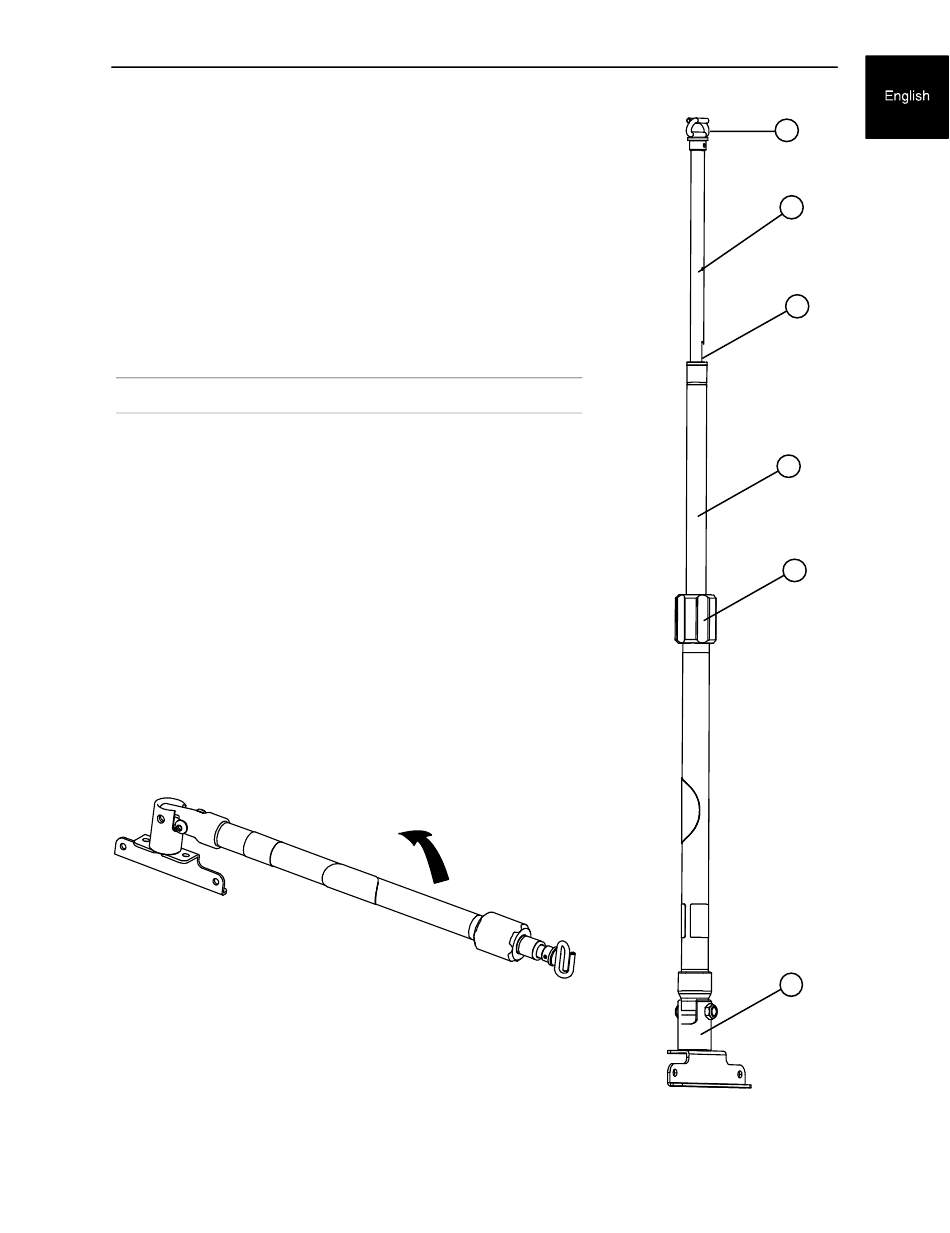

Figure 35
3-Stage I.V. Pole
Storage Position
