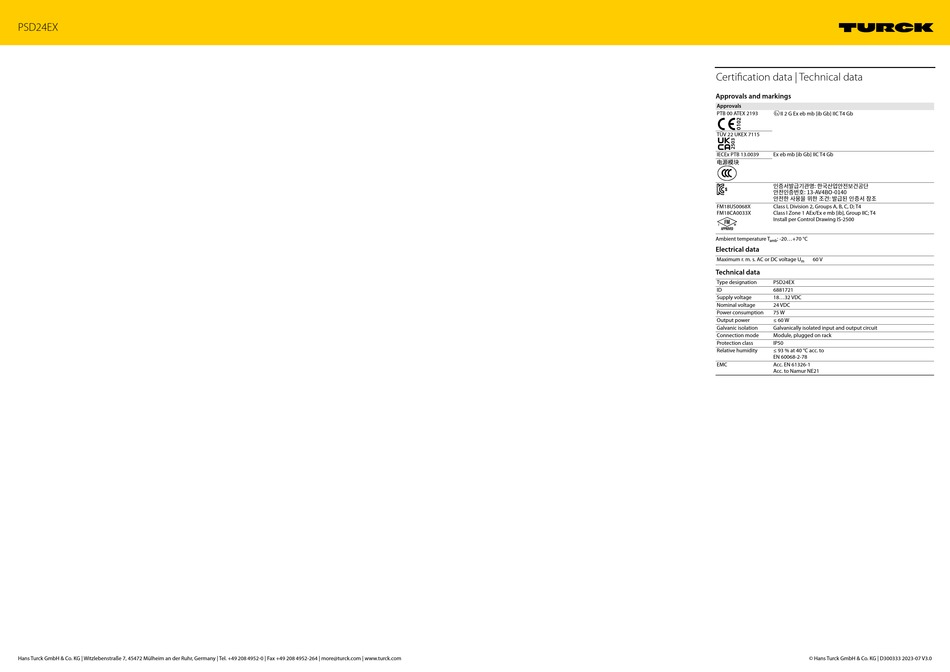

PSD24EX
Hans Turck GmbH & Co. KG | Witzlebenstraße 7, 45472 Mülheim an der Ruhr, Germany | Tel. +49 208 4952-0 | Fax +49 208 4952-264 | more@turck.com | www.turck.com
Certification data | Technical data
Approvals and markings
Approvals
PTB 00 ATEX 2193
ÉII 2 G Ex eb mb [ib Gb] IIC T4 Gb
TÜV 22 UKEX 7115
IECEx PTB 13.0039
Ex eb mb [ib Gb] IIC T4 Gb
电源模块
인증서발급기관명: 한국산업안전보건공단
안전인증번호: 13-AV4BO-0140
안전한 사용을 위한 조건: 발급된 인증서 참조
FM18US0068X
Class I, Division 2, Groups A, B, C, D; T4
FM18CA0033X
Class I Zone 1 AEx/Ex e mb [ib], Group IIC; T4
Install per Control Drawing IS-2500
Ambient temperature T
: -20...+70 °C
amb
Electrical data
Maximum r. m. s. AC or DC voltage U
60 V
m
Technical data
Type designation
PSD24EX
ID
6881721
Supply voltage
18...32 VDC
Nominal voltage
24 VDC
Power consumption
75 W
Output power
≤ 60 W
Galvanic isolation
Galvanically isolated input and output circuit
Connection mode
Module, plugged on rack
Protection class
IP50
Relative humidity
≤ 93 % at 40 °C acc. to
EN 60068-2-78
EMC
Acc. EN 61326-1
Acc. to Namur NE21
© Hans Turck GmbH & Co. KG | D300333 2023-07 V3.0
