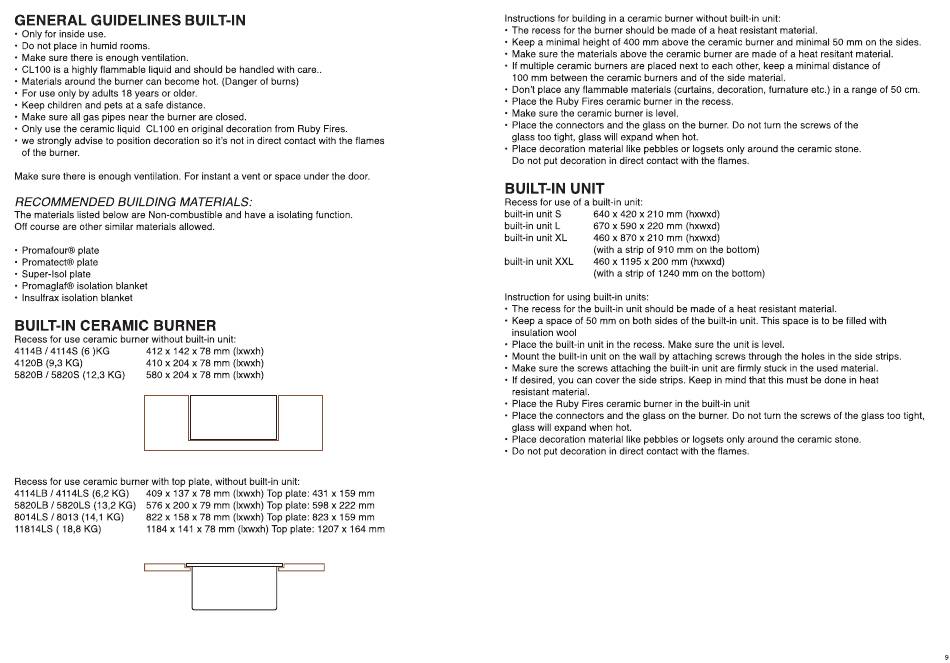

GENERAL GUIDELINES BUILT-IN
• Only for inside use.
• Do not place in humid rooms.
• Make sure there is enough ventilation.
• CLIOO is a highly flammable liquid and should be handled with care..
• Materials around the burner can become hot. (Danger of burns)
• For use only by adults 18 years or older.
• Keep children and pets at a safe distance.
• Make sure all gas pipes near the burner are closed.
• Only use the ceramic liquid CLIOO en original decoration from Ruby Fires.
• we strongly advise to position decoration so it's not in direct contact with the flames
of the burner.
Make sure there is enough ventilation. For instant a vent or space under the door.
RECOMMENDED BUILDING MATERIALS:
The materials listed below are Non-combustible
Off course are other similar materials allowed.
• Promafour@ plate
• Promatect@ plate
• Super-Isol plate
• Promaglaf@ isolation blanket
• Insulfrax isolation blanket
BUILT-IN CERAMIC BURNER
Recess for use ceramic burner without built-in
4114B / 4114S (6 )KG 412 x 142 x 78 mm (lxwxh)
4120B (9,3 KG) 410 x 204 x 78 mm (lxwxh)
5820B / 5820S (12,3 KG) 580 x 204 x 78 mm (lxwxh)
Recess for use ceramic burner with top plate, without built-in unit:
4114LB / 4114LS (6,2 KG) 409 x 137 x 78 mm (lxwxh) Top plate: 431 x 159 mm
5820LB / 5820LS (13,2 KG) 576 x 200 x 79 mm (lxwxh) Top plate: 598 x 222 mm
8014LS / 8013 (14,1 KG) 822 x 158 x 78 mm (lxwxh) Top plate: 823 x 159 mm
11814LS ( 18,8 KG) 1184 x 141 x 78 mm (lxwxh) Top plate: 1207 x 164 mm
and have a isolating function.
unit:
Instructions for building in a ceramic burner without built-in unit:
• The recess for the burner should be made
• Keep a minimal height of 400 mm above the ceramic burner and minimal 50 mm on the sides.
• Make sure the materials above the ceramic
• If multiple ceramic burners are placed next to each other, keep a minimal distance of
100 mm between the ceramic burners and
• Don't place any flammable materials (curtains, decoration, furnature etc.) in a range of 50 cm.
• Place the Ruby Fires ceramic burner in the recess.
• Make sure the ceramic burner is level.
• Place the connectors and the glass on the burner. Do not turn the screws of the
glass too tight, glass will expand when hot.
• Place decoration material like pebbles or logsets only around the ceramic stone.
Do not put decoration in direct contact with the flames.
BUILT-IN UNIT
Recess for use of a built-in unit:
built-in unit S 640 x 420 x 210 mm (hxwxd)
built-in unit L 670 x 590 x 220 mm (hxwxd)
built-in unit XL 460 x 870 x 210 mm (hxwxd)
(with a strip of 910 mm on the bottom)
built-in unit XXL 460 x 1195 x 200 mm (hxwxd)
(with a strip of 1240 mm on the bottom)
Instruction for using built-in units:
• The recess for the built-in unit should be made
• Keep a space of 50 mm on both sides of the built-in unit. This space is to be filled with
insulation wool
• Place the built-in unit in the recess. Make
• Mount the built-in unit on the wall by attaching screws through the holes in the side strips.
• Make sure the screws attaching the built-in unit are firmly stuck in the used material.
• If desired, you can cover the side strips. Keep in mind that this must be done in heat
resistant material.
• Place the Ruby Fires ceramic burner in the built-in unit
• Place the connectors and the glass on the burner. Do not turn the screws of the glass too tight,
glass will expand when hot.
• Place decoration material like pebbles or logsets only around the ceramic stone.
• Do not put decoration in direct contact with the flames.
of a heat resistant material.
burner are made of a heat resitant material.
of the side material.
of a heat resistant material.
sure the unit is level.
9
