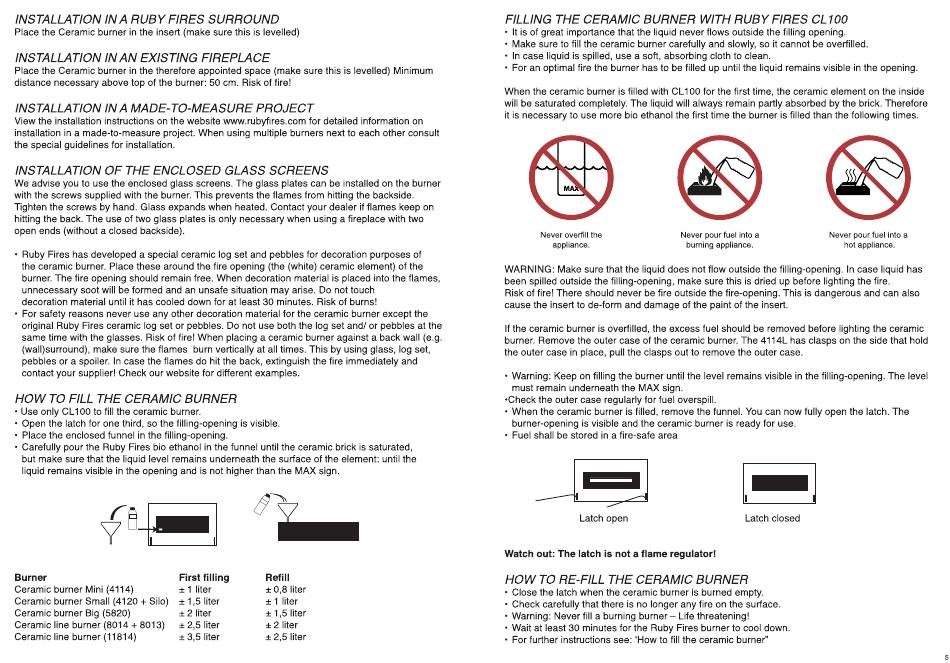

INSTALLATION IN A RUBY FIRES
Place the Ceramic burner in the insert (make sure this is levelled)
INSTALLATION IN AN EXISTING
Place the Ceramic burner in the therefore appointed space (make sure this is levelled) Minimum
distance necessary above top of the burner: 50 cm. Risk of fire!
INSTALLATION IN A MADE-TO-MEASURE
View the installation instructions on the website www.rubyfires.com
installation in a made-to-measure project. When using multiple burners next to each other consult
the special guidelines for installation.
INSTALLATION OF THE ENCLOSED
We advise you to use the enclosed glass screens. The glass plates can be installed on the burner
with the screws supplied with the burner. This prevents the flames from hitting the backside.
Tighten the screws by hand. Glass expands when heated. Contact your dealer if flames keep on
hitting the back. The use of two glass plates is only necessary when using a fireplace with two
open ends (without a closed backside).
• Ruby Fires has developed a special ceramic log set and pebbles for decoration purposes of
the ceramic burner. Place these around the fire opening (the (white) ceramic element) of the
burner. The fire opening should remain free. When decoration material is placed into the flames,
unnecessary soot will be formed and an unsafe situation may arise. Do not touch
decoration material until it has cooled down
• For safety reasons never use any other decoration material for the ceramic burner except the
original Ruby Fires ceramic log set or pebbles. Do not use both the log set and/ or pebbles at the
same time with the glasses. Risk of fire! When placing a ceramic burner against a back wall (e.g.
(wall)surround), make sure the flames burn vertically at all times. This by using glass, log set,
pebbles or a spoiler. In case the flames do hit the back, extinguish the fire immediately and
contact your supplier! Check our website for different examples.
HOW TO FILL THE CERAMIC BURNER
• Use only CLIOO to fill the ceramic burner.
• Open the latch for one third, so the filling-opening
• Place the enclosed funnel in the filling-opening.
• Carefully pour the Ruby Fires bio ethanol in the funnel until the ceramic brick is saturated,
but make sure that the liquid level remains underneath the surface of the element: until the
liquid remains visible in the opening and is not higher than the MAX sign.
First filling
Burner
Ceramic burner Mini (4114)
± 1 liter
Ceramic burner Small (41 20 + Silo) ±
Ceramic burner Big (5820) ± 2 liter
Ceramic line burner (8014 + 8013) ±
Ceramic line burner (11814) ±
SURROUND
FIREPLACE
PROJECT
for detailed information on
GLASS SCREENS
for at least 30 minutes. Risk of burns!
is visible.
Refill
± liter
liter ± 1 liter
± liter
liter ± 2 liter
liter ± 2,5 liter
FILLING THE CERAMIC BURNER
• It is of great importance that the liquid never flows outside the filling opening.
• Make sure to fill the ceramic burner carefully and slowly, so it cannot be overfilled.
• In case liquid is spilled, use a soft, absorbing cloth to clean.
• For an optimal fire the burner has to be filled up until the liquid remains visible in the opening.
When the ceramic burner is filled with CLI 00 for the first time, the ceramic
will be saturated completely. The liquid will always remain partly absorbed by the brick. Therefore
Never overfill the Never pour fuel into a
appliance.
WARNING: Make sure that the liquid does not flow outside the filling-opening.
been spilled outside the filling-opening, make sure this is dried up before lighting the fire.
Risk of fire! There should never be fire outside the fire-opening. This is dangerous and can also
cause the insert to de-form and damage of the paint of the insert.
If the ceramic burner is overfilled, the excess fuel should be removed before lighting the ceramic
burner. Remove the outer case of the ceramic burner. The 4114L has clasps on the side that hold
the outer case in place, pull the clasps out to remove the outer case.
• Warning: Keep on filling the burner until the level remains visible in the filling-opening.
must remain underneath the MAX sign.
•Check the outer case regularly for fuel overspill.
• When the ceramic burner is filled, remove the funnel. You can now fully open the latch. The
burner-opening is visible and the ceramic burner is ready for use.
• Fuel shall be stored in a fire-safe area
Latch open
Watch out: The latch is not a flame regulator!
HOW TO RE-FILL THE CERAMIC
• Close the latch when the ceramic burner is burned empty.
• Check carefully that there is no longer any fire on the surface.
• Warning: Never fill a burning burner —Life threatening!
• Wait at least 30 minutes for the Ruby Fires burner to cool down.
• For further instructions see: 'How to fill the
WITH RUBY FIRES CL 100
element
Never pour fuel into a
burning appliance. hot appliance.
In case liquid has
Latch closed
BURNER
ceramic burner"
on the inside
The level
