6. Commissioning
Power ratings (see data sheet)

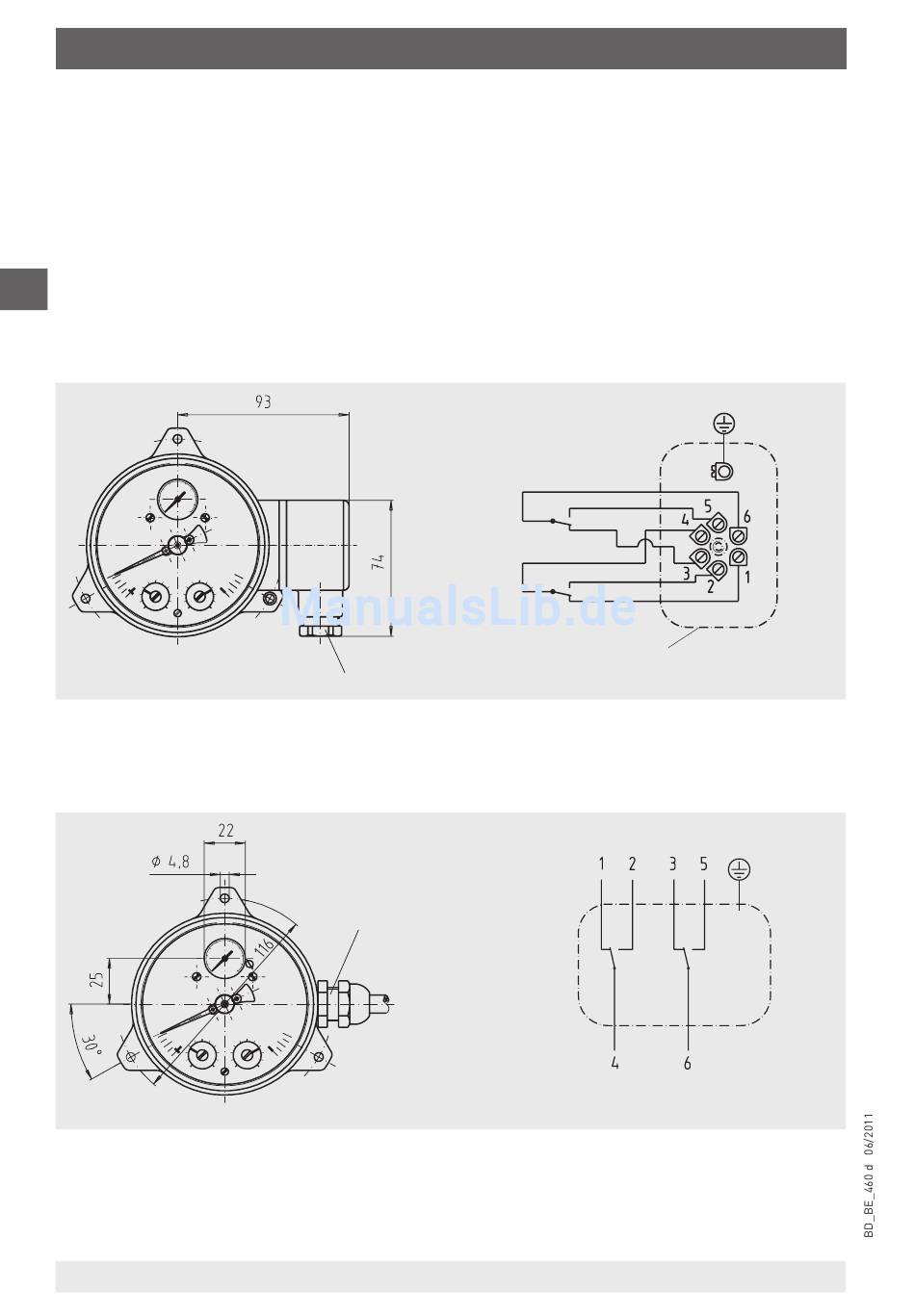

Precise wiring schemes can be seen in the following drawings.
In addition to the wiring details and required power supply are given on the type
plate.
GB
Electrical connection is by means
of terminal box or L-plug per DIN 43 651
„
or electrical connection is by means
of cable gland and cable
„
16
5.33 2nd contact
5 .3
M20 x 1,5
Cable gland
M20 x 1.5
with 1 m cable
1st contact
Terminal box
5.3 5.33
1st contact 2nd contact
