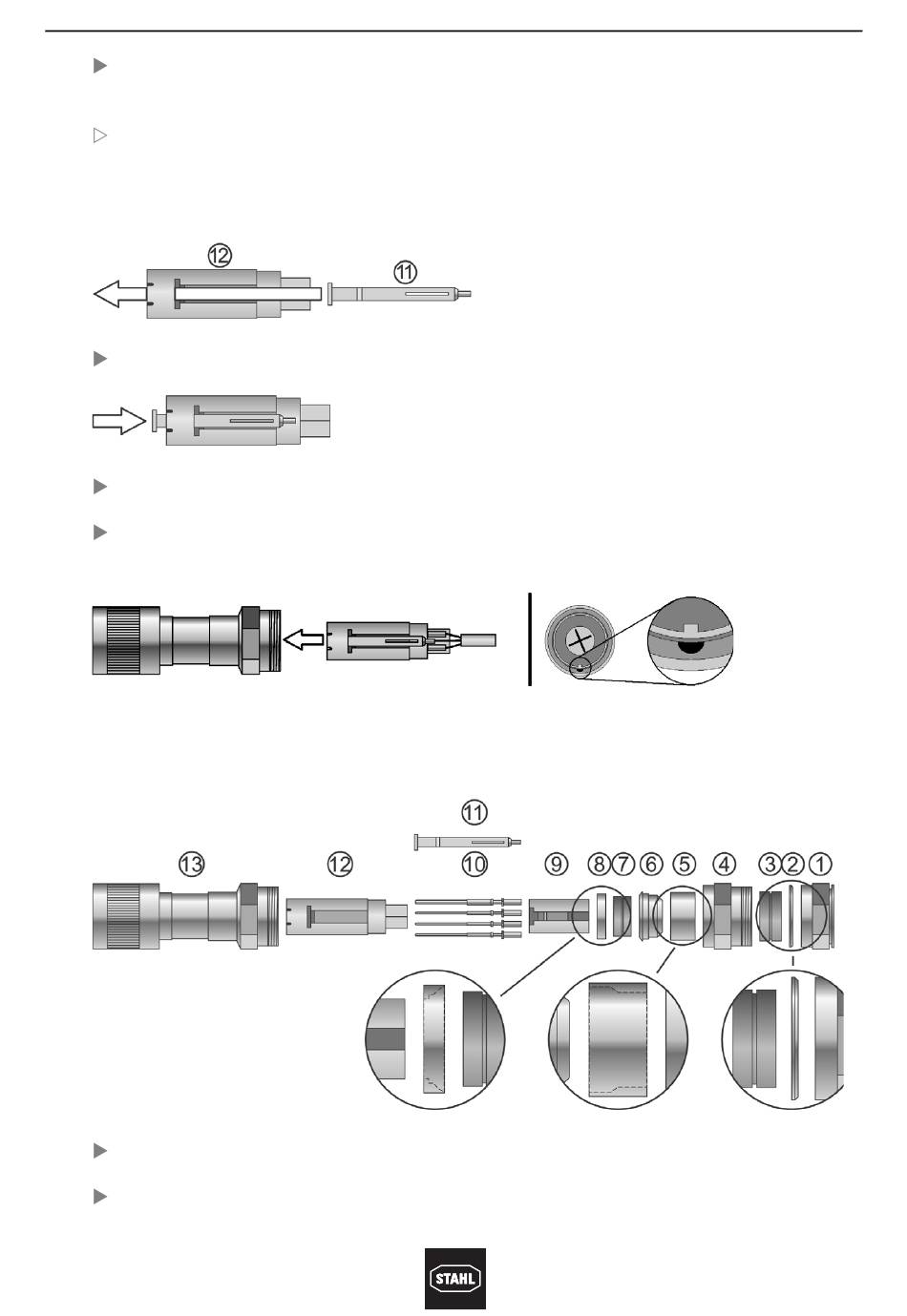

Guide the plug pins (10) from behind into the device plug insert (12) until the stop. The
hexagonal edges of the plug pins must be correctly aligned so as to fit in the
plug insert (12).
They audibly latch into position.
Version with PE bracket (11):
Guide the PE bracket (11) into the recess in the plug insert (12).
Push the PE bracket backwards into the groove on the front side of the plug insert until
it engages.
Insert the plug insert (12) together with the insulating sleeve (9) into the plug sleeve
(13) in the correct position from behind.
During the following assembly steps make sure that the components are correctly
oriented:
Insert the pressure washer (8), the seal (7) and clamping cone (6) in the
plug sleeve (13).
Place screen wire shielding over the clamping cone (6).
154099 / 8591601300
S-BA-8591-04-en-04/09/2009
Ex Plug Connector miniClix
8591/1, 8591/4
Installation
11381E00
11370E00
11382E00
11383E00
