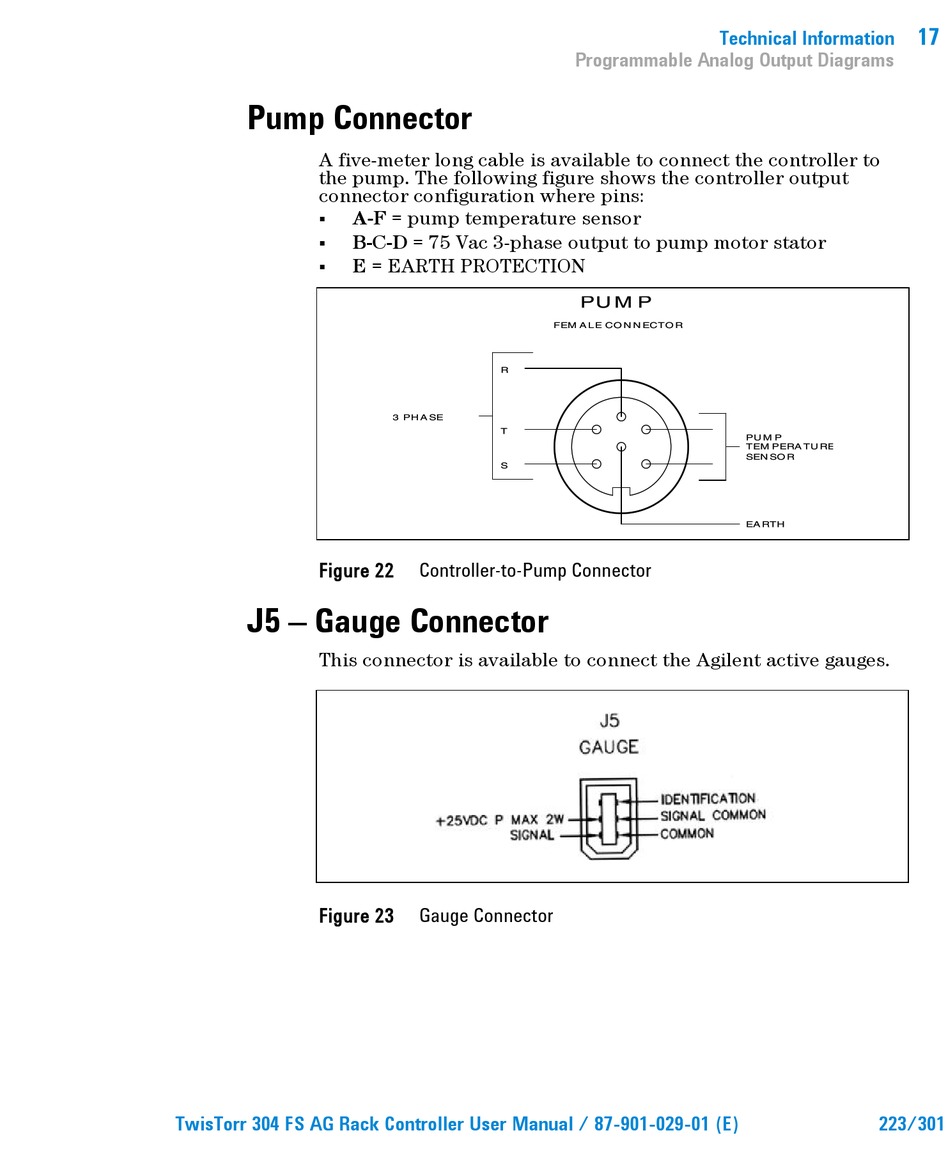

Pump Connector

A five-meter long cable is available to connect the controller to
the pump. The following figure shows the controller output
connector configuration where pins:
A-F = pump temperature sensor

B-C-D = 75 Vac 3-phase output to pump motor stator

E = EARTH PROTECTION

Figure 22
J5 – Gauge Connector
This connector is available to connect the Agilent active gauges.
Figure 23
TwisTorr 304 FS AG Rack Controller User Manual / 87-901-029-01 (E)
Programmable Analog Output Diagrams
Controller-to-Pump Connector
Gauge Connector
