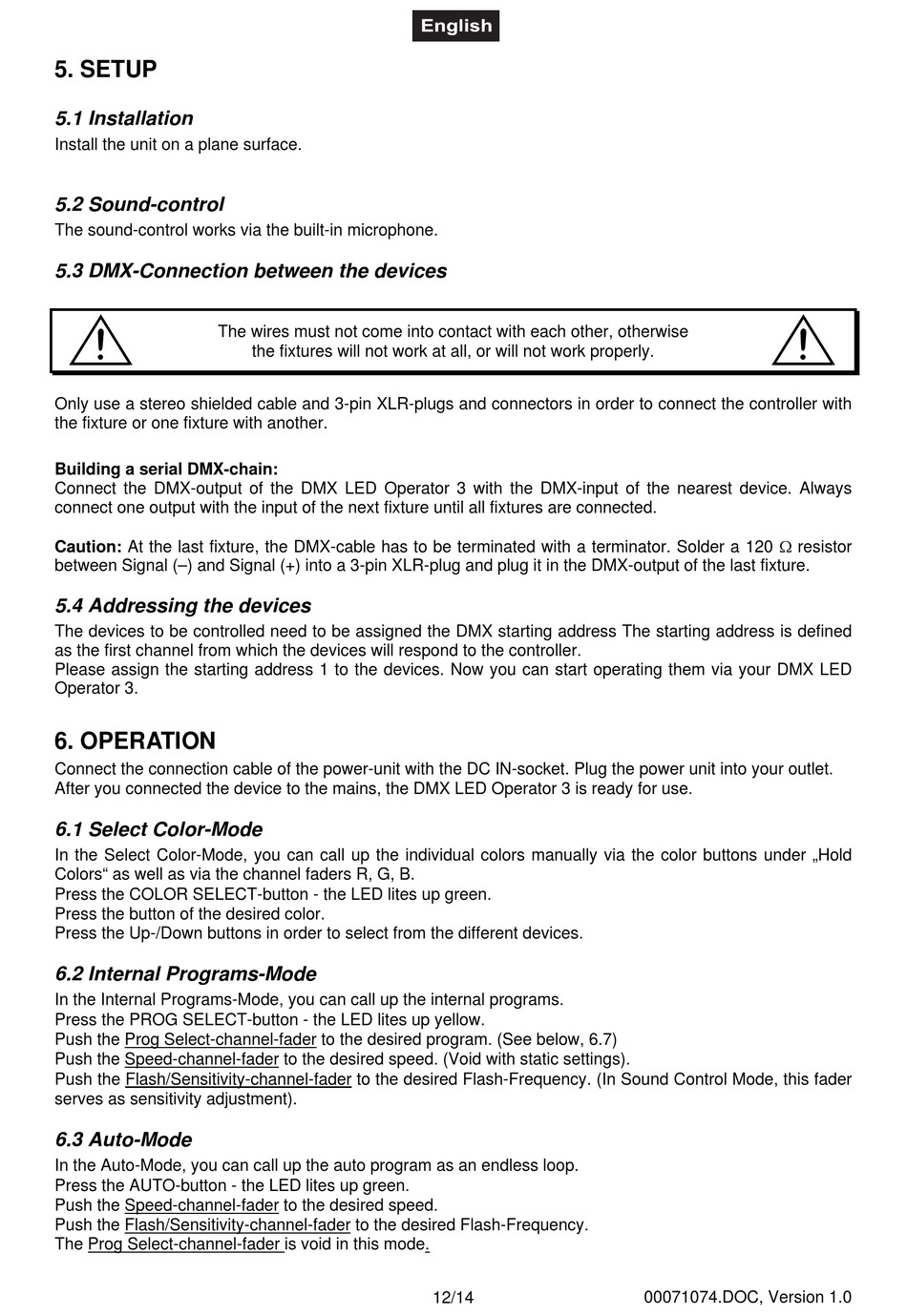

EuroLite DMX LED Operator 3 Bedienungsanleitung Seite 12

5. SETUP
5.1 Installation
Install the unit on a plane surface.
5.2 Sound-control
The sound-control works via the built-in microphone.
5.3 DMX-Connection between the devices
The wires must not come into contact with each other, otherwise
the fixtures will not work at all, or will not work properly.
Only use a stereo shielded cable and 3-pin XLR-plugs and connectors in order to connect the controller with
the fixture or one fixture with another.
Building a serial DMX-chain:
Connect the DMX-output of the DMX LED Operator 3 with the DMX-input of the nearest device. Always
connect one output with the input of the next fixture until all fixtures are connected.
Caution: At the last fixture, the DMX-cable has to be terminated with a terminator. Solder a 120  resistor
between Signal (–) and Signal (+) into a 3-pin XLR-plug and plug it in the DMX-output of the last fixture.
5.4 Addressing the devices
The devices to be controlled need to be assigned the DMX starting address The starting address is defined
as the first channel from which the devices will respond to the controller.
Please assign the starting address 1 to the devices. Now you can start operating them via your DMX LED
Operator 3.
6. OPERATION
Connect the connection cable of the power-unit with the DC IN-socket. Plug the power unit into your outlet.
After you connected the device to the mains, the DMX LED Operator 3 is ready for use.
6.1 Select Color-Mode
In the Select Color-Mode, you can call up the individual colors manually via the color buttons under „Hold
Colors" as well as via the channel faders R, G, B.
Press the COLOR SELECT-button - the LED lites up green.
Press the button of the desired color.
Press the Up-/Down buttons in order to select from the different devices.
6.2 Internal Programs-Mode
In the Internal Programs-Mode, you can call up the internal programs.
Press the PROG SELECT-button - the LED lites up yellow.
Push the Prog Select-channel-fader to the desired program. (See below, 6.7)
Push the Speed-channel-fader to the desired speed. (Void with static settings).
Push the Flash/Sensitivity-channel-fader to the desired Flash-Frequency. (In Sound Control Mode, this fader
serves as sensitivity adjustment).
6.3 Auto-Mode
In the Auto-Mode, you can call up the auto program as an endless loop.
Press the AUTO-button - the LED lites up green.
Push the Speed-channel-fader to the desired speed.
Push the Flash/Sensitivity-channel-fader to the desired Flash-Frequency.
The Prog Select-channel-fader is void in this mode.
