Attention:
•
•
•

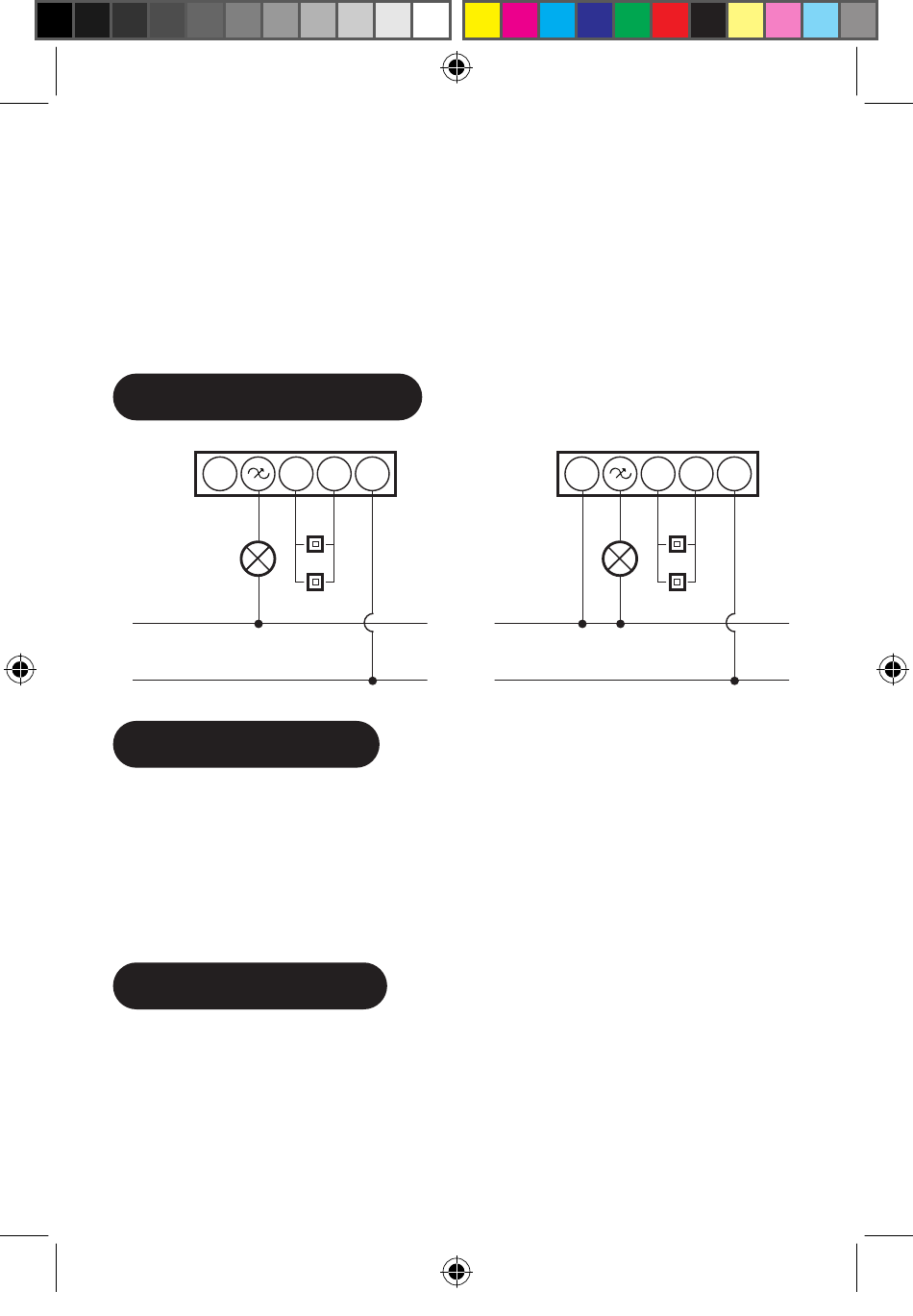

Connection diagrams

2-wired
connection
N wire
L wire
Min. set light level
Switch on the lighting using the retractive switch. Then push the retractive switch until
the light output is on its minimum level. Are your lights blinking? Then slowly turn the MIN
potentiometer to the right with a screwdriver till you get stable light. Is the light already
stable? Then slowly turn the MIN potentiometer to the left for an even better dimmability,
until just before the point the lights start to blink. That is the best dimmability of the led
lamps.
Max. set light level
Switch on the lighting using the retractive switch. Then push the retractive switch until the
light output is on its maximum level. Are your lights blinking? Then slowly turn the MAX
potentiometer to the left with a screwdriver till you get stable light. Is the light already
stable? Then slowly turn the MAX potentiometer to the right for an even better dimming
range, until just before the point the lights start to blink. That is the best dimmability of the
led lamps.
ECO-DIM.14 Push Dimmer Handleiding.indd 7 ECO-DIM.14 Push Dimmer Handleiding.indd 7
This is a two-wired & three-wired dimmer and it must be connected as shown under
the heading 'Connection diagrams'.
The installation of the dimmer on a mains supply of 230V must be carried out by a
qualified professional, in observance of the national regulations. Make sure that the
electricity is switched off during all work.
There can not be more than one dimmer connected parralel.
3 P L
P
L
3-wired
connection
N wire
L wire
3 P L L
P
