Connection Diagram - EcoDim ECO-DIM.05 Handbuch

Led dual dimmer phase cut / trailing edge
Vorschau ausblenden Andere Handbücher für ECO-DIM.05:

Werbung

Verfügbare Sprachen

Verfügbare Sprachen

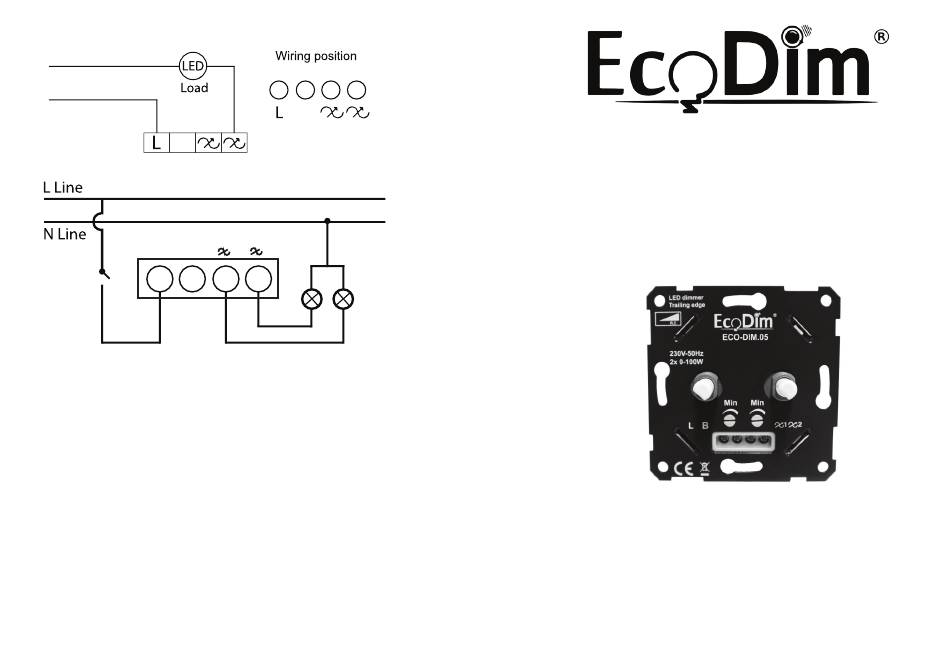

Connection diagram

(Switch wire, usually black)
N Line
L Line
(Phase wire, usually
brown)
B
L
B
MIN. set up
Use the MIN meters to set the minimum light level and stability.
Min. set light level:
Switch on the lighting using the dimmer shaft. Then turn the dimmer shaft
as far to the left as possible (minimum light output). Are the lamps flashing?
Then slowly turn the MIN potentiometer clockwise with a screwdriver
for stable light. Is the light already stable? Then slowly turn the MIN
counterclockwise for even better dimmability until the lights start flashing
just before the point. That is the best dimmability of these LED lamps. You
can adjust this for both light groups.
B
1
2
Manual
LED Dual Dimmer Phase Cut / Trailing edge
ECO-DIM.05
Please note:
- This is a two-wire dimmer which must be connected as shown under the
heading Connection diagram.
- Installing the dimmer on a mains current of 230V must be carried out by a
qualified technician, complying with national regulations. Make sure that the
electricity is switched off during all work.
