EcoDim ECO-DIM.14 Handbuch Seite 8

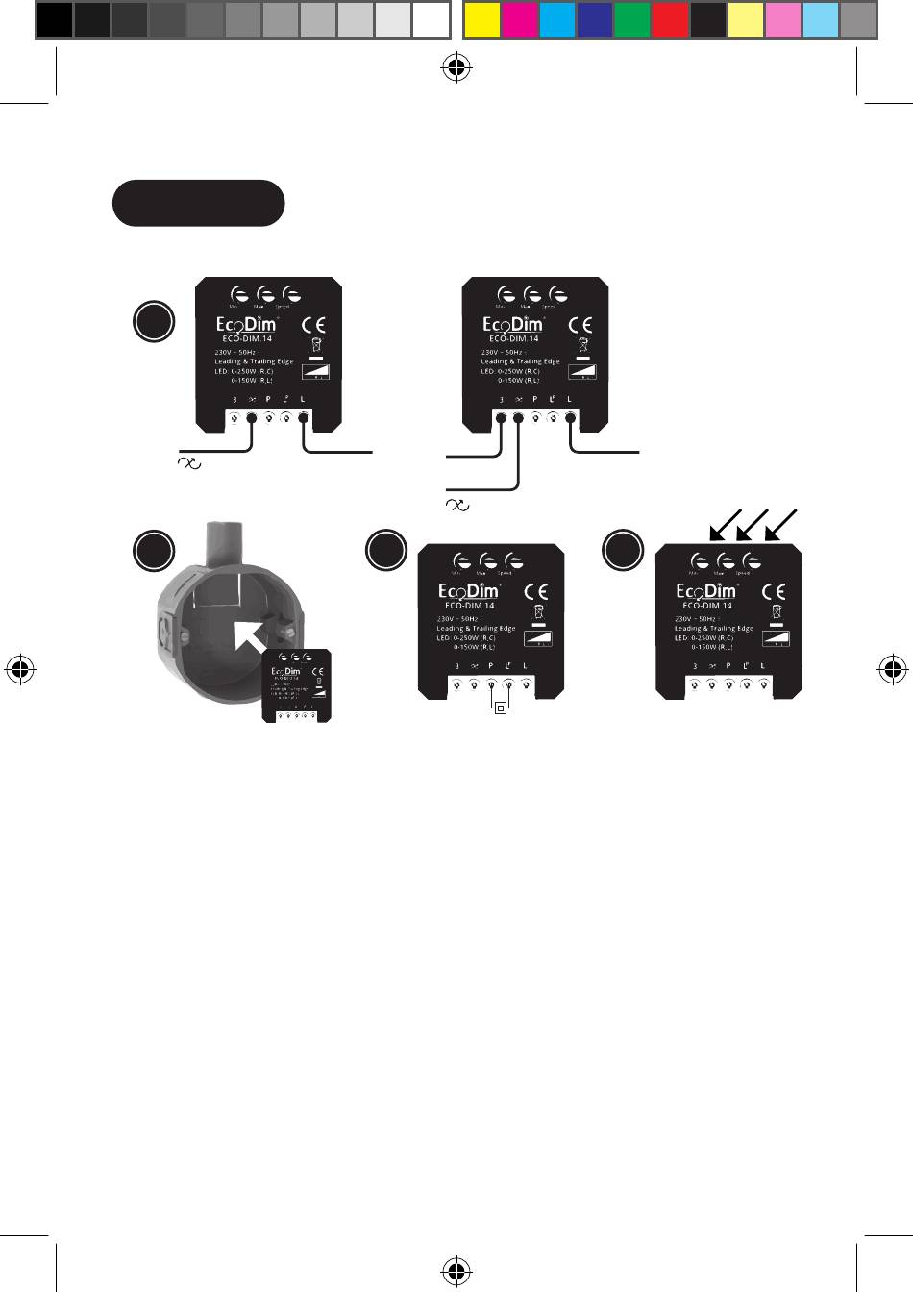

Installation
2-wired connection
1
2
Step 1
Always make sure that the electricity is turned off during installation. Then connect the
power wires as indicated under 'Installation' .
Step 2
Now install the dimmer in the flush-mounted box.
Step 3
Connect the "P" terminal on dimmer to the retractive switch "L
Step 4
Switch the electricity back on. Switch on the connected lamps using the retractive switch.
Now set the MIN, MAX & SPEED, as indicated under "Min. / Max. / Speed set light level" .
ECO-DIM.14 Push Dimmer Handleiding.indd 9 ECO-DIM.14 Push Dimmer Handleiding.indd 9
wire
L wire
3
3-wired connection
L wire
N wire
wire
4
" .
P
MIN MAX SPEED
