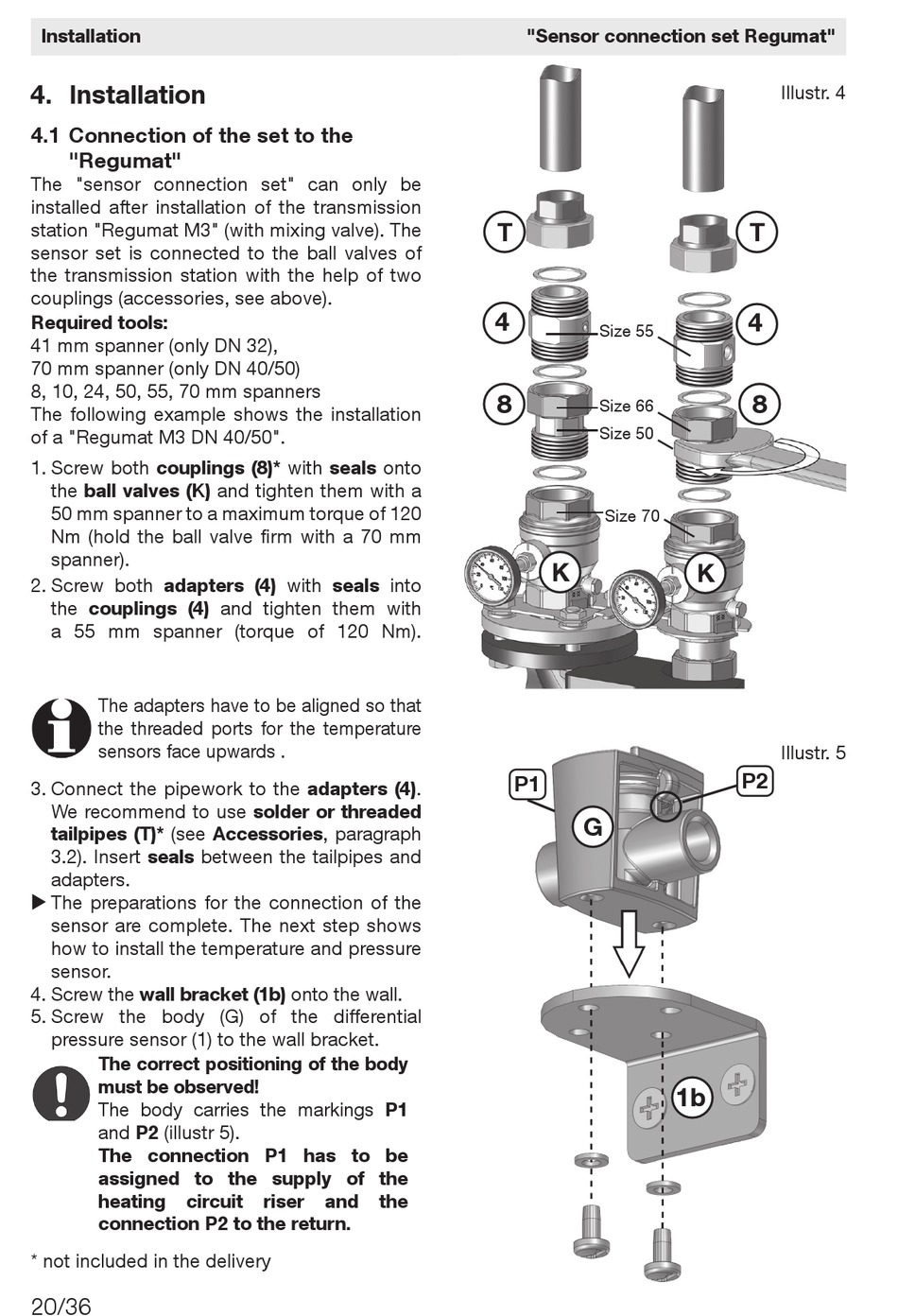

Installation

4. Installation
4.1 Connection of the set to the
"Regumat"
The "sensor connection set" can only be
installed after installation of the transmission
station "Regumat M3" (with mixing valve). The
sensor set is connected to the ball valves of
the transmission station with the help of two
couplings (accessories, see above).
Required tools:
41 mm spanner (only DN 32),
70 mm spanner (only DN 40/50)
8, 10, 24, 50, 55, 70 mm spanners
The following example shows the installation
of a "Regumat M3 DN 40/50".
1. Screw both couplings (8)* with seals onto
the ball valves (K) and tighten them with a
50 mm spanner to a maximum torque of 120
Nm (hold the ball valve fi rm with a 70 mm
spanner).
2. Screw both adapters (4) with seals into
the couplings (4) and tighten them with
a 55 mm spanner (torque of 120 Nm).
The adapters have to be aligned so that
the threaded ports for the temperature
sensors face upwards .
3. Connect the pipework to the adapters (4).
We recommend to use solder or threaded
tailpipes (T)* (see Accessories, paragraph
3.2). Insert seals between the tailpipes and
adapters.
 The preparations for the connection of the
sensor are complete. The next step shows
how to install the temperature and pressure
sensor.
4. Screw the wall bracket (1b) onto the wall.
5. Screw the body (G) of the differential
pressure sensor (1) to the wall bracket.
The correct positioning of the body
must be observed!
The body carries the markings P1
and P2 (illustr 5).
The connection P1 has to be
assigned to the supply of the
heating
circuit
connection P2 to the return.
* not included in the delivery
20/36
riser
and
the
"Sensor connection set Regumat"
T
4
Size 55
8
Size 66
Size 50
Size 70
K
P1
G
Illustr. 4
Illustr. 4
T
4
8
K
Illustr. 5
P2
1b
