5

Servicing, cleaning, maintenance

A special servicing is not required, because the spindle unit is protected by the carriage
construction.

5.1 General cleaning / lubrication

Clean and oil the running surfaces and guides of the vice regularly, e.g. with MOTOREX
Supergliss 68 K to ISO VG 68.
6

Troubleshooting, eliminating faults

Vice is hard to operate
Remove the system jaws, clean the vice and damaged surfaces must be carefully levelled off
with a honing stone.
If this does not result in an improvement of the function, the vice can be further dismantled in
accordance with the description below.

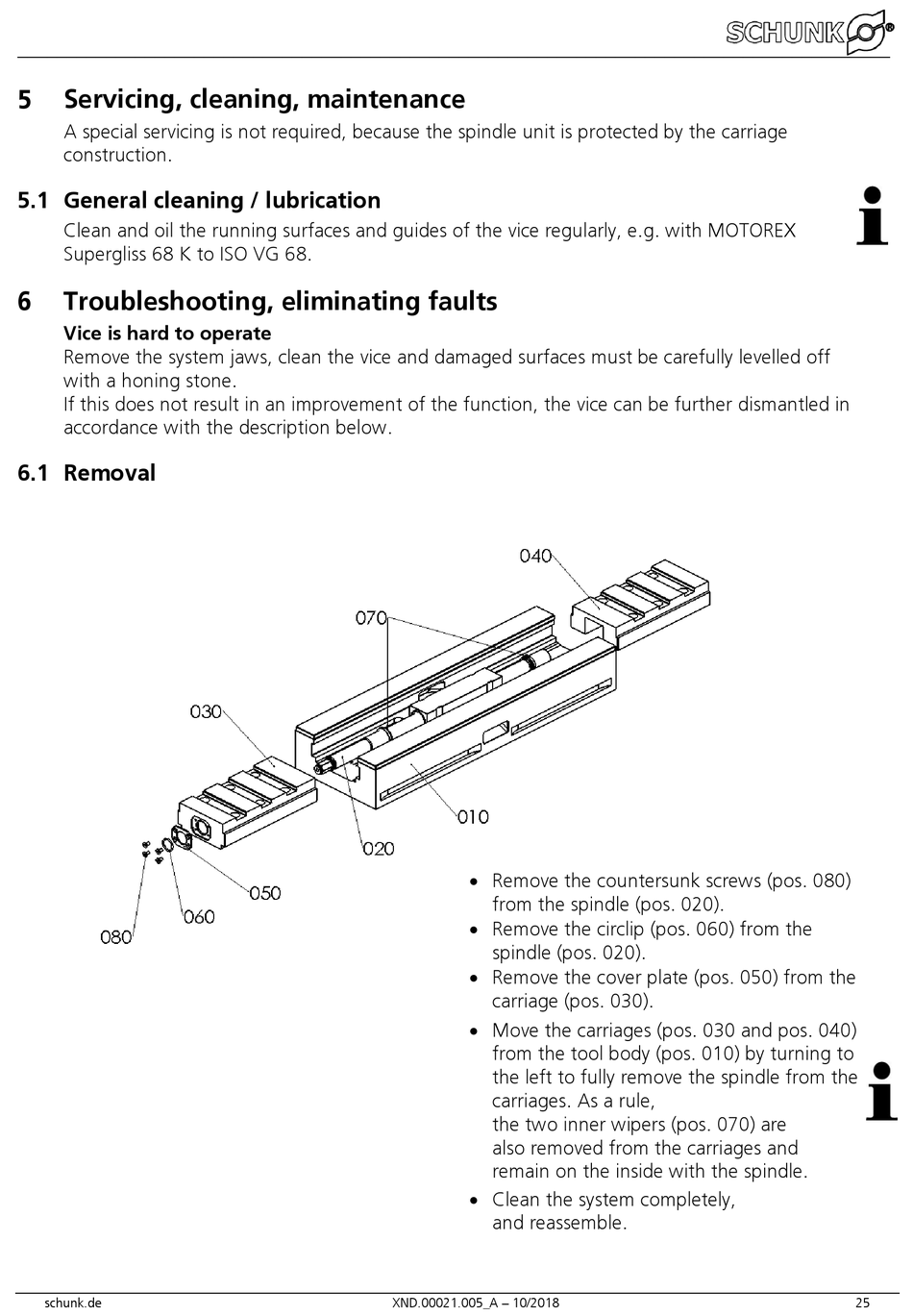

6.1 Removal

schunk.de
 Remove the countersunk screws (pos. 080)
from the spindle (pos. 020).
 Remove the circlip (pos. 060) from the
spindle (pos. 020).
 Remove the cover plate (pos. 050) from the
carriage (pos. 030).
 Move the carriages (pos. 030 and pos. 040)
from the tool body (pos. 010) by turning to
the left to fully remove the spindle from the
carriages. As a rule,
the two inner wipers (pos. 070) are
also removed from the carriages and
remain on the inside with the spindle.
 Clean the system completely,
and reassemble.
XND.00021.005_A – 10/2018 25
