Fronius CrashBox/i Montageanleitung Seite 12

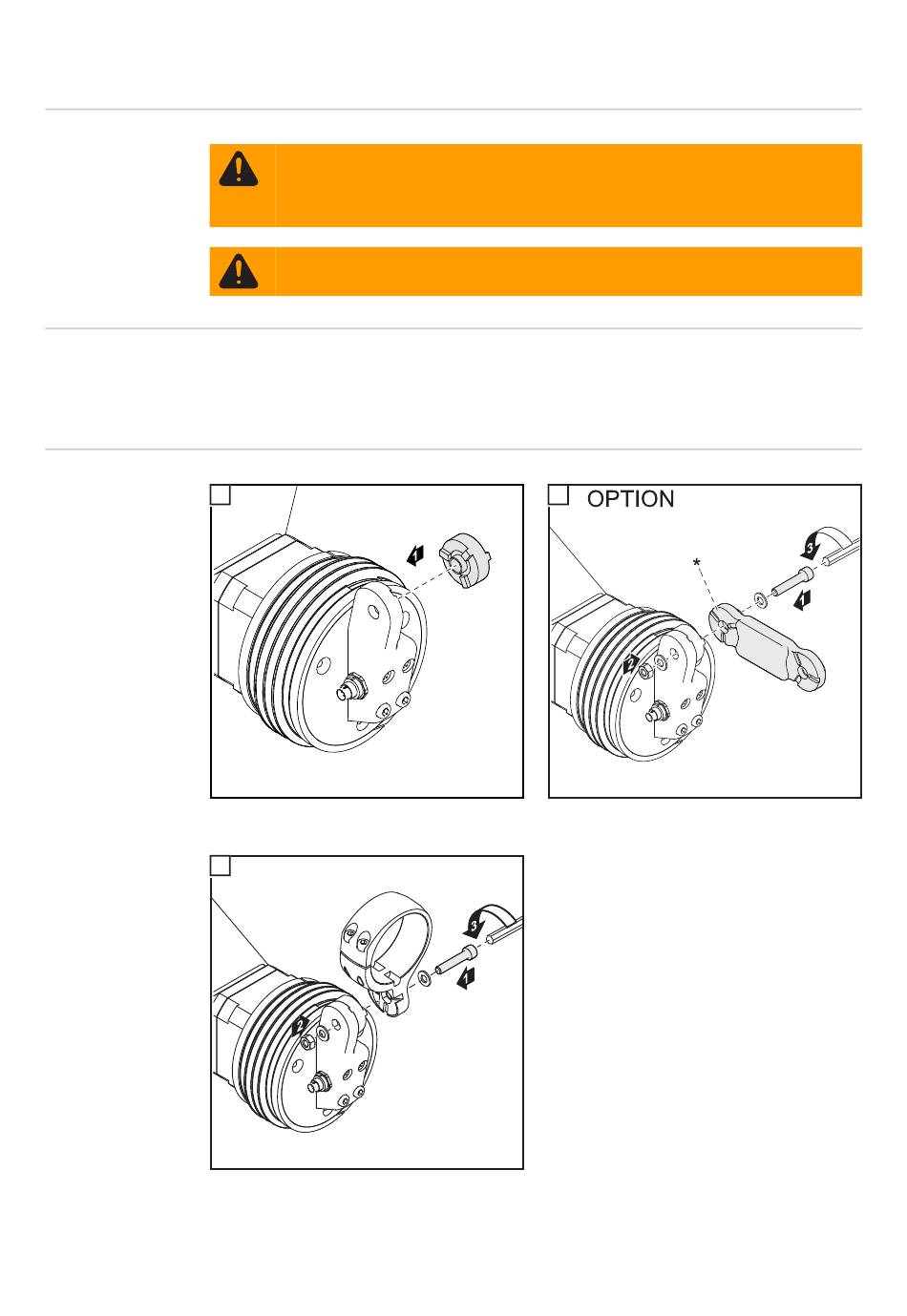

Fitting the clamp system
Safety
Special tilt angle The positioning of the welding torch in relation to the workpiece is divided into fixed angles
for the welding by the torque angle gauge. Special angles are available on request.
torch
Fitting the clamp
1
system
3
10
WARNING! Work that is carried out incorrectly can cause serious injury and dam-
age. The following activities must only be carried out by trained and qualified per-
sonnel. The system component operating instructions, particularly the chapter
entitled "Safety rules", must be observed.
WARNING! Falling equipment can cause serious injury and damage. Check all
screw connections are tight after fitting.
2
* Optional: Fitting a clamp extension
11,3 Nm
11,3 Nm
