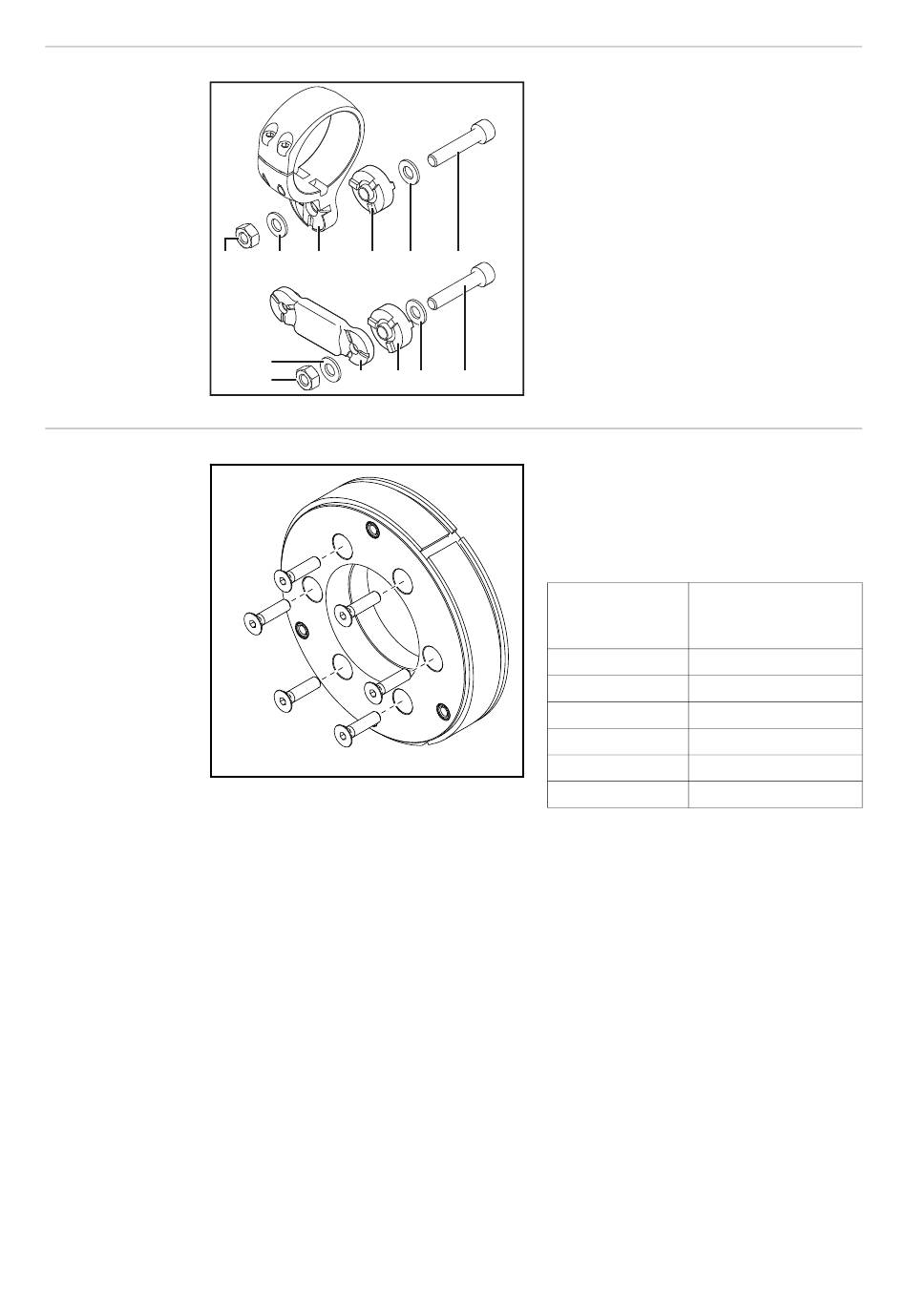

Clamp system
scope of supply
and options
(1)
Also required for
fitting to robot
arm
8
(2)
(3)
(4)
(2)
(7)
(6)
(8)
(9) (7)
(1)
M8 hexagon nut
(2)
M8 washer
(3)
Clamp
(4)
Torque angle gauge
(5)
M8 x 40 mm Allen screw
Optional (material for extension):
(6)
M8 hexagon nut
(5)
(7)
M8 washer
(8)
Extension
(9)
Torque angle gauge
(10)
M8 x 40 mm screw
(10)
Depending on the particular robot:
-
1 x robot flange with screws
Robot flange as per price list
Observe torques:
Thread dimen-
sion
M4
M5
M6
M8
M10
M12
Max. tightening torque
for screws of strength
class 8.8
3.3 Nm
6.5 Nm
11.3 Nm
27.3 Nm
54 Nm
93 Nm
