TORCH SETUP (MT-70)
Refer to the charts on the side of the machine to choose the appropriate consumable.
Torch set-up
- Plug the torch into the appropriate connector
- No machine settings adjustment required
For cutting:
One caliber of consumables is available:
- small work with the nozzle 20-50 A marked «45 A»
TORCH SETUP (TPT-40)
The torches are cooled with ambient air and do not require any special cooling.
1 - CONSUMABLES LIFE CYCLE
The replacement frequency of the Plasma's consumables depends on several factors:
• The metal thickness.
• The average cutting time
• The air quality (presence of oil, humidity or other contaminants).
• The metal piercing or the cut from the edge.
• The adequate distance between the torch and the part when cutting.
In normal conditions :
- During manual cutting, the electrode wears out first.
Torch consumables :
040236
Nozzle

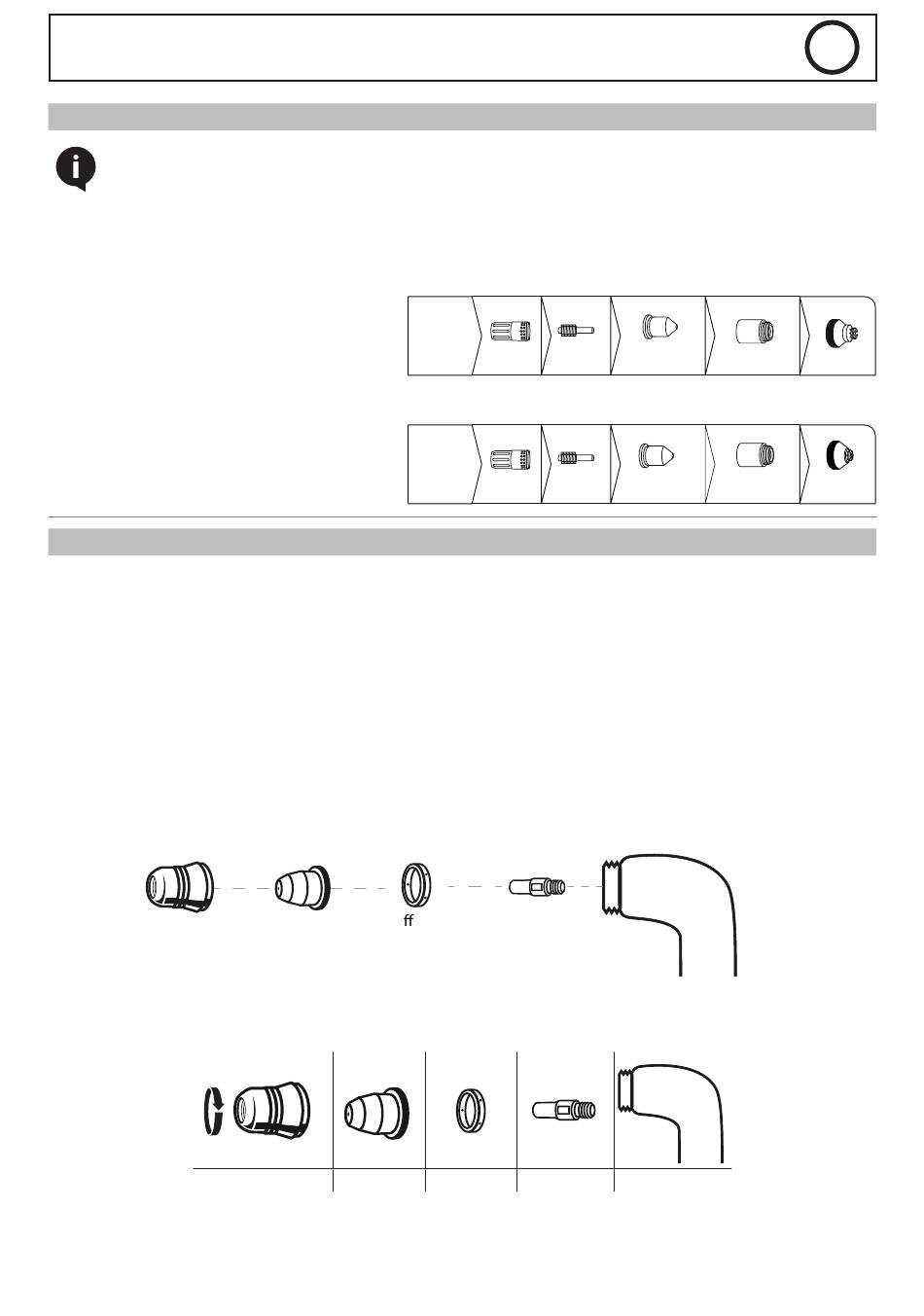

2 - INSTALLATION OF THE TORCH CONSUMABLES :
Unplug the unit before changing consumables.
To use the torch, a complete set of consumables must be installed in the correct order: electrode, diffuser, tip and nozzle.
18
IMS CUTTER 45 CT
040175
040212
Tip Di user
Nozzle Tip
Manual cutting
20-50 A
037564
037557
(x 5)
Automated cutting
20-50 A
037564
037557
(x 5)
040168
Electrode
Diffuser Electrode
EN
037571
(x 5) 037601
037571
037601
(x 5)
4 m
Torch
037625
037649
