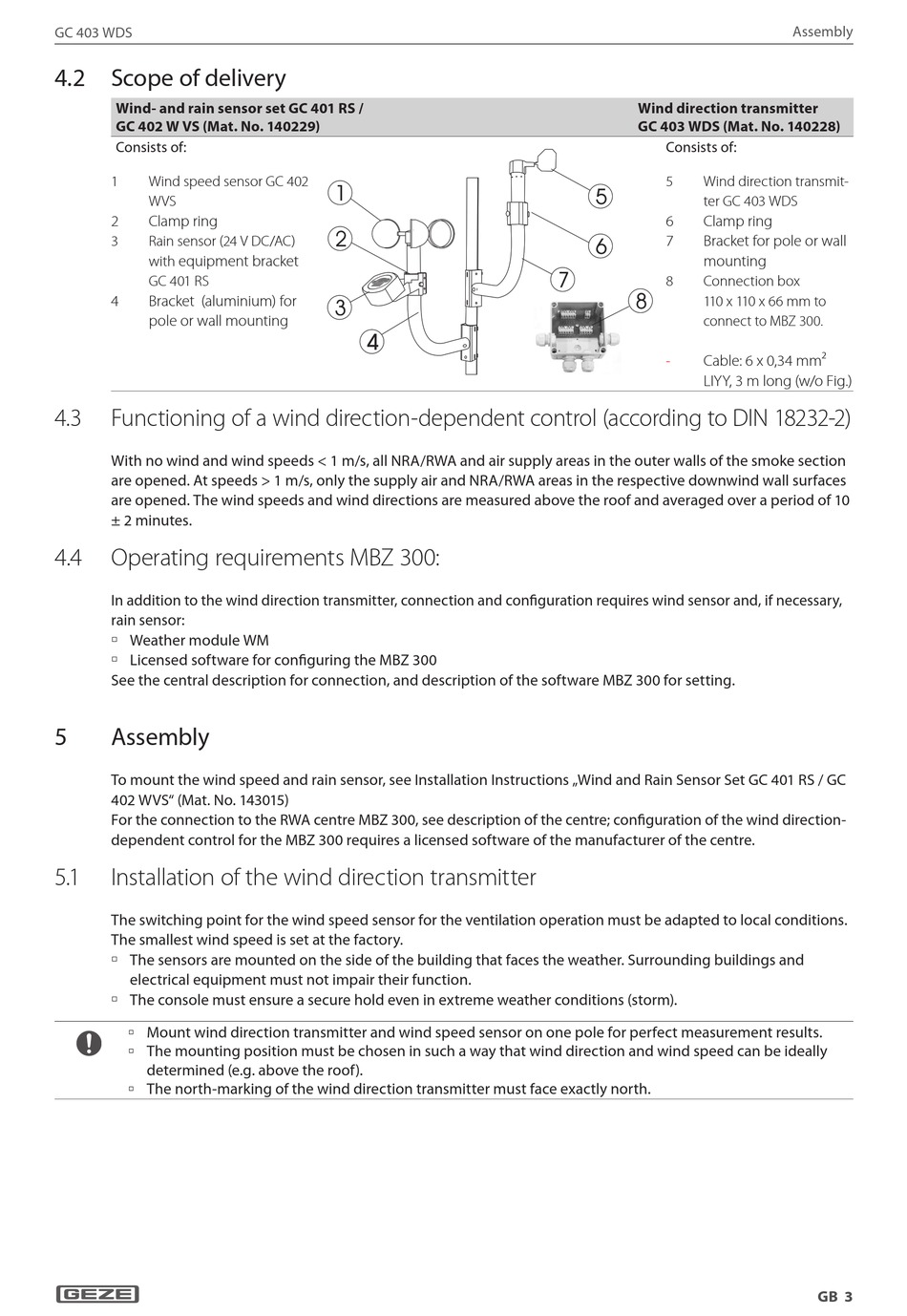

Scope of delivery

Wind- and rain sensor set GC 401 RS /
GC 402 W VS (Mat. No. 140229)
Consists of:
1 Wind speed sensor GC 402
WVS
2 Clamp ring
3 Rain sensor (24 V DC/AC)
equipment bracket
with
GC 401 RS
4 Bracket (aluminium) for
pole or wall mounting
4.3 Functioning of a wind direction-dependent control (according to DIN 18232-2)
With no wind and wind speeds < 1 m/s, all NRA/RWA and air supply areas in the outer walls of the smoke section
are opened. At speeds > 1 m/s, only the supply air and NRA/RWA areas in the respective downwind wall surfaces
are opened. The wind speeds and wind directions are measured above the roof and averaged over a period of 10
± 2 minutes.
4.4 Operating requirements MBZ 300:
In addition to the wind direction transmitter, connection and configuration requires wind sensor and, if necessary,
rain sensor:
Weather module WM
à
Licensed software for configuring the MBZ 300
à
See the central description for connection, and description of the software MBZ 300 for setting.
5 Assembly
To mount the wind speed and rain sensor, see Installation Instructions „Wind and Rain Sensor Set GC 401 RS / GC
402 WVS" (Mat. No. 143015)
For the connection to the RWA centre MBZ 300, see description of the centre; configuration of the wind direction-
dependent control for the MBZ 300 requires a licensed software of the manufacturer of the centre.
5. 1 Installation of the wind direction transmitter
The switching point for the wind speed sensor for the ventilation operation must be adapted to local conditions.
The smallest wind speed is set at the factory.
The sensors are mounted on the side of the building that faces the weather. Surrounding buildings and
à
electrical equipment must not impair their function.
The console must ensure a secure hold even in extreme weather conditions (storm).
à
Mount wind direction transmitter and wind speed sensor on one pole for perfect measurement results.
à
The mounting position must be chosen in such a way that wind direction and wind speed can be ideally
à
determined (e.g. above the roof).
The north-marking of the wind direction transmitter must face exactly north.
à
Assembly
Wind direction transmitter
GC 403 WDS (Mat. No. 140228)
Consists of:
5 Wind direction transmit-
ter GC 403 WDS
6 Clamp ring
7 Bracket for pole or wall
mounting
8 Connection box
110 x 110 x 66 mm to
connect to MBZ 300.
Cable: 6 x 0,34 mm²
-
LIYY, 3 m long (w/o Fig.)
