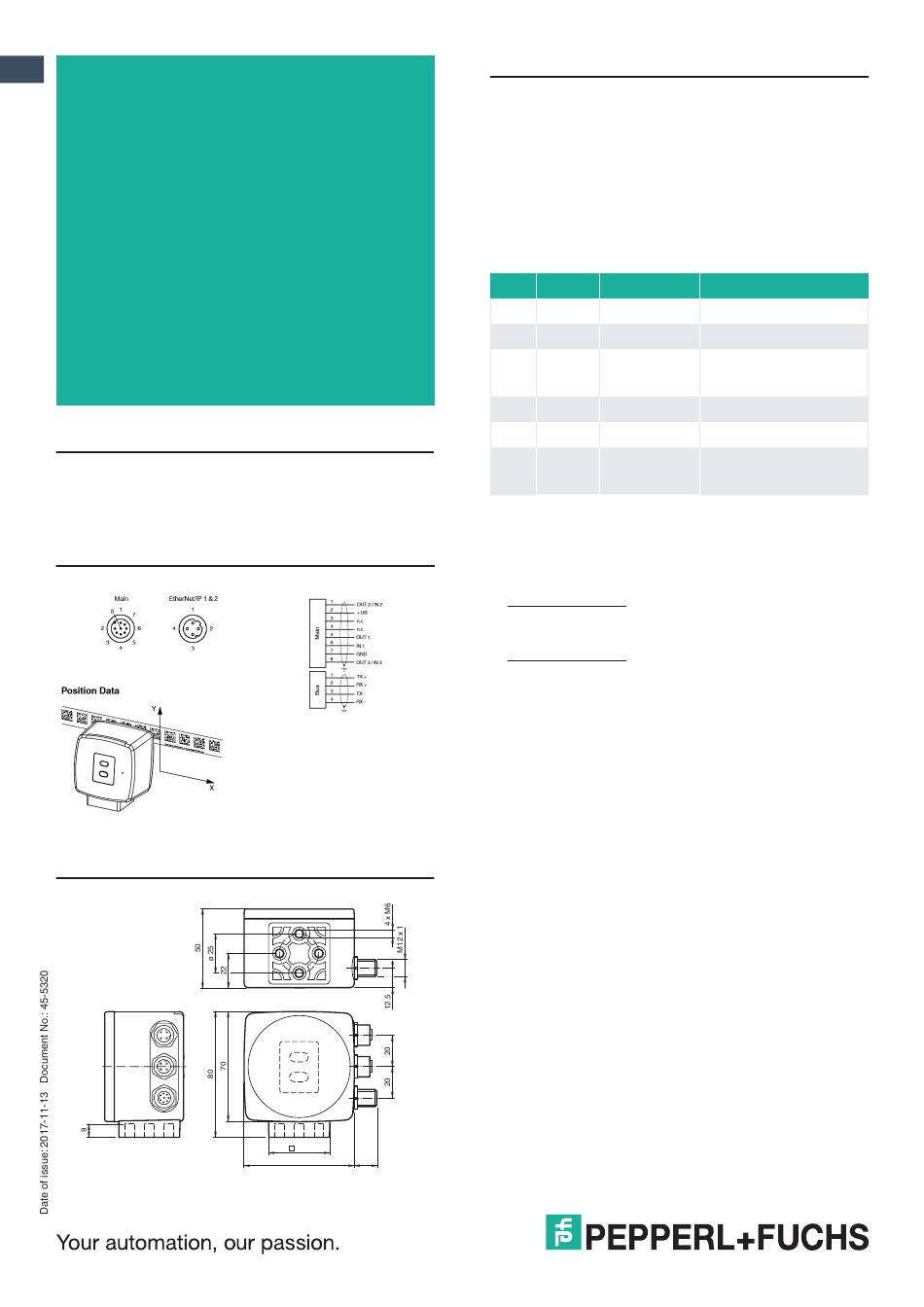

Pepperl+Fuchs PXV Kurzanleitung Seite 2

EN
Quick Start Guide
Optical reading head PXV
EtherNet/IP interface
Technical data
Electrical specifications
Operating voltage:
Non-load supply current:
Power consumption:
Electrical connection
Dimensions
Pepperl+Fuchs GmbH
Lilienthalstraße 200 • 68307 Mannheim • Germany • Telefon: +49 621 776-0 • Telefax: +49 621 776-1000 • www.pepperl-fuchs.com • info@de.pepperl-fuchs.com
U 15 ... 30 V DC, PELV
B
I max. 400 mA
0
P max. 6 W
0
1
2
38.5
70 14.5
Mounting and Commissioning
Mounting
Mount the reading head such that its optical surface captures the optimal read
distance to the code band (see Technical Data). The stability of the mounting
and the guidance of the vehicle must be provided such that the depth of field of
the reading head is not closed during operation.
All reading heads can be optimally customized by parameterization for specific
requirements.
Displays and Controls
The reading head allows visual function check and fast diagnosis with 7
indicator LEDs. The reading head has 2 buttons on the reverse of the device to
activate the alignment aid and parameterization mode.
LEDs
LED Color Label
1 green BUS LINK
2 yellow BUS ACTIVITY
3 red/ PWR/ADJ
green SYSERR/NO
CODE
4 yellow OUT1/ADJ Y
5 yellow OUT2/ADJ Z
6 red/ INTERNAL
green/ DIAGNOSTIC
yellow
Alignment aid for the Y and Z alignment coordinates
The activation of the alignment aid is only possible within 10 minutes of swit-
ching on the reading head. The switchover from normal operation to
alignment aid operating mode is via button 1 on the reverse of the reading head.
Press the button 1 for longer than 2 s. LED3 flashes green for a recogni-
zed code band. LED3 flashes red for an unrecognized code band.
Z alignment coordinate: If the distance of the camera to the code band
too small, the yellow LED5 lights up. If the distance of the camera to the
code band too large, the yellow LED5 lights up. Within the target range,
the yellow LED5 flashes at the same time as the green LED3.
Y alignment coordinate: If the optical axis of the camera is too deep in
relation to the middle of the code band, the yellow LED4 lights up. If the
optical axis is too high, the yellow LED4 extinguishes. Within the target
range, the yellow LED4 flashes at the same time as the green LED3.
A short press on button 1 ends the alignment aid and the reading head
changes to normal operation.
Meening
Communication status
Data transfer
Code recognized/ not recogni-
zed, Error
Output 1, Alignment aid Y
Output 2, Alignment aid Z
Internal diagnostics
