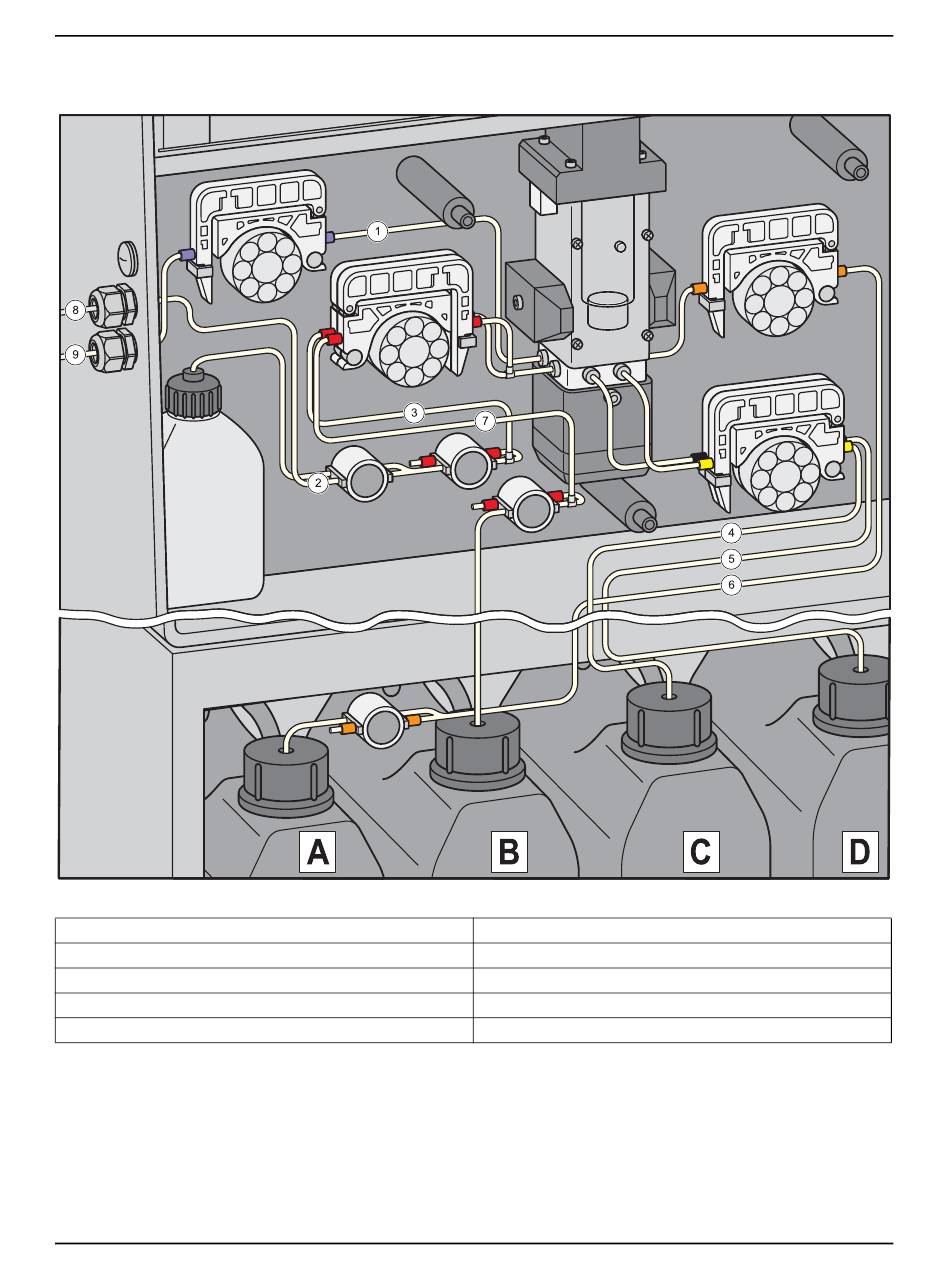

Plan of hose system
1 Discharge hose
2 Valve hose
3 Sample metering hose
4 Reagent C metering hose
5 Reagent D metering hose
Metering and valve hoses
All metering and valve hoses for a piece of equipment must be identifiable by means of
set colors.
English
Figure 2 Plan of hose system
6 Reagent A metering hose
7 Reagent B metering hose
8 Sample infeed
9 Discharge
