LaserLiner AutoCross-Laser ACL 4C Bedienungsanleitung Seite 11

A
B
D
G
Inserting the batteries ACL 4C and Laserreceiver RX 51 (optional):
Open the battery compartment (9, I) and insert the batteries in accordance
with the installation symbols, ensuring the correct polarity. Close the cover.
Low battery charge: Replace the ACL 4C batteries when the illuminated vial
(8) flashes.
Aligning the ACL 4C:
For approximate adjustment of the lasers, the top part of the ACL 4C can be
turned on the base. Precise positioning can then be done with the precision
adjustment knob (3). The adjustable feet (6) allow the device to be positioned
on sloping surfaces.
Switching on the ACL 4C:
Turn the ON/OFF switch (2) to the right, thereby releasing the transport
securing device. The lasers can now be individually activated via buttons 11,
12. To obtain maximum visibility of the laser line, the hand receiver mode
must be switched off (button 10). In this case, it is not possible to work with
the laser receiver.
Note:
If the device is too far off the horizontal (more than 3°), the lasers will
switch off. Align the device using the adjustable feet (6) or place on a more
level surface. The round vial (8) is provided as an aid to alignment.

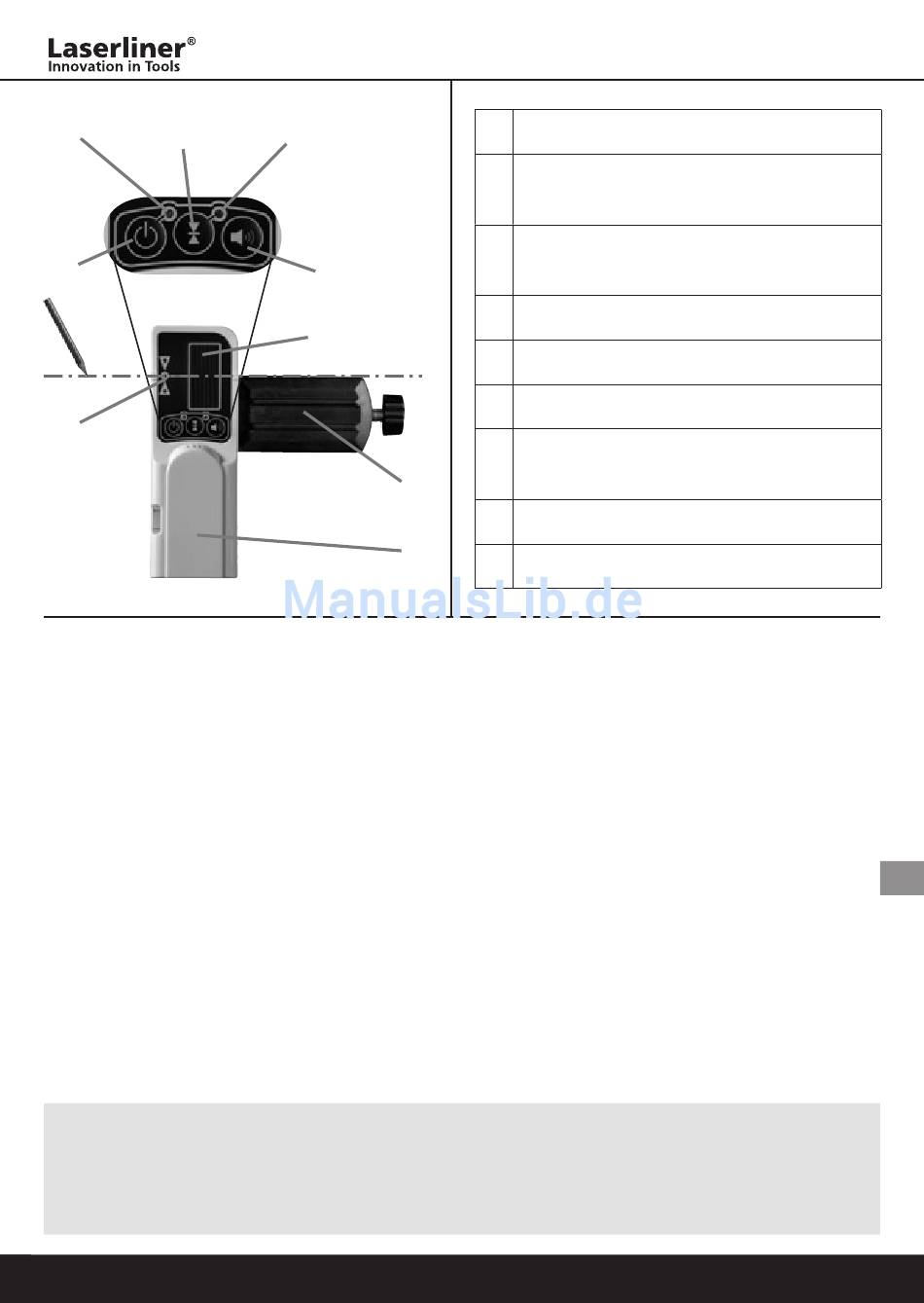

AutoCross-Laser ACL 4C / ACL 4C RX
C
E
F
h
i
ENGLISh
A Power indicator
B Switch accuracy
short range / long range
C LED for accuracy
green / red
D ON / OFF switch
E Sound ON / OFF
F Receiver field for laser beam
G LED's for Laserindication (front,
side, backside)
h Universal mount
I
I Battery compartment (backside)
11
