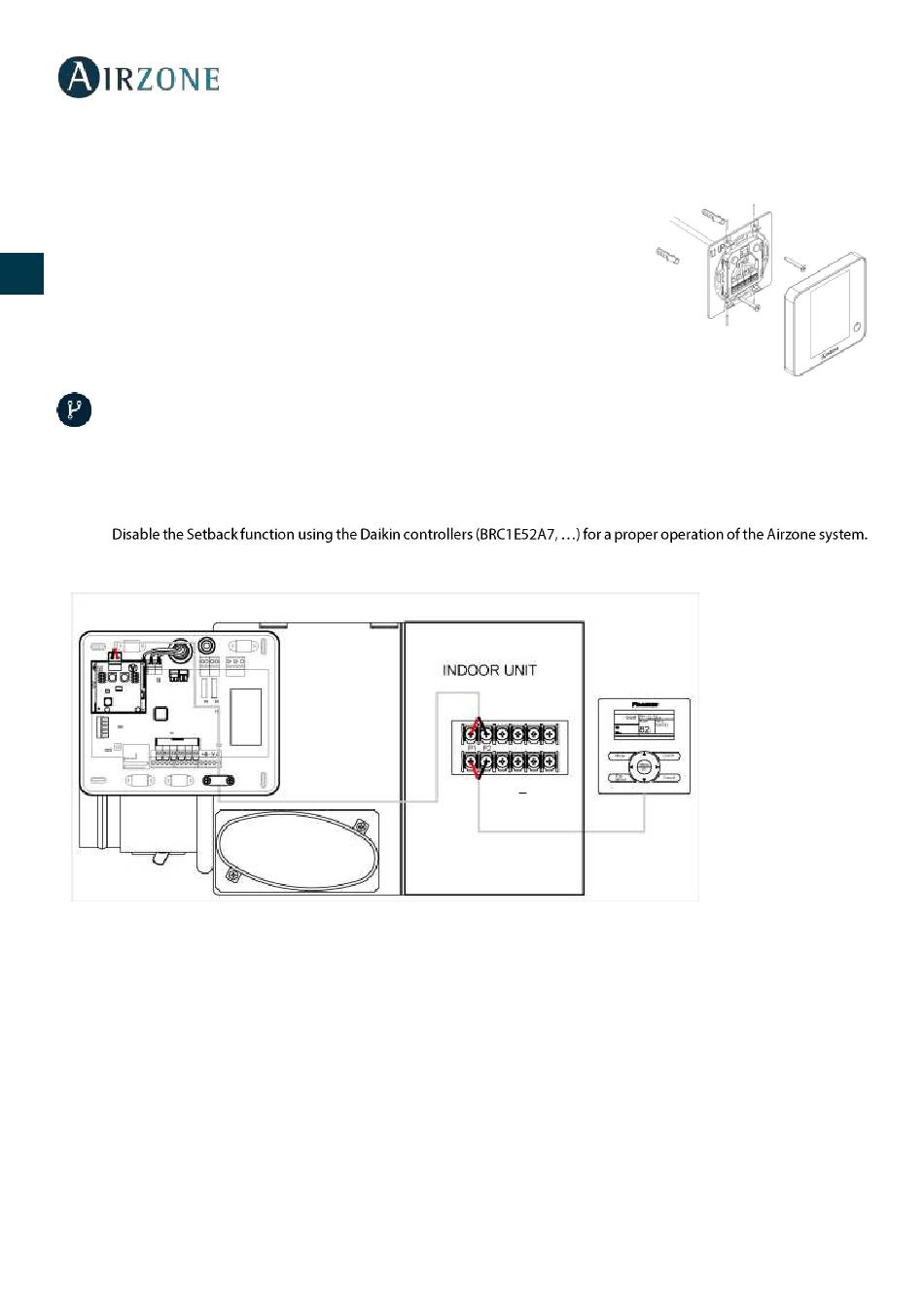

THERMOSTAT ASSEMBLY (AZCE6BLUEFACEC / AZCE6THINKR / AZCE6LITER)

Airzone thermostats are mounted on the wall through a support. It is recommended not to locate it more than 40 meters away
from the main control board. To fix it to the wall, follow these steps:
•
Separate the back part of the thermostat from the wall support and make all the
ES
connections (AZCE6BLUEFACEC) or insert the CR2450 button battery
(AZCE6THINKR and AZCE6LITER).
EN
•
Fix the back part of the thermostat to the wall.
•
Place the display on the support once it is fixed.
FR
•
Place the anti-theft rods for additional support (optional).
IT

INDOOR UNIT CONNECTION

PT
1) Disconnect the power supply of the Daikin indoor unit and the Airzone system.
2) Find the P1 P2 connection of the Daikin indoor unit (where the thermostat is connected).
DE
3) Connect the Airzone Gateway to the P1 P2 port of the Daikin unit using the cable supplied by Airzone.
4) Power the Daikin indoor unit and the Airzone system. Check the gateway LEDs (see self-diagnosis section).
5)
Service Settings > Field Settings > 1e-2-01. If you have any doubt, please check the Instruction manual Daikin
BRC1E52A7.
36
P1 Red
P2 - Black
