CONTROL PANEL FUNCTIONING

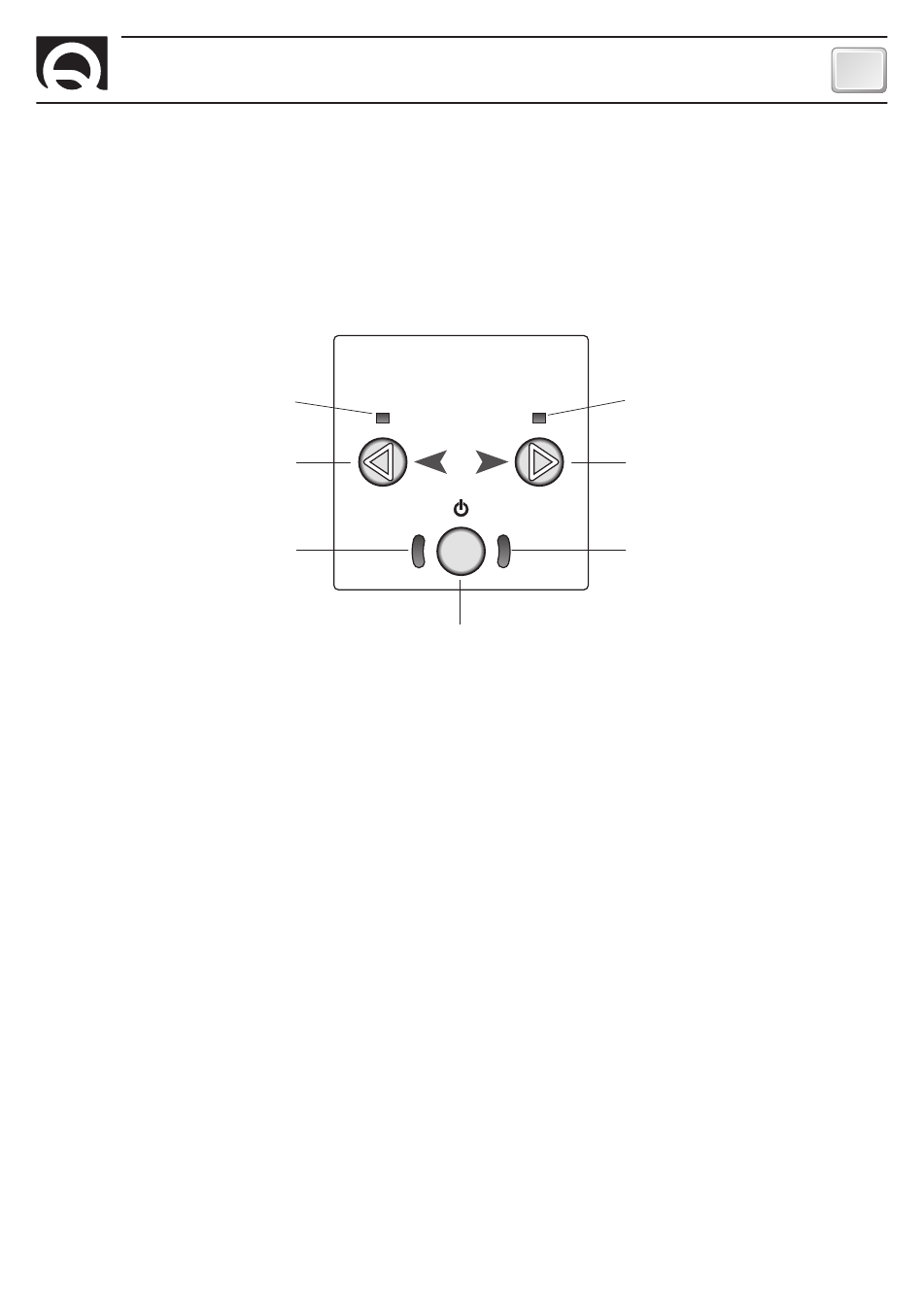

The user interface of the TCD 1022 control panel is composed of one enablement button, 2 direction
buttons, 2 enablement leds and 2 direction leds.
LEFT DIRECTION LED
LEFT DIRECTION BUTTON
ENABLEMENT LED
Enablement button
The button enables or disables the control panel.
Direction buttons
The right direction button moves the bow or the stern of the boat to the right depending on which thruster is controlled.
The left direction button moves the bow or the stern of the boat to the left depending on which thruster is controlled.
Enablement leds
The enablement leds indicate the enabled/disabled state of the control panel.
Direction leds
The direction leds indicate the movement of the boat to the right or left.
All leds are also used to signal any errors or problems.
TCD1022 E / 1042 E - REV005A
TCD 1022
ENABLEMENT BUTTON

OPERATING

RIGHT DIRECTION LED
RIGHT DIRECTION BUTTON
ENABLEMENT LED
