DMX512 CONTROL

DMX Controller
Program
Chase32 Step100

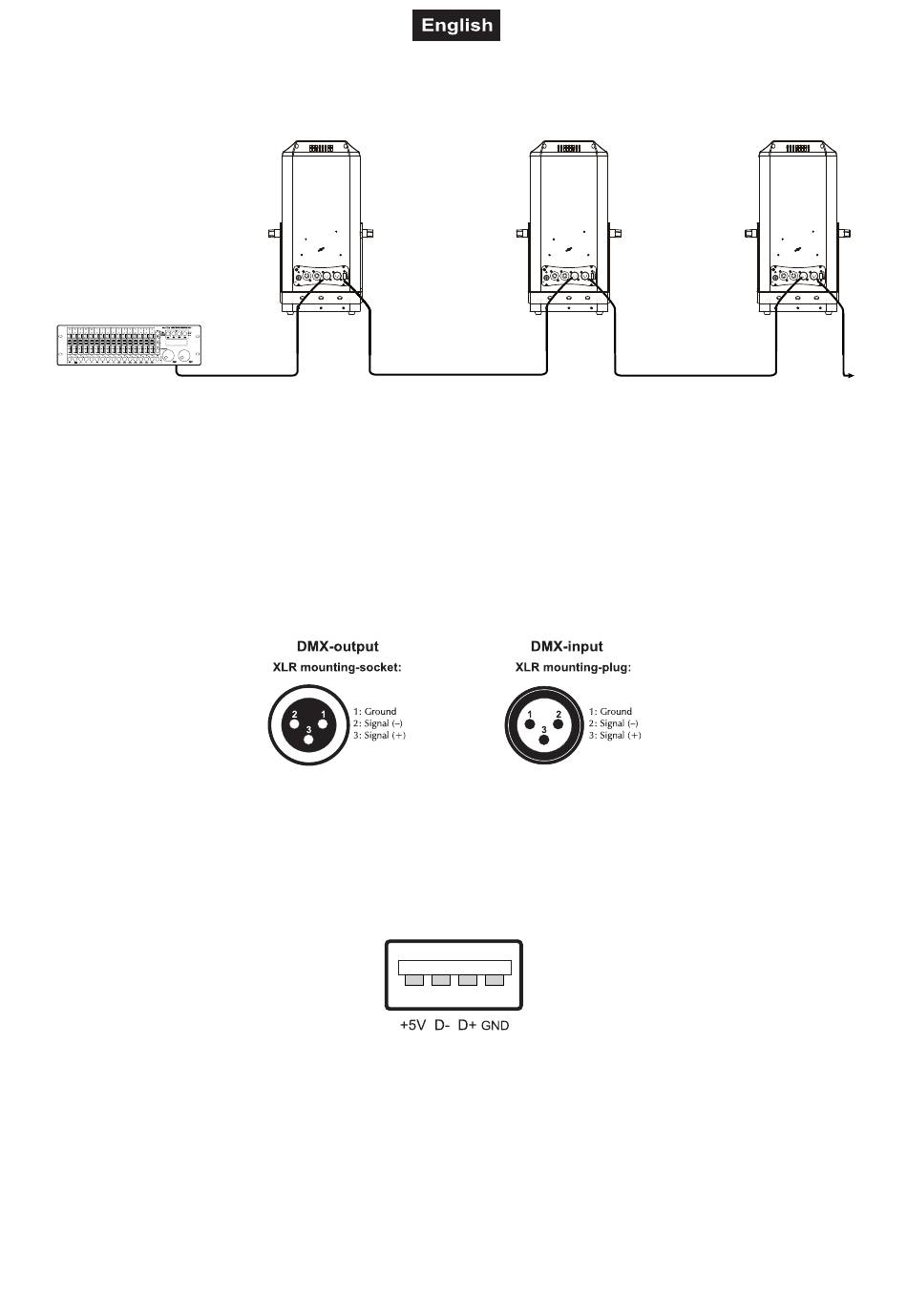

A DMX512 data link is required in order to control the device via DMX. The device provides 3-pin XLR
connectors for DMX connection.
1 Connect the output of your DMX controller to the DMX input DMX IN of the device with a DMX cable.
2 Connect the DMX output DMX OUT of the device to the DMX input of the next unit in the chain. Always
connect one output to the input of the next unit until all units are connected.
3 At the last unit, the DMX cable has to be terminated. Plug the terminator with a 120 Ω resistor between
Signal (–) and Signal (+) in the DMX output of the last unit.
4 If the cable length exceeds 300 m or the number of DMX devices is greater than 32, it is recommended
to insert a DMX level amplifier to ensure proper data transmission.
XLR connection:

Wireless DMX transmission with QuickDMX

The device features an alternative DMX input for a QuickDMX receiver (sold separately). CRMX and WDMX
receivers are compatible and can also be used. The connector allows a DMX control signal to be transmitted
wirelessly to the device, eliminating the need for complex wiring to the DMX controller. The connector is
designed as a USB port which provides the required 5 V operating voltage for the receiver.
USB port connection:
Device 1
Starting Address 1
SAFETY EYELET
100-240V~
50/60 Hz
F5A/250V 175W
POWER IN POWER OUT DMX IN DMX OUT
24/32
Device 2
Starting Address 14
SAFETY EYELET
100-240V~
50/60 Hz
F5A/250V 175W
POWER IN POWER OUT DMX IN DMX OUT
Device 3
Starting Address 27
SAFETY EYELET
100-240V~
50/60 Hz
F5A/250V 175W
POWER IN POWER OUT DMX IN DMX OUT
Version 1.0
