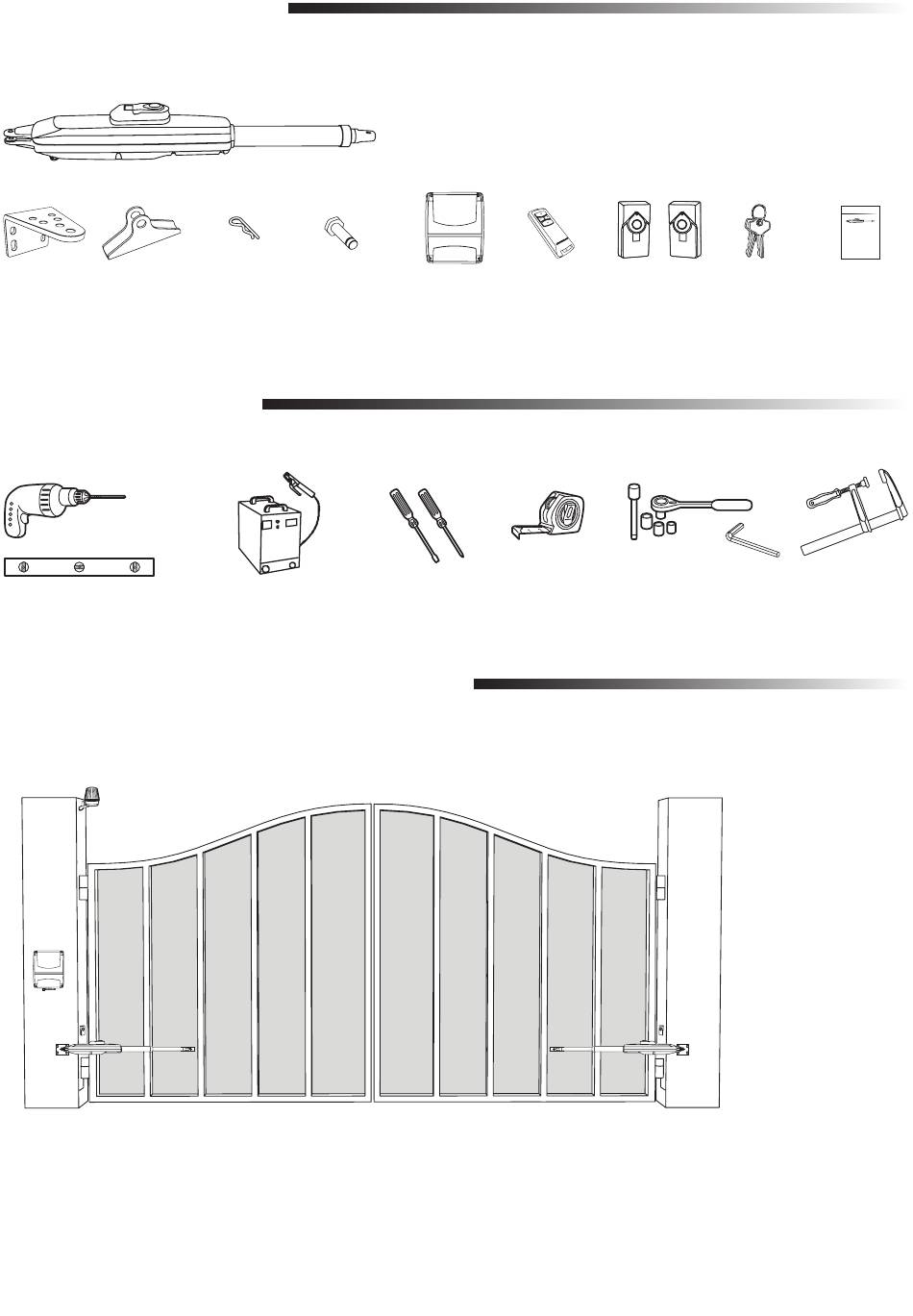

2. DELIVERY SCOPE

CHLA250EVC (2 x motor units)
Post Mounting Gate Mounting
Bracket (2x) Bracket (2x)

3. TOOLS NEEDED

4. OVERVIEW OF GATE OPERATOR

7
3
6
1
4
Pin (4x) Clevis Pin (4x)
5
Control Box Remote
Control (2x)
5
4
Photocell Release Key (4x)
13, 14 mm
5 mm
1. Motor 1
2. Motor 2
3. Control board
4. Post bracket
5. Gate bracket
6. Infrared photocells
7. Flashing lamp
6
2
4
