SERVICE

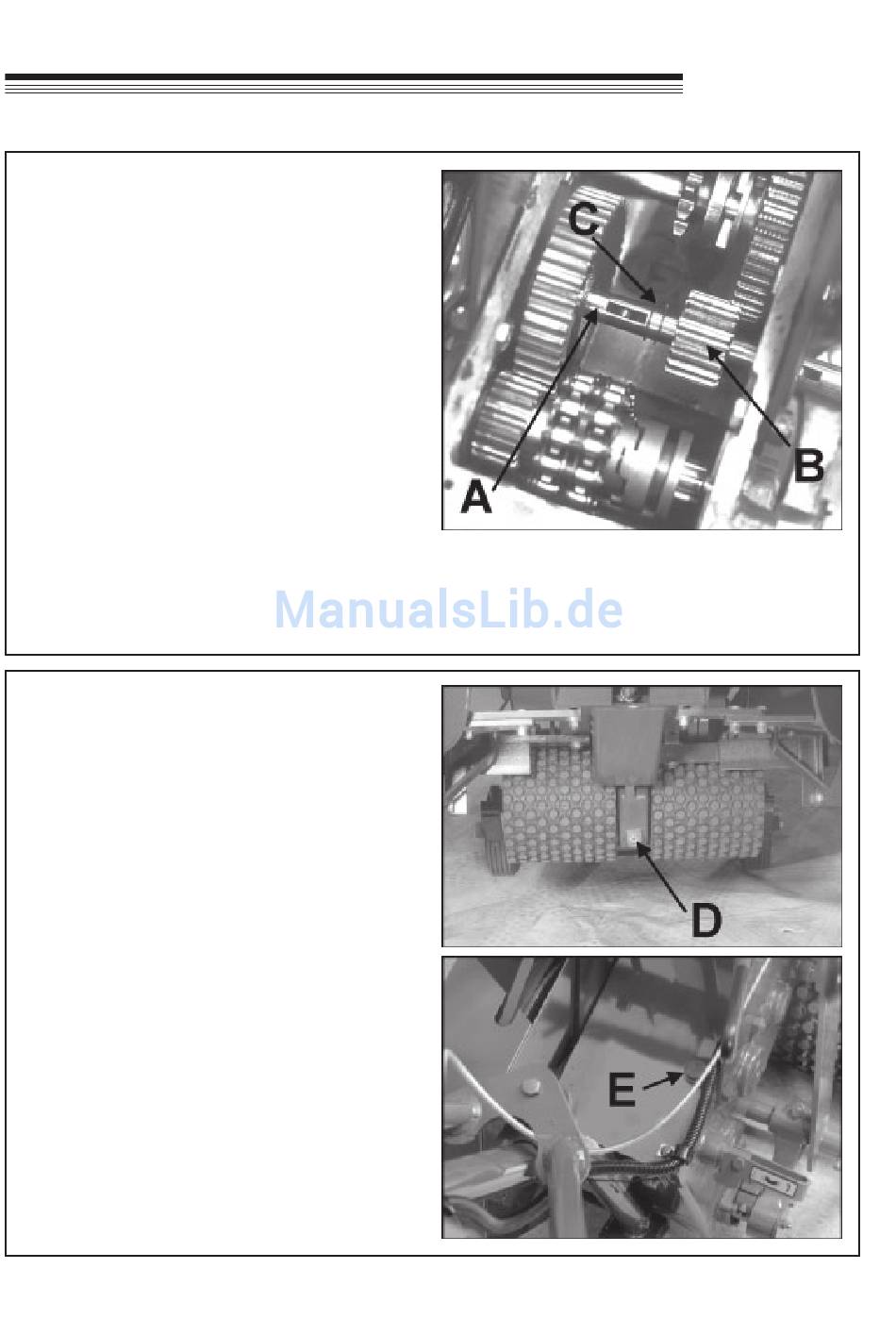

IDLER GEAR SHAFT
1. Remove belt guards.
2. Follow steps 2 thru 6 in drive chain removal
section.
3. Remove plug from right side of unit.
4. Remove snap ring C from groove by small gear
B to left end of shaft A.
5. Move small gear B to left side (from operators
position) of case.
6. Move shaft A out right side of case until large
gear clears shaft for removal.
7. Remove key from shaft and slide snap rings C
off end of shaft.
8. Small gear B will slide off as shaft is removed
from gear case.
LUBRICATION
The gear case is initially filled with 3 1/2 pints
(1.7 L) of EP 140 Gear Lube. Do not add to this
amount unless oil is changed or lost through
leakage. Gear case drain plug D.
On all pressurized lubrication fittings use a good
grade of Lithium Based lubricant.
The Jr. Sodcutter has 6 lubrication fittings.
Lubricate pitman arms (1 each side) and side
arms (1 each side) after every 4 hours of use.
Lubricate side arm pivots (1 each side - top of
unit) after every 8 hours of use.
Check gear case lubricant level using dipstick E
located on top of gear case. Check lube with
dipstick sitting on threads, do not screw in.
GB-16
9. Assemble in reverse procedure. Apply 3M
Scotch Grip 847 adhesive or equivalent to gear
case cover before installation.
Jr.
Sodcutter
