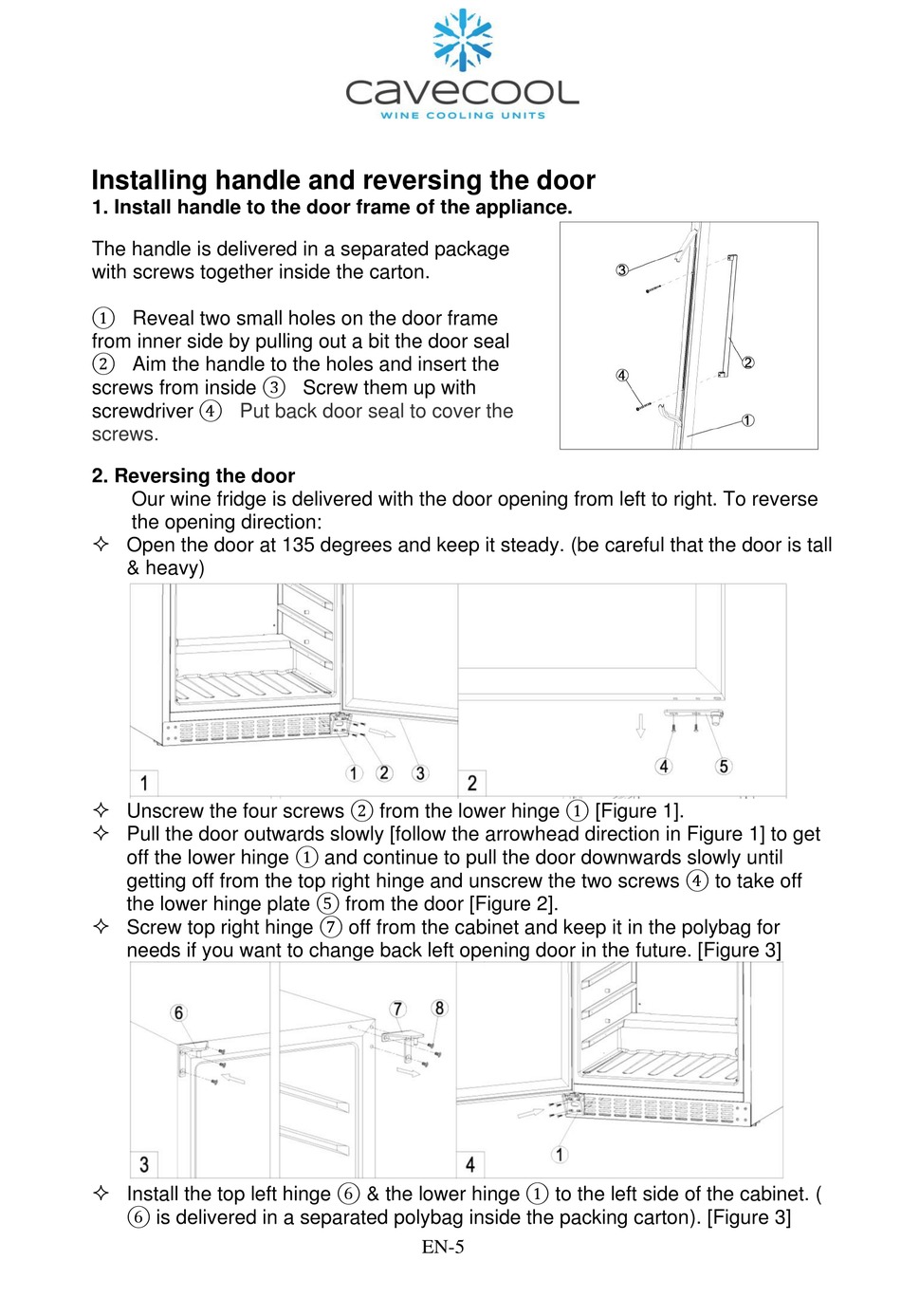

Installing handle and reversing the door
1. Install handle to the door frame of the appliance.
The handle is delivered in a separated package
with screws together inside the carton.
① Reveal two small holes on the door frame
from inner side by pulling out a bit the door seal
② Aim the handle to the holes and insert the
screws from inside ③ Screw them up with
screwdriver ④
Put back door seal to cover the
screws.
2. Reversing the door
Our wine fridge is delivered with the door opening from left to right. To reverse
the opening direction:
 Open the door at 135 degrees and keep it steady. (be careful that the door is tall
& heavy)
 Unscrew the four screws ② from the lower hinge ① [Figure 1].
 Pull the door outwards slowly [follow the arrowhead direction in Figure 1] to get
off the lower hinge ① and continue to pull the door downwards slowly until
getting off from the top right hinge and unscrew the two screws ④ to take off
the lower hinge plate ⑤ from the door [Figure 2].
 Screw top right hinge ⑦ off from the cabinet and keep it in the polybag for
needs if you want to change back left opening door in the future. [Figure 3]
 Install the top left hinge ⑥ & the lower hinge ① to the left side of the cabinet. (
⑥ is delivered in a separated polybag inside the packing carton). [Figure 3]
EN-5
