EuroLite LED KLS-800 TCL DMX KOMPAKT-LICHTSET Schnellstart

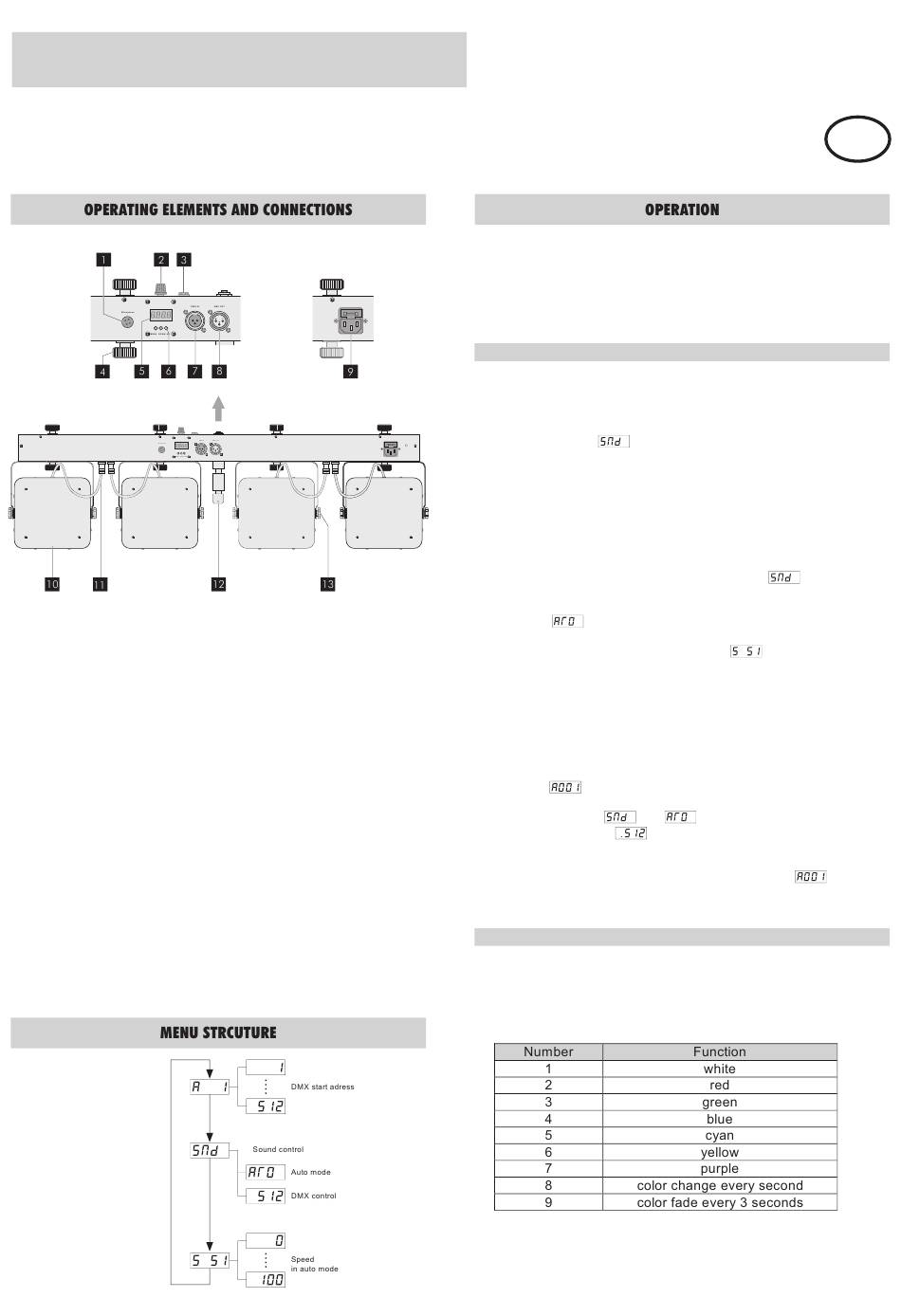

QUICK START
LED KLS-800 TCL DMX LIGHT SET
1 Microphone for sound-controlled operation
2 Sensitivity control for the microphone
3 Connector for the foot pedal FP-1
4 Fixation screw
5 LED display
6 Control buttons
• button MENU to call the menu items
• button DOWN to switch between sound control and automatic mode
• button UP to switch to DMX operation
• buttons UP and DOWN to set the speed in automatic mode and to
set the DMX starting address
7 Jack DMX IN
DMX signal input (3-pin XLR) for connecting a controller
8 Jack DMX OUT
DMX signal input (3-pin XLR) for connection to the DMX input of
another light effect unit
9 Power input with fuse holder
Used to plug the supplied power cord in. Only replace the fuse when
the device is disconnected from mains. Only use fuses of the same
rating and power. The correct value is specified on the device.
10 LED spot 1 to 4
11 Connection cable for the control unit
12 TV pin for placing on a stand
13 Fixation screw
eurolite eurolite
After connecting the unit to the mains it requires a short initialization
process and is then ready for operation. It may be controlled via DMX
controller or a foot pedal. Alternatively, it can be operated without
external control in sound-controlled mode or in automatic mode with
processor-controlled color changes. The operating modes can be
selected by means of the display and the control buttons.
Operation without external control
Sound control
1. Via the microphone, which is integrated in the control unit, the rhythm
of the music (sufficient bass provided) can be perfectly reproduced
by the light set. To select sound control press the button MENU so
many times until is indicated in the display.
2. Adjust the microphone sensitivity to the volume of the music with the
control SENSIVITY. If the volume of the music is changed
afterwards, the microphone sensitivity must be readjusted
accordingly. The LEDs do no light if the volume is too low or if there is
no sufficient bass beat.
Automatic mode
1. To select the automatic mode with processor-controlled color
changes, press the button so many times until
the display.
2. Press the button DOWN to switch to automatic mode. The display
indicates .
3. Once again, press the button MENU to activate menu item speed.
The display indicates the default value
and DOWN to adjust the desired speed in automatic mode from high
(S 00) to low (S 100).
Master/slave operation with several light sets
1. When several light sets are interconnected, the slave units can be
synchronized and controlled with the master unit. For this select the
desired operating mode (music control or automatic mode) at the
master unit and set each slave unit to the same DMX starting
address: . Finally, switch each slave unit to the DMX operating
mode. For this press the button MENU so many times until the
display indicates
display will indicate
operate in sync.
2. When the master unit is to be controlled with the foot pedal FP-1, also
set each slave unit to the DMX starting address
switch to the DMX operating mode. The interconnected light sets can
now be operated in sync with the foot pedal.
Remote control with the foot pedal FP-1
The foot pedal available as accessory allows convenient control of the
light set.
1. Press pedal 1 PRESETS repeatedly for the desired function. One in
seven preset colors or color change and color fade of the colors can
be selected.
2. Press pedal 2 SOUND CONTROL to select sound control.
3. Press pedal 3 FREEZE to select the freeze function. Then the
current color is kept.
4. Press pedal 4 BLACK OUT to switch off all LEDs.
5. After switching the light set of and on again, the function selected last
is activated.
is indicated in
. Use the buttons UP
or . Then press the button UP. The
and the interconnected light sets will now
®
EN
and then
