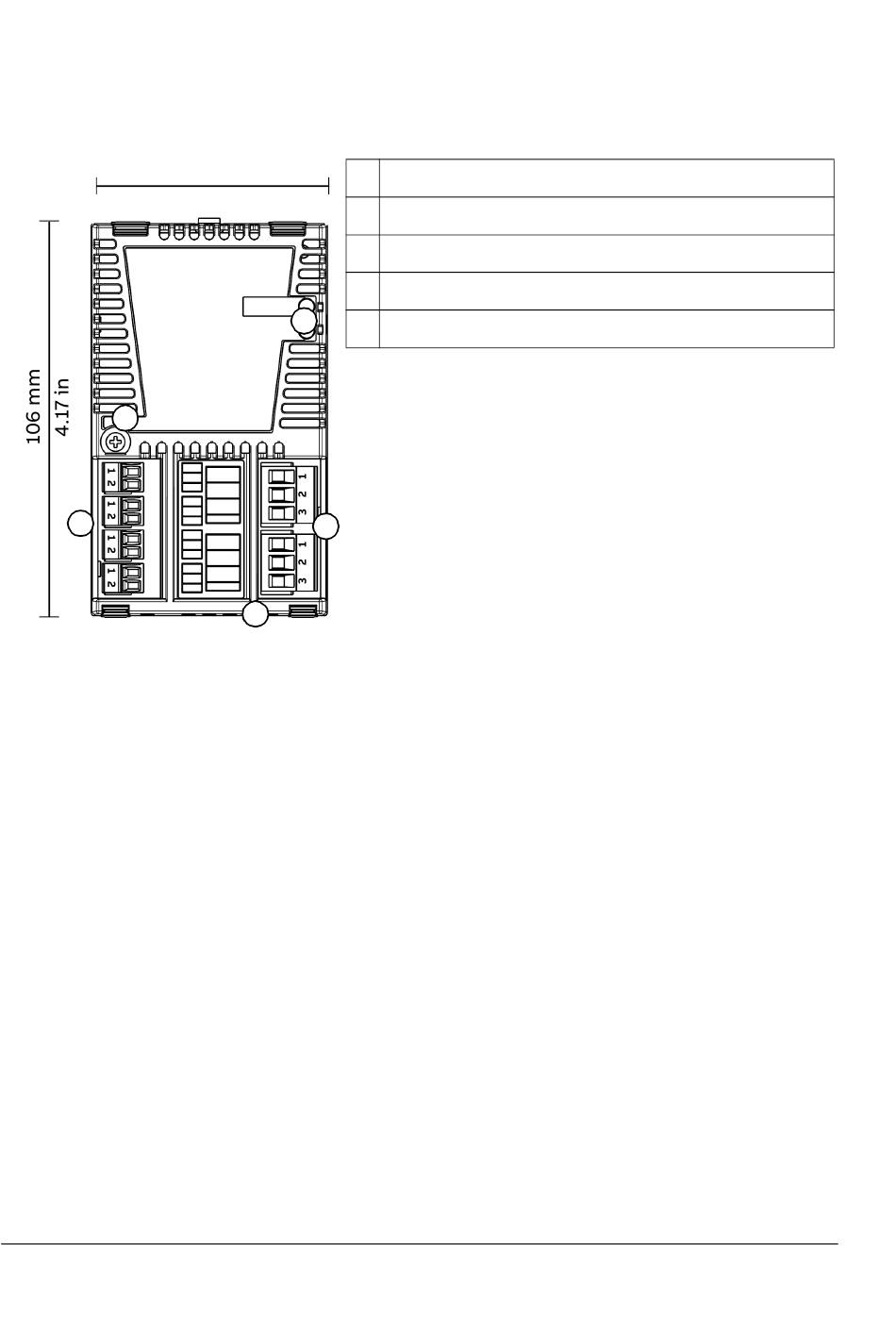

Layout
DIGITAL IO EXTENSION
2
CHASSIS
3
Quick guide - FIO-01
63 mm
2.48 in
FIO-01
STATUS
1
DIO1
RO1NO
COM
X61
RO1COM
DIO2
RO1NC
COM
4
X65
X62
DIO3
RO2NO
COM
X63
RO2COM
DIO4
RO2NC
COM
X66
X64
5
1 Diagnostic LED
2 Fixing screw
3 Digital I/O
4 Electromechanical relays
5 Locking tab
