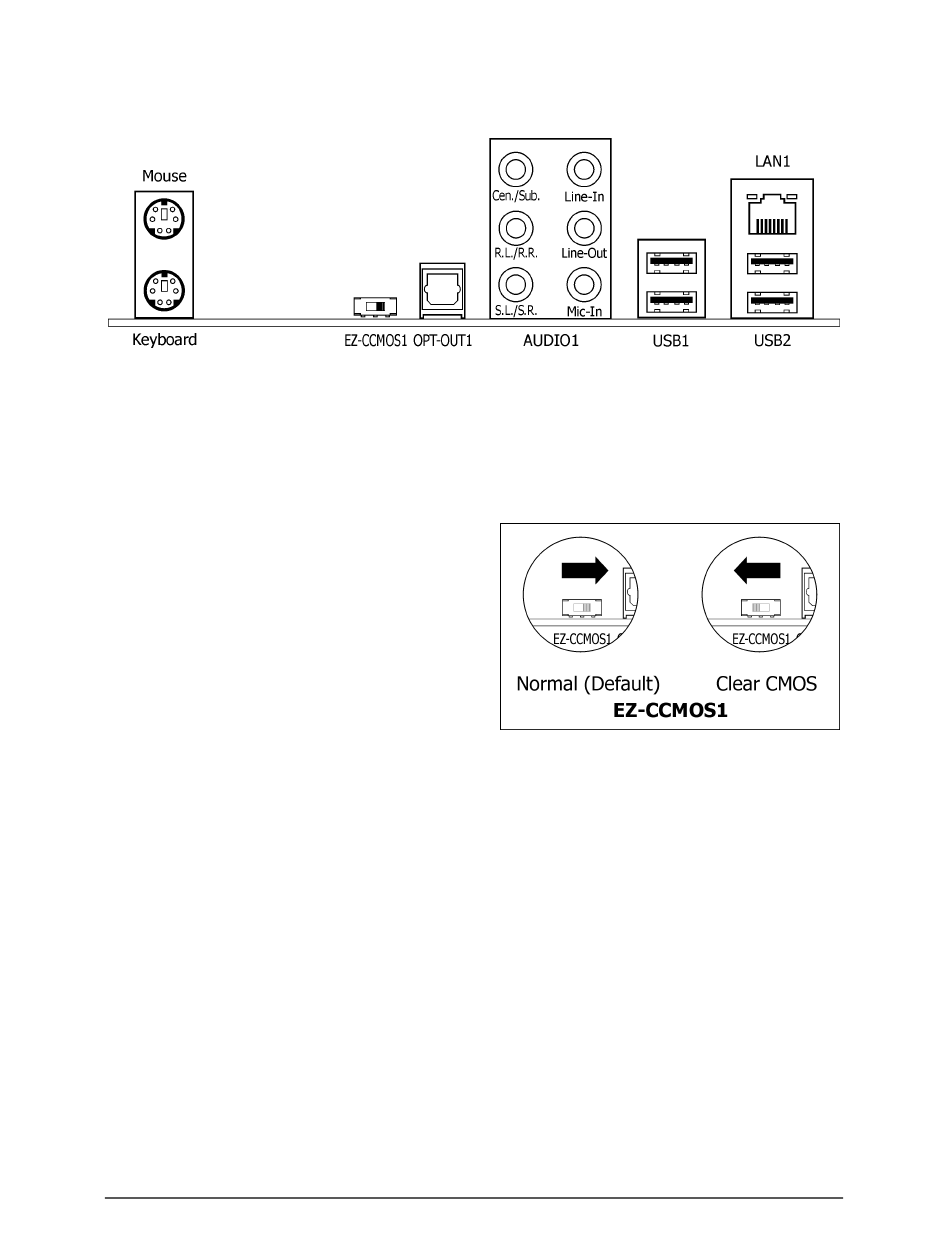

1.10 Connecting Rear Panel I/O Devices
The rear I/O part of this motherboard provides the following I/O ports:
•
Mouse: Connects to PS/2 mouse.
•
Keyboard: Connects to PS/2 keyboard.
•
EZ-CCMOS1: This switch enables clearing the CMOS memory without uncovering the
system chassis.
To clear the CMOS memory by EZ-CCMOS1 switch:
Step 1: Power off the system.
Step 2: Turn left this switch to the "Clear
CMOS" position.
Step 3: Turn right this switch to its default
"Normal" position. The default CMOS
memory is now reloaded.
Shut down the system power before
※
setting this switch.
Set this switch back to its default
※
"Normal" position before turning on the system power.
•
AUDIO1:
Cen./Sub. (Center / Subwoofer): Connects to the center and subwoofer channel.
R.L./R.R. (Rear Left / Rear Right): Connects to the rear left and rear right channel.
S.L./S.R. (Surround Left / Surround Right): Connects to the surround left and
surround right channel.
Line-In: Connects to the line out from external audio sources.
Line-Out: Connects to the front left and front right channel.
Mic-In: Connects to the plug from external microphone.
•
LAN1: Connects to Local Area Network.
•
USB1/USB2: Connects to USB devices such as scanner, digital speakers, monitor, mouse,
keyboard, hub, digital camera, joystick etc.
1-20
