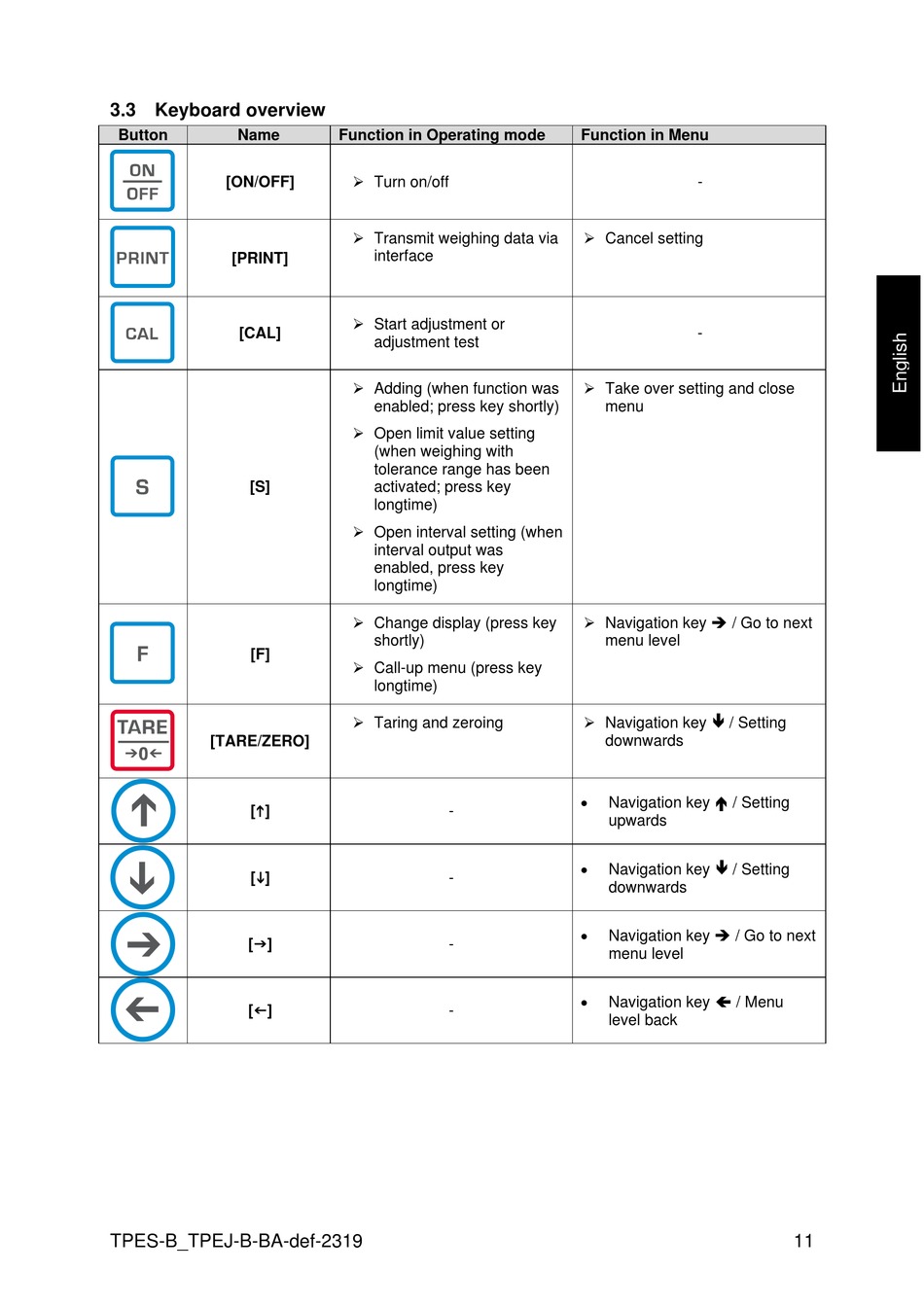

3.3 Keyboard overview

Button Name
[ON/OFF]
[PRINT]
[CAL]
[S]
[F]
[TARE/ZERO]
[]
[]
[]
[]
TPES-B_TPEJ-B-BA-def-2319
Function in Operating mode
➢ Turn on/off
➢ Transmit weighing data via
interface
➢ Start adjustment or
adjustment test
➢ Adding (when function was
enabled; press key shortly)
➢ Open limit value setting
(when weighing with
tolerance range has been
activated; press key
longtime)
➢ Open interval setting (when
interval output was
enabled, press key
longtime)
➢ Change display (press key
shortly)
➢ Call-up menu (press key
longtime)
➢ Taring and zeroing
-
-
-
-
Function in Menu
-
➢ Cancel setting
-
➢ Take over setting and close
menu
➢ Navigation key ➔ / Go to next
menu level
➢ Navigation key  / Setting
downwards
•
Navigation key  / Setting
upwards
•
Navigation key  / Setting
downwards
•
Navigation key ➔ / Go to next
menu level
•
Navigation key  / Menu
level back
11
