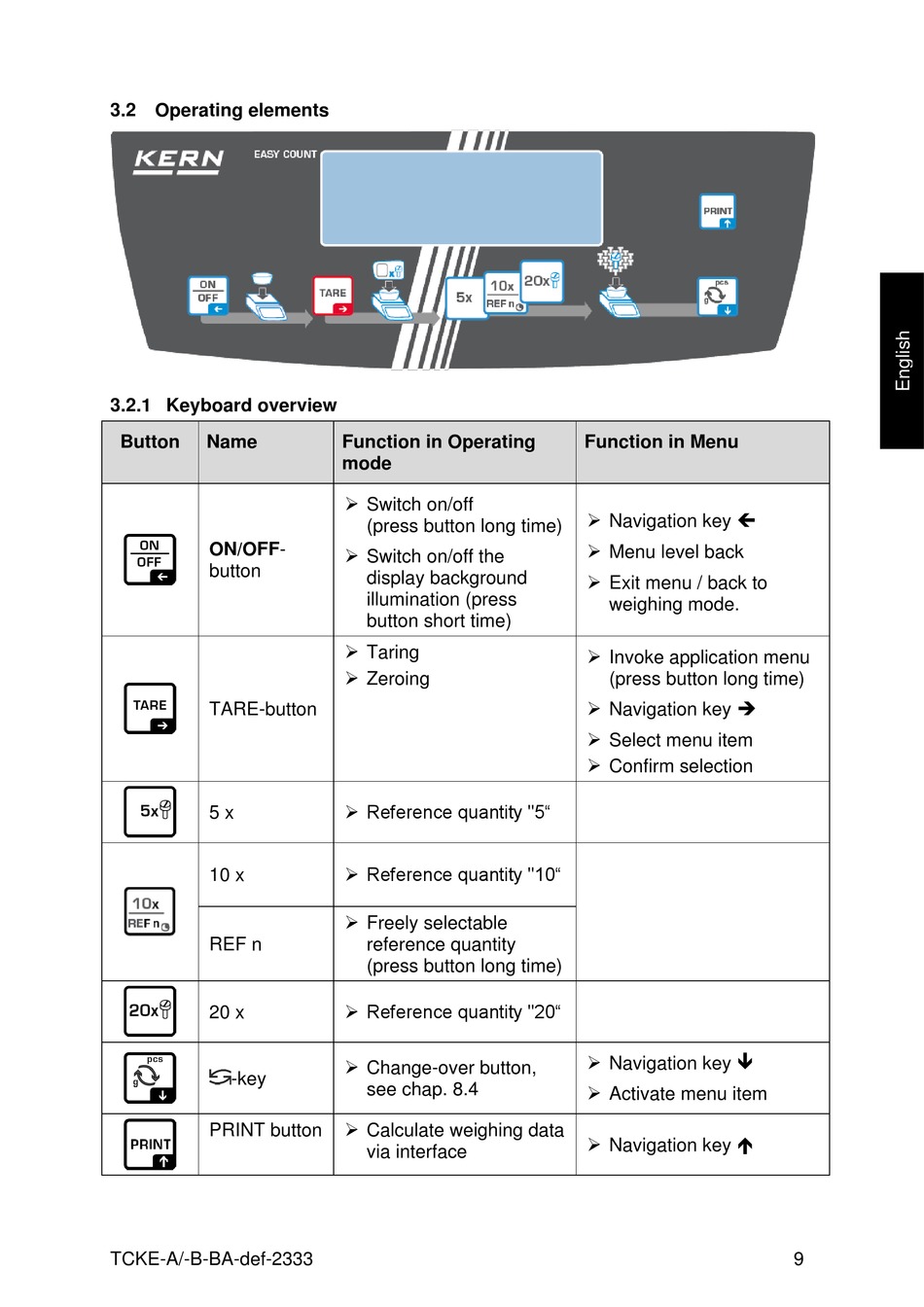

3.2 Operating elements

3.2.1 Keyboard overview

Button Name
ON/OFF-
button
TARE-button
5 x
10 x
REF n
20 x
-key
PRINT button
TCKE-A/-B-BA-def-2333
Function in Operating
mode
➢ Switch on/off
(press button long time)
➢ Switch on/off the
display background
illumination (press
button short time)
➢ Taring
➢ Zeroing
➢ Reference quantity "5"
➢ Reference quantity "10"
➢ Freely selectable
reference quantity
(press button long time)
➢ Reference quantity "20"
➢ Change-over button,
see chap. 8.4
➢ Calculate weighing data
via interface
Function in Menu
➢ Navigation key 
➢ Menu level back
➢ Exit menu / back to
weighing mode.
➢ Invoke application menu
(press button long time)
➢ Navigation key ➔
➢ Select menu item
➢ Confirm selection
➢ Navigation key 
➢ Activate menu item
➢ Navigation key 
