FOR N87, N80-8 AND N100-5 HELMENTS ONLY – positioning the keypad
Important: Installation of the keypad on the N87, N80-8 and N100-5 helmets requires the use of the
"KEYPAD ADAPTER" accessory, which is included in the package.

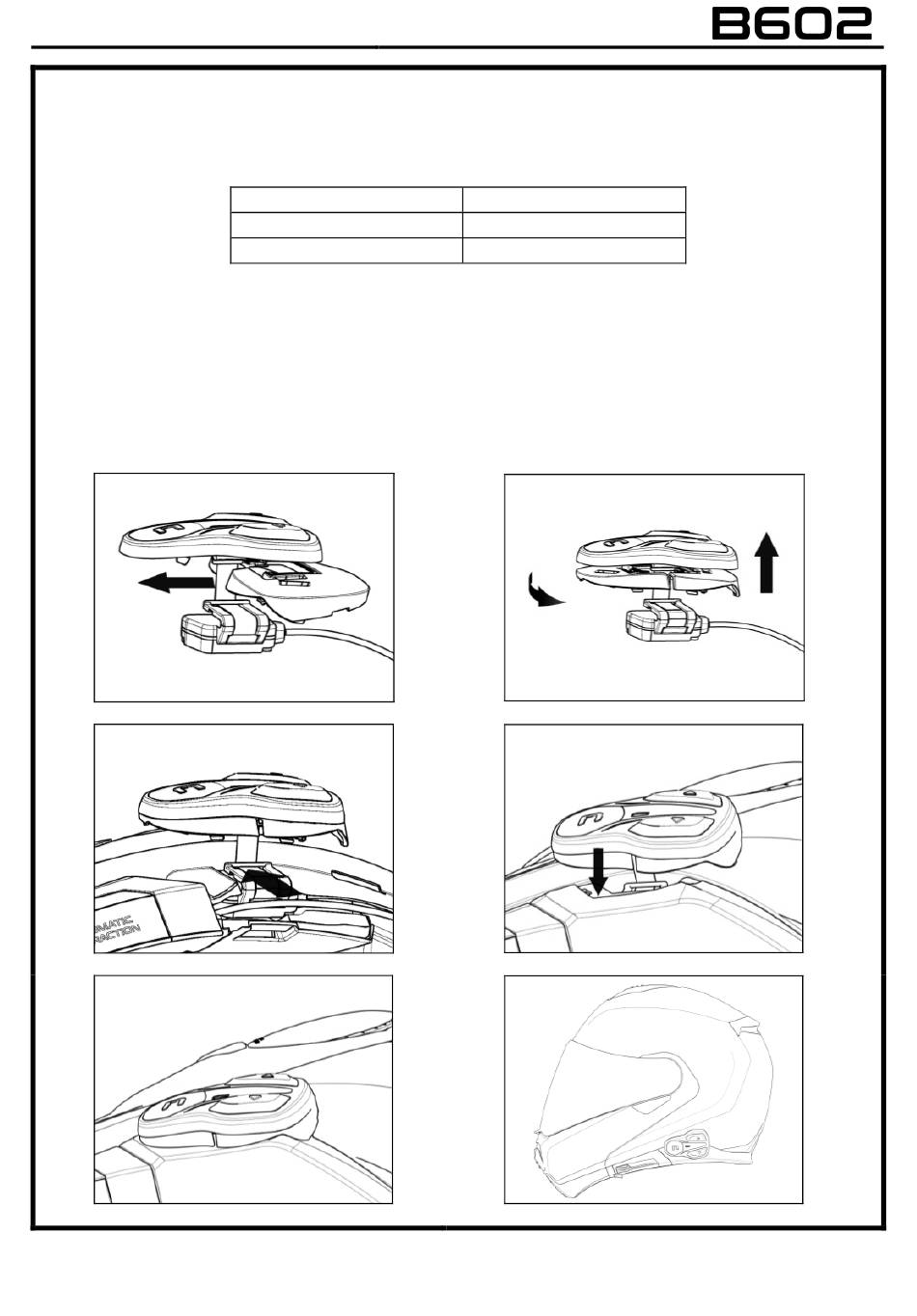

Insert the support specific for your helmet in the cable of the keypad (Fig. 21).
•
Rotate the keypad support so as to position it like in Fig. 22, then hook it to the keypad.
•
Fix the cable inside the helmet and make sure the left fixing clip snaps into its housing (Fig. 23).
•
Open the rubber cap of the B602 system.
•
Reassemble the gasket and secure it with the specific screw.
•
Hook up the keypad to the helmet by clicking in the relevant hooks (Fig. 24).
•
The proper positioning of the keypad is illustrated in Fig. 25 and in Fig. 26.
•
Fig. 21
Fig. 23
Fig. 25
LETTER ON THE ADAPTER
A
C
COMPATIBLE HELMETS
N100-5/PLUS, N87/PLUS
N80-8
Fig. 22
Fig. 24
Fig. 26
13
