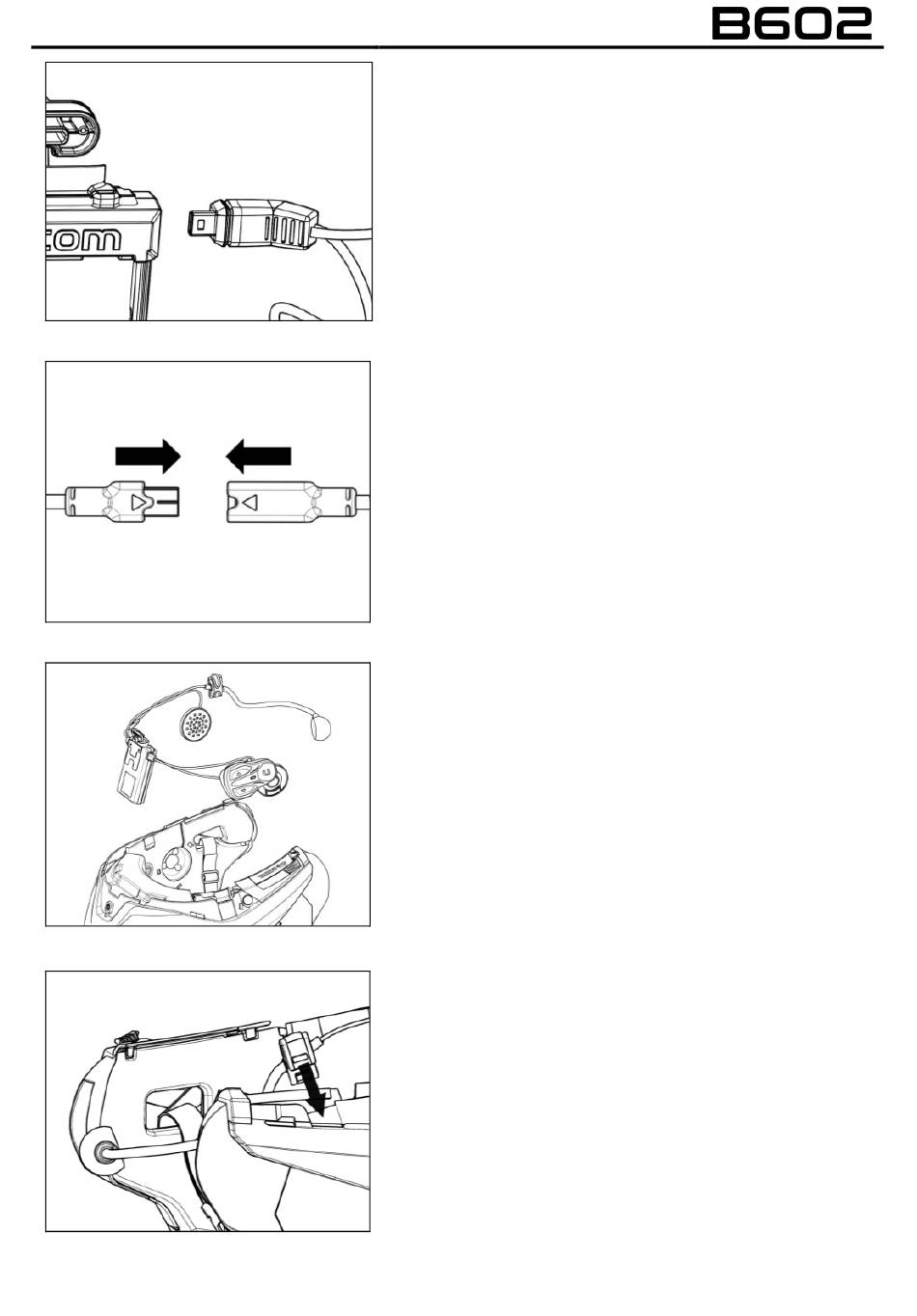

• Connect the right-hand cable to the port, as
shown (Fig. 7).
NB: the right cable comprises speaker and
microphone.
• Connect the speaker's black connector to the
other connector, as indicated by the arrows
(Fig. 8).
• Place the system in the special housing in the
back of the helmet, pushing it all the way
into the groove (Fig. 9).
N.B.: For positioning of the wiring and of the
microphone in the N100-5 helmet, follow the
instructions provided in the dedicated box.
• Fix the cable inside the helmet and make
sure the right fixing clip snaps into its
housing (Fig. 10).
