ONLY FOR HELMET N100-5 – positioning of wiring and microphone

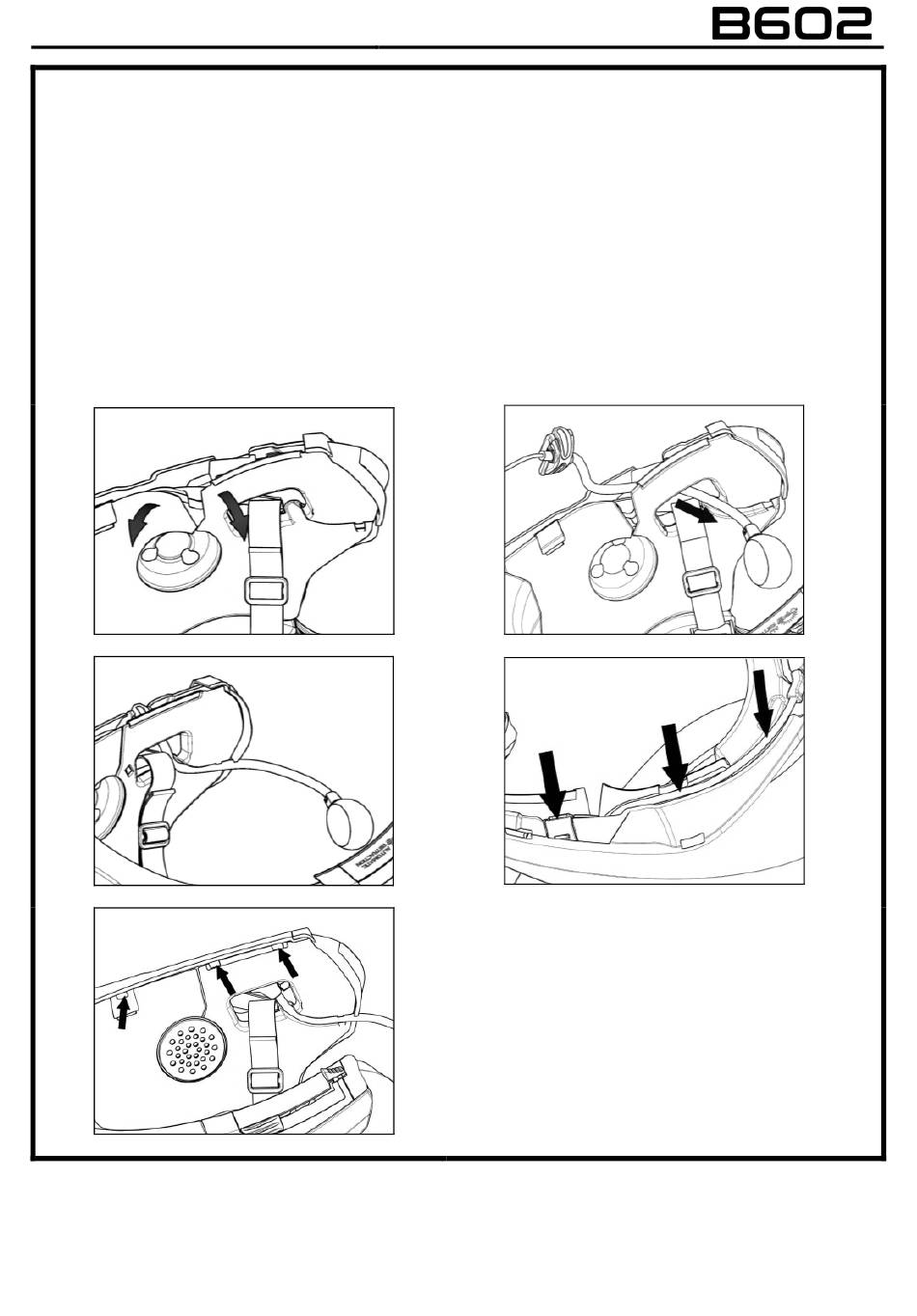

Positioning the right side wiring and the microphone:
Lift up the plastic lining of the cheek padding (Fig. 13).
•
Insert the microphone into the eyelet (Fig. 14) and position it in the special housing, then
•
inserting the boom pole of the microphone in the groove found in the chin guard coupling
frame (Fig. 15).
Caution: make sure that the side of the microphone support with the writing "n" is facing
inward.
Fix the cable inside the helmet and make sure the right fixing clip snaps into its housing (Fig.
•
16).
Reposition the plastic lining of the cheek padding, arranging it behind the two small stop hooks
•
(Fig. 17).
