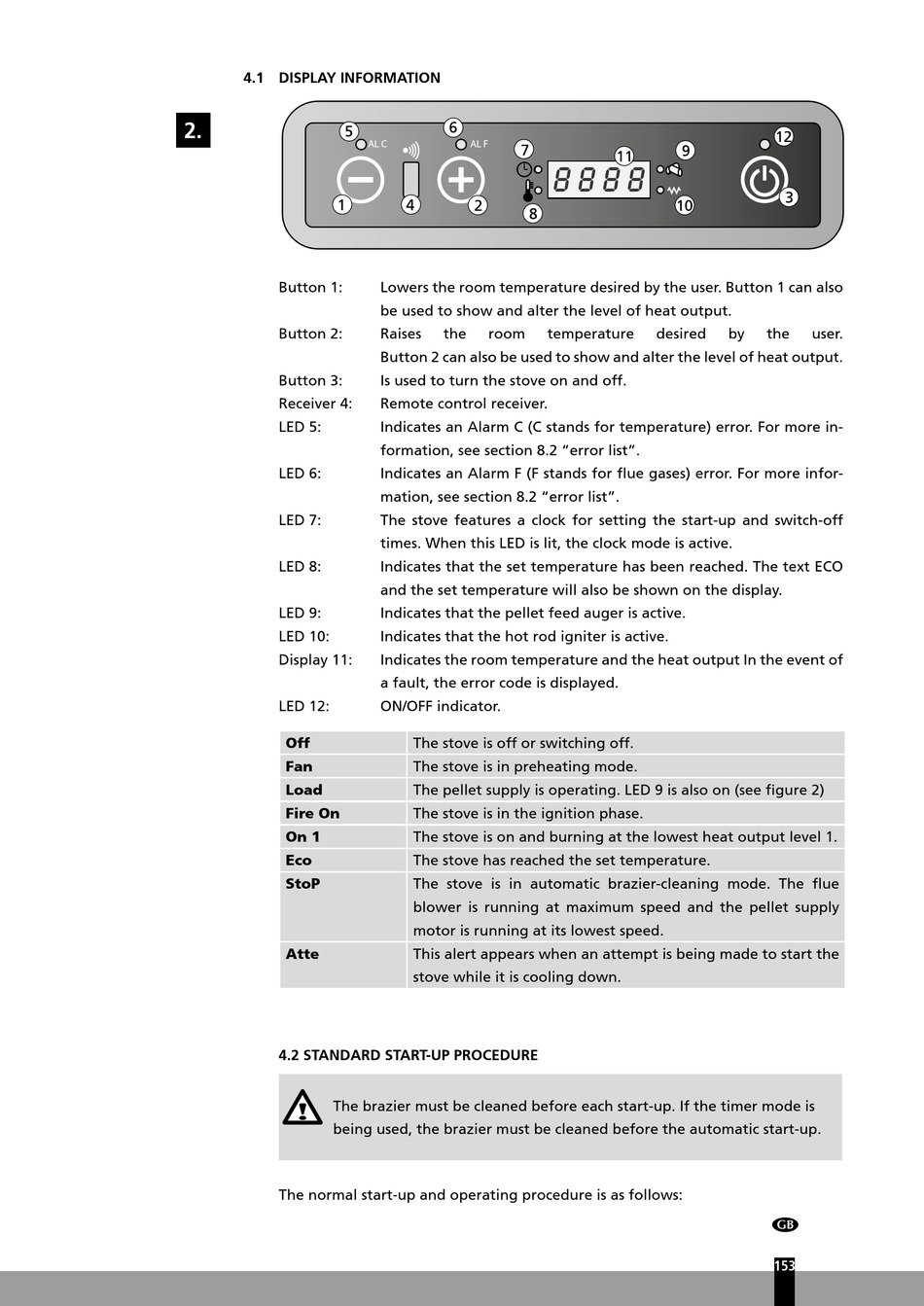

4.1 DISPLAY INFORMATION

2.
Button 1:
Button 2:
Button 3:
Receiver 4:
LED 5:
LED 6:
LED 7:
LED 8:
LED 9:
LED 10:
Display 11:
LED 12:
Off
Fan
Load
Fire On
On 1
Eco
StoP
Atte
4.2 STANDARD START-UP PROCEDURE
The brazier must be cleaned before each start-up. If the timer mode is
being used, the brazier must be cleaned before the automatic start-up.
The normal start-up and operating procedure is as follows:
Lowers the room temperature desired by the user. Button 1 can also
be used to show and alter the level of heat output.
Raises the room temperature
Button 2 can also be used to show and alter the level of heat output.
Is used to turn the stove on and off.
Remote control receiver.
Indicates an Alarm C (C stands for temperature) error. For more in-
formation, see section 8.2 "error list".
Indicates an Alarm F (F stands for flue gases) error. For more infor-
mation, see section 8.2 "error list".
The stove features a clock for setting the start-up and switch-off
times. When this LED is lit, the clock mode is active.
Indicates that the set temperature has been reached. The text ECO
and the set temperature will also be shown on the display.
Indicates that the pellet feed auger is active.
Indicates that the hot rod igniter is active.
Indicates the room temperature and the heat output In the event of
a fault, the error code is displayed.
ON/OFF indicator.
The stove is off or switching off.
The stove is in preheating mode.
The pellet supply is operating. LED 9 is also on (see figure 2)
The stove is in the ignition phase.
The stove is on and burning at the lowest heat output level 1.
The stove has reached the set temperature.
The stove is in automatic brazier-cleaning mode. The flue
blower is running at maximum speed and the pellet supply
motor is running at its lowest speed.
This alert appears when an attempt is being made to start the
stove while it is cooling down.
