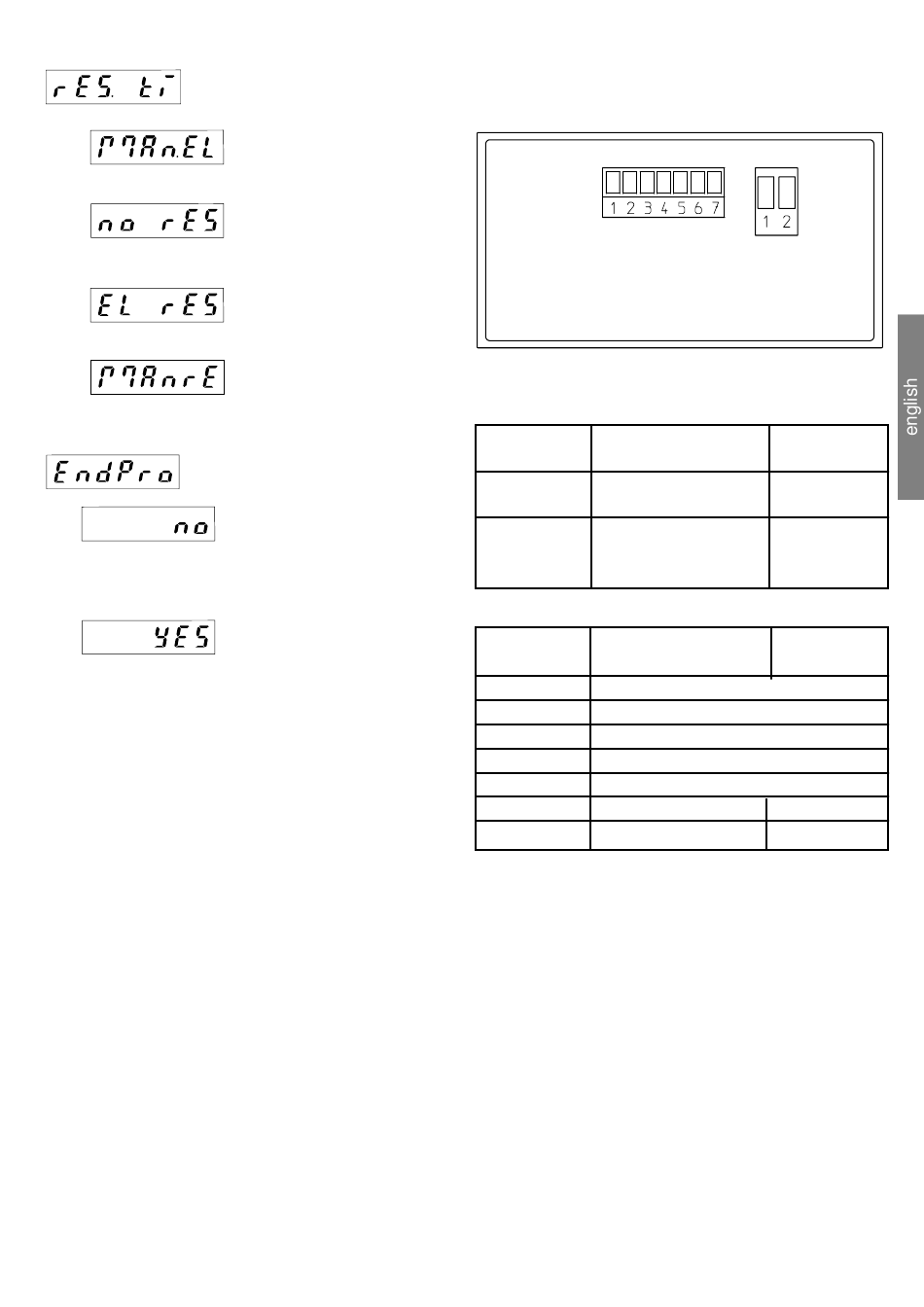

4.9 Reset mode (time meter)

4.10 End of programming

manual reset (red key)
and electrical reset
no reset
(red key and reset input
locked)
electrical reset only
manual reset only
Programming routine will
be passed through once
again. All parameters can
be checked.
Programming routine will
be left and the new
parameters will be stored.
Afterwards the device is
ready to use.

5. Terminal assignment

5.1 Terminal assignment X2
Terminal no. AC version
1 Supply voltage
90..260 VAC
2 Supply voltage
90..260 VAC
5.2 Terminal assignment X1
Terminal no. AC version
1 n.c.
2 n.c.
3 RESET
4 INP B
5 INP A
6 GND out
7 +24 V out
X1 X2
10..30 VDC
version
0 VDC
GND
Supply
voltage
10..30 VDC
10..30 VDC
version
nc.
nc.
7
