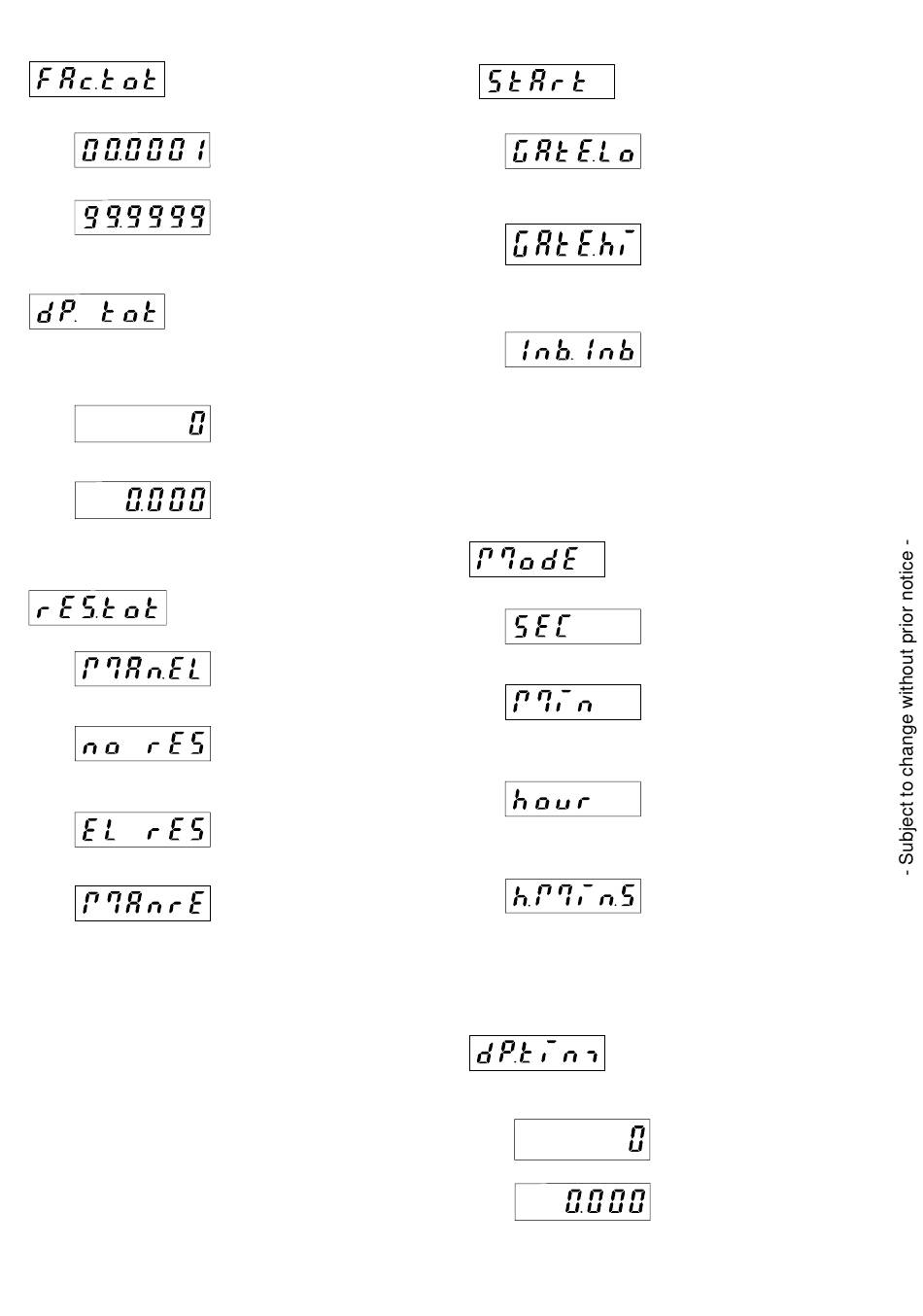

4.3 Scaling factor (totaliser)
4.4 Decimal point (totaliser)
4.5 Reset mode (totaliser)
6
It can be set from 00.0001
up to 99.9999. The
decimal point is set to 4
decimal places.
„0" won't be accepted!
The decimal point defines
the way of displaying the
count values. It does not
affect counting.
0 no decimal place
0.0 one decimal place
0.00 two decimal places
0.000 three decimal
places
manual reset (red key)
and electrical reset
no reset
(red key and reset input
locked)
electrical reset only
manual reset only
4.6 Input mode (time meter)
4.7 Operating mode (time meter)
*0, 0.1, 0.01, 0.001 means: Counting in 0, 0.1,
0.01, 0.001 units of time
4.8 Decimal point (time meter)
Start/Stop via INP B.
Counting while INP B
(gate) inactive or open
Start/Stop via INP B.
Counting while INP B
(gate) active (High level at
pnp; Low level at npn)
Counting will be started
and stopped via INP B
(LOW-HIGH edge at pnp;
HIGH-LOW edge at npn).
Every active edge
changes the counter
status.
Timing in s (accuracy
depending on position of
the decimal point*)
Timing in min. (accuracy
depending on position of
the decimal point*)
Timing in h (accuracy
depending on position of
the decimal point*)
Timing in h:min:s (decimal
point will be ignored)
The decimal point defines
the resolution of the
displayed value.
0 1
0.0 1/10 (0.1)
0.00 1/100 (0.01)
0.000 1/1000 (0.001)
