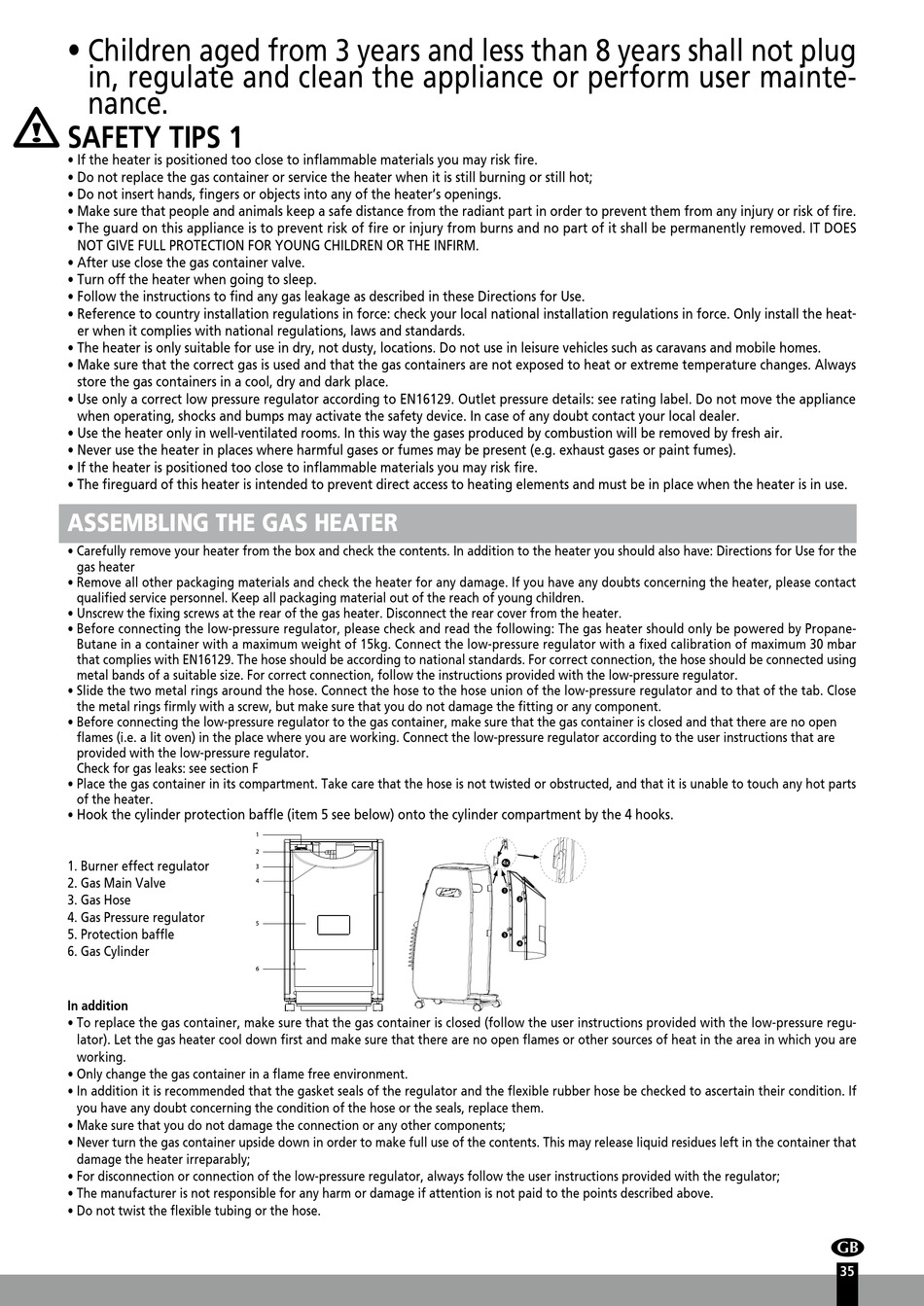

Safety Tips; Assembling The Gas Heater - Qlima GH 3042 R Benutzerhandbuch

• Children aged from 3 years and less than 8 years shall not plug
in, regulate and clean the appliance or perform user mainte-
nance.

SAFETY TIPS 1

• If the heater is positioned too close to inflammable materials you may risk fire.
• Do not replace the gas container or service the heater when it is still burning or still hot;
• Do not insert hands, fingers or objects into any of the heater's openings.
• Make sure that people and animals keep a safe distance from the radiant part in order to prevent them from any injury or risk of fire.
• The guard on this appliance is to prevent risk of fire or injury from burns and no part of it shall be permanently removed. IT DOES
NOT GIVE FULL PROTECTION FOR YOUNG CHILDREN OR THE INFIRM.
• After use close the gas container valve.
• Turn off the heater when going to sleep.
• Follow the instructions to find any gas leakage as described in these Directions for Use.
• Reference to country installation regulations in force: check your local national installation regulations in force. Only install the heat-
er when it complies with national regulations, laws and standards.
• The heater is only suitable for use in dry, not dusty, locations. Do not use in leisure vehicles such as caravans and mobile homes.
• Make sure that the correct gas is used and that the gas containers are not exposed to heat or extreme temperature changes. Always
store the gas containers in a cool, dry and dark place.
• Use only a correct low pressure regulator according to EN16129. Outlet pressure details: see rating label. Do not move the appliance
when operating, shocks and bumps may activate the safety device. In case of any doubt contact your local dealer.
• Use the heater only in well-ventilated rooms. In this way the gases produced by combustion will be removed by fresh air.
• Never use the heater in places where harmful gases or fumes may be present (e.g. exhaust gases or paint fumes).
• If the heater is positioned too close to inflammable materials you may risk fire.
• The fireguard of this heater is intended to prevent direct access to heating elements and must be in place when the heater is in use.

ASSEMBLING THE GAS HEATER

• Carefully remove your heater from the box and check the contents. In addition to the heater you should also have: Directions for Use for the
gas heater
• Remove all other packaging materials and check the heater for any damage. If you have any doubts concerning the heater, please contact
qualified service personnel. Keep all packaging material out of the reach of young children.
• Unscrew the fixing screws at the rear of the gas heater. Disconnect the rear cover from the heater.
• Before connecting the low-pressure regulator, please check and read the following: The gas heater should only be powered by Propane-
Butane in a container with a maximum weight of 15kg. Connect the low-pressure regulator with a fixed calibration of maximum 30 mbar
that complies with EN16129. The hose should be according to national standards. For correct connection, the hose should be connected using
metal bands of a suitable size. For correct connection, follow the instructions provided with the low-pressure regulator.
• Slide the two metal rings around the hose. Connect the hose to the hose union of the low-pressure regulator and to that of the tab. Close
the metal rings firmly with a screw, but make sure that you do not damage the fitting or any component.
• Before connecting the low-pressure regulator to the gas container, make sure that the gas container is closed and that there are no open
flames (i.e. a lit oven) in the place where you are working. Connect the low-pressure regulator according to the user instructions that are
provided with the low-pressure regulator.
Check for gas leaks: see section F
• Place the gas container in its compartment. Take care that the hose is not twisted or obstructed, and that it is unable to touch any hot parts
of the heater.
• Hook the cylinder protection baffle (item 5 see below) onto the cylinder compartment by the 4 hooks.
1. Burner effect regulator
2. Gas Main Valve
3. Gas Hose
4. Gas Pressure regulator
5. Protection baffle
6. Gas Cylinder
In addition
• To replace the gas container, make sure that the gas container is closed (follow the user instructions provided with the low-pressure regu-
lator). Let the gas heater cool down first and make sure that there are no open flames or other sources of heat in the area in which you are
working.
• Only change the gas container in a flame free environment.
• In addition it is recommended that the gasket seals of the regulator and the flexible rubber hose be checked to ascertain their condition. If
you have any doubt concerning the condition of the hose or the seals, replace them.
• Make sure that you do not damage the connection or any other components;
• Never turn the gas container upside down in order to make full use of the contents. This may release liquid residues left in the container that
damage the heater irreparably;
• For disconnection or connection of the low-pressure regulator, always follow the user instructions provided with the regulator;
• The manufacturer is not responsible for any harm or damage if attention is not paid to the points described above.
• Do not twist the flexible tubing or the hose.
