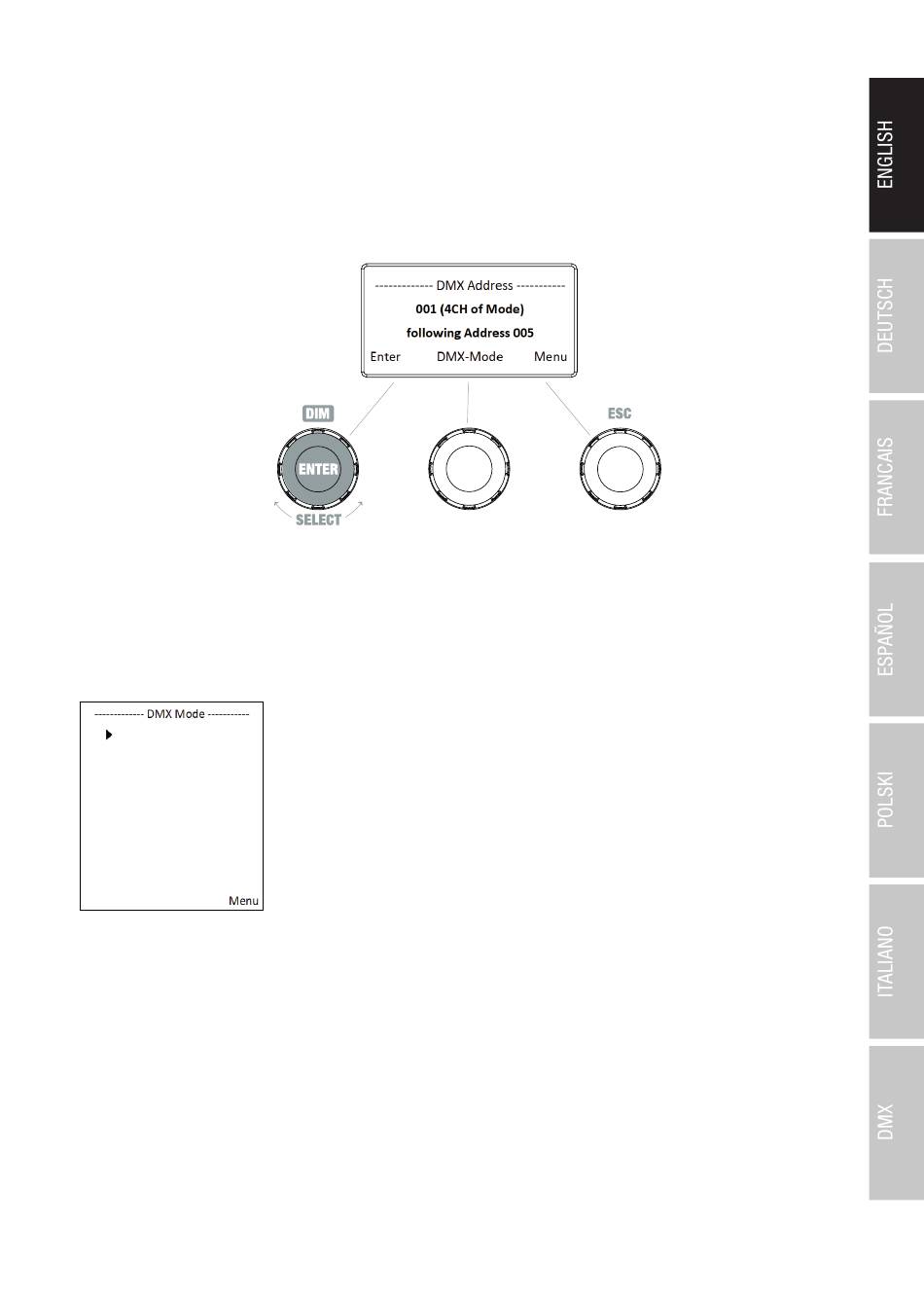

SETTING THE DMX START ADDRESS (DMX Address)
Starting from the main display, press on the right push button rotary encoder to move to the main menu. Rotate the left encoder (SELECT) to
n
select the "DMX Address" menu item (as indicated by selector arrow on left) and confirm by pressing the encoder (ENTER). You can now config-
ure the DMX start address as desired by rotating the left encoder (highest value reflects the active DMX operating mode). At the same time, the
following address, i.e. the DMX start address derived from the selected start address plus the channel number for the selected DMX mode, is
also shown. Confirm the entry by pressing on the left encoder (ENTER), which then returns you automatically to the main display and activates
the DMX mode. The menu item for selecting the desired DMX mode is reached directly from the "DMX Address" menu item by pressing on the
middle push button rotary encoder (DMX mode), while the previously configured DMX start address is then saved automatically.
Rotate encoder =
change value
Press encoder =
confirm change to value (enter)
SETTING THE DMX MODE (DMX Mode)
Starting from the main display, press on the right push button rotary encoder to move to the main menu. Rotate the left encoder (SELECT) to
select the "DMX Mode" menu item (as indicated by selector arrow on left) and confirm by pressing the left encoder (ENTER). You can now
select the desired DMX mode by rotating the left encoder. Confirm the choice by pressing on the left encoder (ENTER), which then returns
you automatically to the main display and activates the DMX mode. You can find tables on channel assignment in the different DMX modes
in these instructions under DMX CONTROL.
1CH DIM
2CH DIM 16Bit
2CH CCT
3CH RGB cal.
4CH Direct
4CH CCT 16Bit
6CH HSI-CCT
7CH RGB-CCT
8CH Direct 16Bit
10CH HSI-CCT
16CH Direct-CCT
Press encoder =
select the DMX mode
Press encoder =
Open main menu
