FlexiDome VF | Installation Manual
Caution
Installation should only be performed by qualified service
personnel in accordance with the National Electrical Code or
applicable local codes.
Disassembly

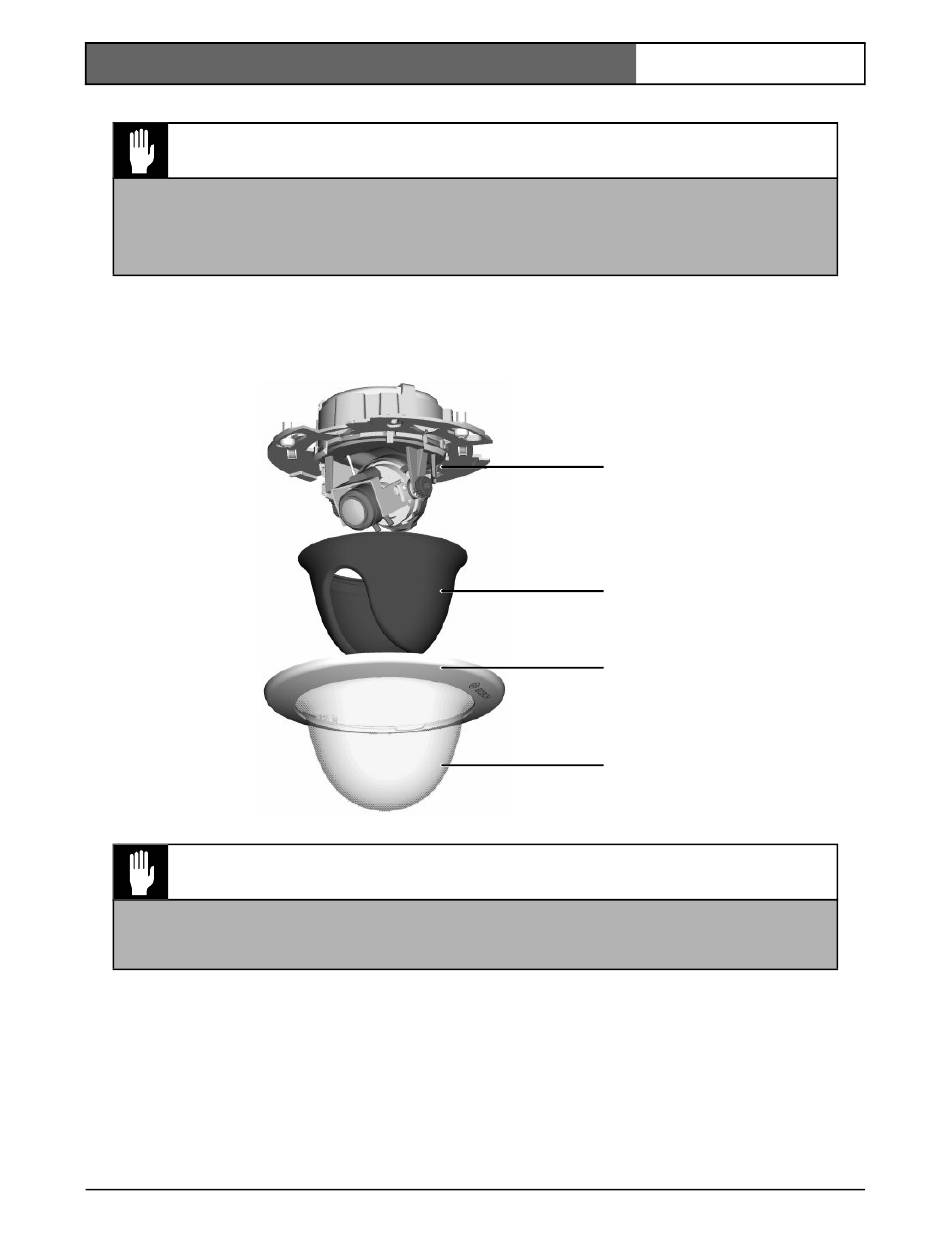

The camera/housing unit consists of the following parts:
Caution
The camera module is a sensitive device and must be handled
carefully. Do not drop when disassembling the unit.
To disasemble the unit proceed as follows:
• Rotate the trim ring counterclockwise to release it from its bayonet on
the camera base.
• Remove the trim ring with dome.
• Remove the inner liner by pulling it off of the base.
Bosch Security Systems | 2005-11 | V1.0
All manuals and user guides at all-guides.com
EN | 8
Camera module and
mounting base
Inner liner
Trim ring
Dome
