1 Scope of delivery

1x exhaust module, 1x mounting screw, as ordered
1x set of operating instructions

2 Product overview

Product variants:
• Exhaust module with surface silencer for 3/5 and R
• Exhaust module with restricted exhaust 3/5
• Exhaust module with separate restricted exhaust for 3 and 5

2.1 Product identification

Observe the product information on the product and packaging.
u

3 Exchanging

Notes
• The product is a component. Observe the documentation information when
disassembling and assembling your VS.
• The VS does not need to be removed or disassembled to remove or mount an
exhaust module on a supply plate in the VS.
Danger of injury in case of disassembly or replacement under pressure or
voltage!
Disassembling or replacement when under pressure or electrical voltage may
lead to injuries and damage to the product or system components.
1. Make sure that the relevant system part is not under pressure or voltage be-
fore disassembling the product or exchanging parts.
2. Protect the system against being restarted.
AVENTICS™ AV03/AV05 | R412018804-BAL-001-AE | English
CAUTION
1
2
5
6

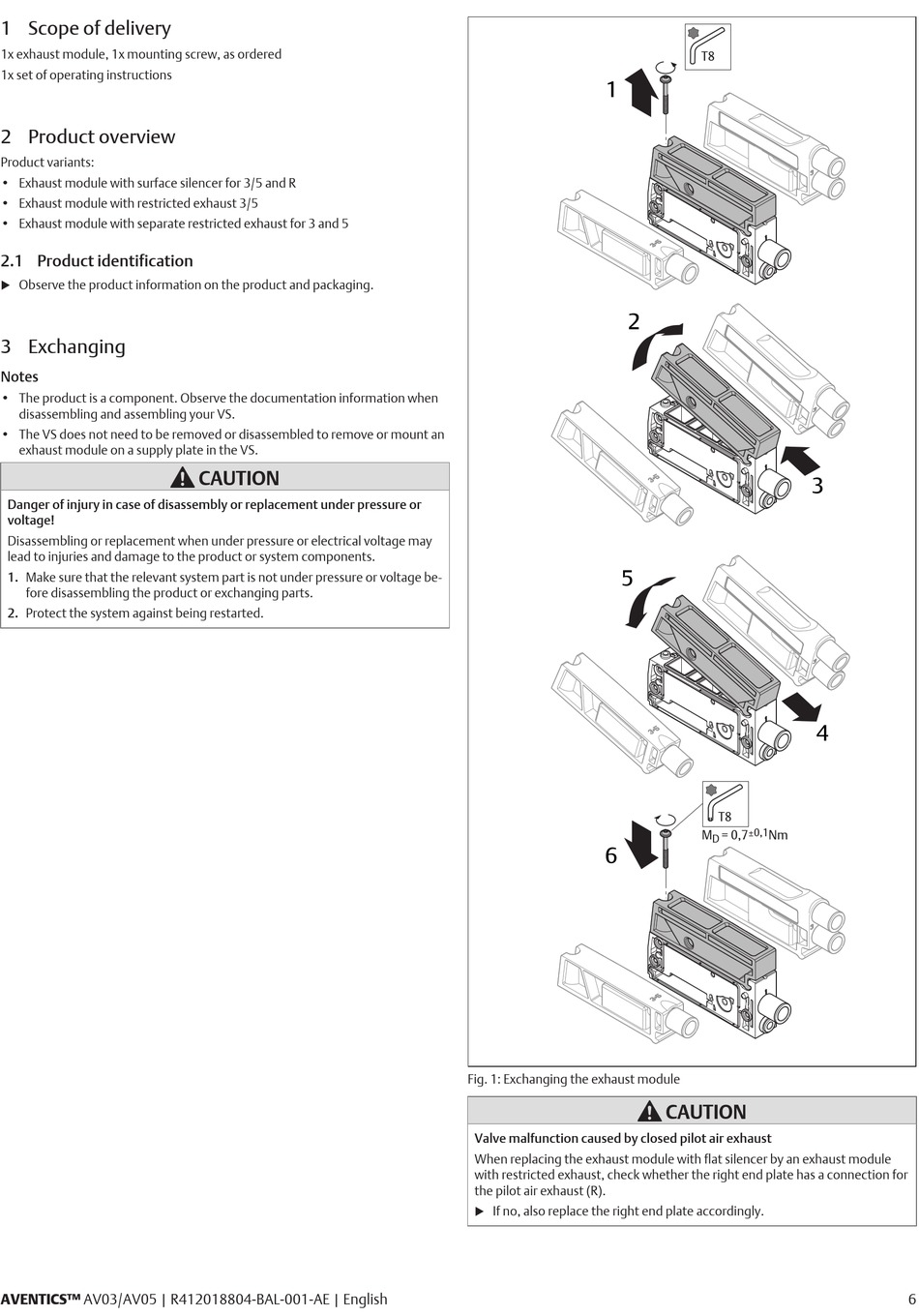

Fig. 1: Exchanging the exhaust module
Valve malfunction caused by closed pilot air exhaust
When replacing the exhaust module with flat silencer by an exhaust module
with restricted exhaust, check whether the right end plate has a connection for
the pilot air exhaust (R).
If no, also replace the right end plate accordingly.
u
T8
3
4
T8
±0,1
M = 0,7 Nm
D
CAUTION
6
