Product description

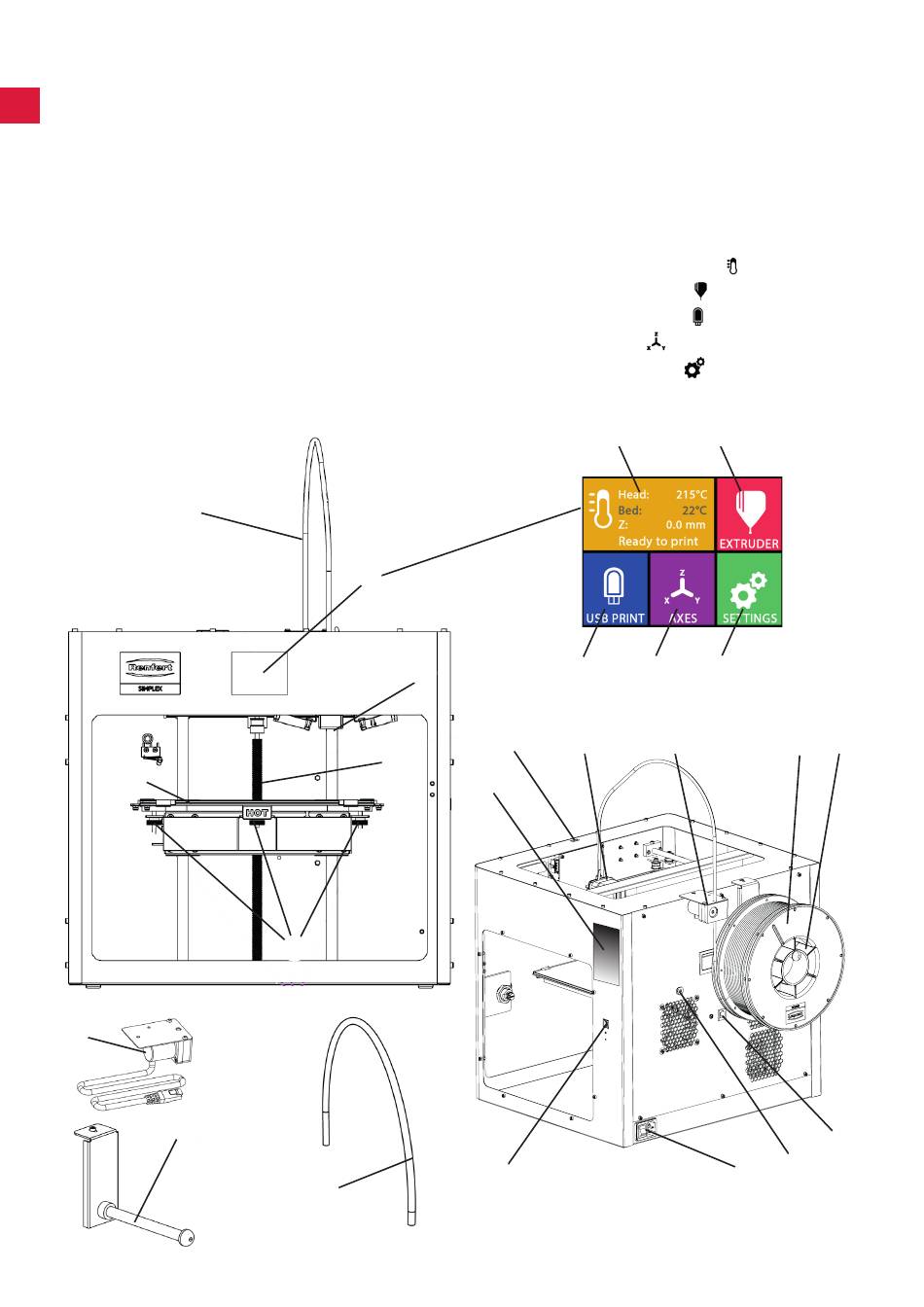

3.1 Assemblies and functional elements
en
1
Touchscreen LCD display / main menu
2 Filament guiding tube
3 Nozzle
4
Removable glass plate
5 Leveling knobs
6 Z-Axis rod
7
Filament spool holder
8 Filament spool
9 Filament sensor
10 Extruder
11 USB A port for USB flash drive
4
9
7
2
5
2
12 USB B port for connection to a PC
13 ON/OFF switch / connection for mains
14 Port for filament sensor
15 Port for cover fan
16 Distance card
17 Menu - TEMPERATURE
18 Menu - EXTRUDER
19 Menu - USB PRINT
20 Menu - AXES
21 Menu - SETTINGS
1
3
11
6
16
12
- 6 -
power supply
17 18
19 20 21
10 9 7
8
14
15
13
Fig. 1
