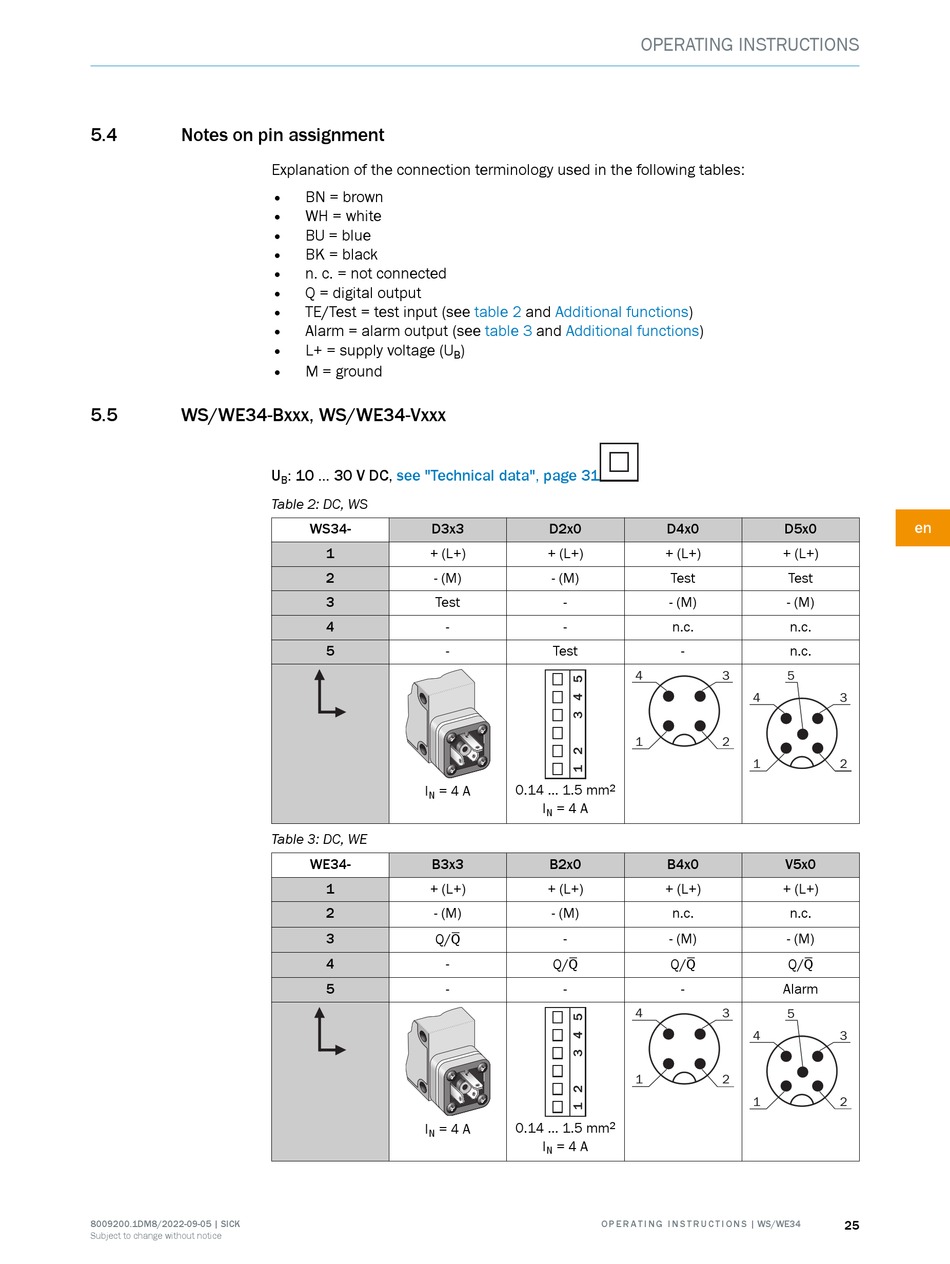

5.4 Notes on pin assignment
5.5 WS/WE34-Bxxx, WS/WE34-Vxxx
8009200.1DM8/2022-09-05 | SICK
Subject to change without notice
Explanation of the connection terminology used in the following tables:
• BN = brown
•
WH = white
• BU = blue
• BK = black
• n. c. = not connected
• Q = digital output
• TE/Test = test input (see
•
Alarm = alarm output (see
•
L+ = supply voltage (U
• M = ground
U : 10 ... 30 V DC, see "Technical data", page 31
B
Table 2: DC, WS
WS34- D3x3
1 + (L+)
2 - (M)
3 Test
4 -
5 -
I = 4 A
N
Table 3: DC, WE
WE34- B3x3
1 + (L+)
2 - (M)
3
Q/Q
4 -
5 -
I = 4 A
N
table 2 and Additional functions)
table 3 and Additional
)
B
D2x0
+ (L+)
- (M)
-
-
Test
0.14 ... 1.5 mm
2
I = 4 A
N
B2x0
+ (L+)
- (M)
-
Q/Q
-
0.14 ... 1.5 mm
2
I = 4 A
N
O P E R A T I N G I N S T R U C T I O N S | WS/WE34
OPERATING INSTRUCTIONS
functions)
D4x0 D5x0
+ (L+) + (L+)
Test Test
- (M) - (M)
n.c. n.c.
- n.c.
4 3 5
4
1 2
1
B4x0 V5x0
+ (L+) + (L+)
n.c. n.c.
- (M) - (M)
Q/Q Q/Q
- Alarm
4 3 5
4
1 2
1
en
3
2
3
2
