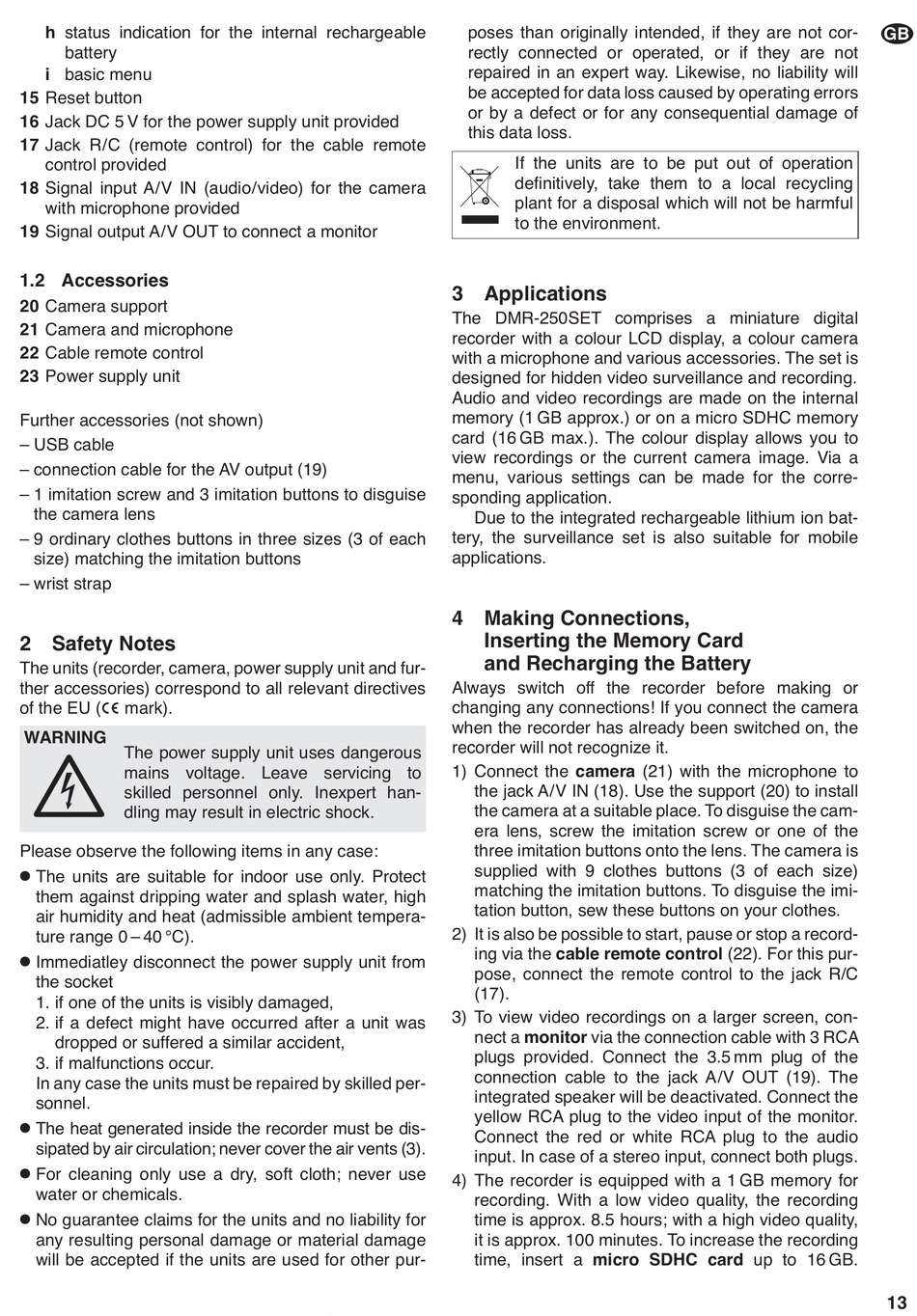

h status indication for the internal rechargeable
battery
i basic menu
15 Reset button
16 Jack DC 5 V for the power supply unit provided
17 Jack R / C (remote control) for the cable remote
control provided
18 Signal input A / V IN (audio / video) for the camera
with microphone provided
19 Signal output A / V OUT to connect a monitor

1.2 Accessories

20 Camera support
21 Camera and microphone
22 Cable remote control
23 Power supply unit
Further accessories (not shown)
– USB cable
– connection cable for the AV output (19)
– 1 imitation screw and 3 imitation buttons to disguise
the camera lens
– 9 ordinary clothes buttons in three sizes (3 of each
size) matching the imitation buttons
– wrist strap

2 Safety Notes

The units (recorder, camera, power supply unit and fur-
ther accessories) correspond to all relevant directives
of the EU ( mark).
WARNING
The power supply unit uses dangerous
mains voltage. Leave servicing to
skilled personnel only. Inexpert han-
dling may result in electric shock.
Please observe the following items in any case:
G
The units are suitable for indoor use only. Protect
them against dripping water and splash water, high
air humidity and heat (admissible ambient tempera-
ture range 0 – 40 °C).
G
Immediatley disconnect the power supply unit from
the socket
1. if one of the units is visibly damaged,
2. if a defect might have occurred after a unit was
dropped or suffered a similar accident,
3. if malfunctions occur.
In any case the units must be repaired by skilled per-
sonnel.
G
The heat generated inside the recorder must be dis-
sipated by air circulation; never cover the air vents (3).
G
For cleaning only use a dry, soft cloth; never use
water or chemicals.
G
No guarantee claims for the units and no liability for
any resulting personal damage or material damage
will be accepted if the units are used for other pur-
poses than originally intended, if they are not cor-
rectly connected or operated, or if they are not
repaired in an expert way. Likewise, no liability will
be accepted for data loss caused by operating errors
or by a defect or for any consequential damage of
this data loss.
If the units are to be put out of operation
definitively, take them to a local recycling
plant for a disposal which will not be harmful
to the environment.

3 Applications

The DMR-250SET comprises a miniature digital
recorder with a colour LCD display, a colour camera
with a microphone and various accessories. The set is
designed for hidden video surveillance and recording.
Audio and video recordings are made on the internal
memory (1 GB approx.) or on a micro SDHC memory
card (16 GB max.). The colour display allows you to
view recordings or the current camera image. Via a
menu, various settings can be made for the corre-
sponding application.
Due to the integrated rechargeable lithium ion bat-
tery, the surveillance set is also suitable for mobile
applications.
4 Making Connections,
Inserting the Memory Card
and Recharging the Battery
Always switch off the recorder before making or
changing any connections! If you connect the camera
when the recorder has already been switched on, the
recorder will not recognize it.
1) Connect the camera (21) with the microphone to
the jack A / V IN (18). Use the support (20) to install
the camera at a suitable place. To disguise the cam-
era lens, screw the imitation screw or one of the
three imitation buttons onto the lens. The camera is
supplied with 9 clothes buttons (3 of each size)
matching the imitation buttons. To disguise the imi-
tation button, sew these buttons on your clothes.
2) It is also be possible to start, pause or stop a record-
ing via the cable remote control (22). For this pur-
pose, connect the remote control to the jack R/C
(17).
3) To view video recordings on a larger screen, con-
nect a monitor via the connection cable with 3 RCA
plugs provided. Connect the 3.5 mm plug of the
connection cable to the jack A / V OUT (19). The
integrated speaker will be deactivated. Connect the
yellow RCA plug to the video input of the monitor.
Connect the red or white RCA plug to the audio
input. In case of a stereo input, connect both plugs.
4) The recorder is equipped with a 1 GB memory for
recording. With a low video quality, the recording
time is approx. 8.5 hours; with a high video quality,
it is approx. 100 minutes. To increase the recording
time, insert a micro SDHC card up to 16 GB.
GB
13
