7. Setting up the camera in your stable

The included antenna cable will allow you to place the camera within 12 meters* from the transmitting
A300-antenna (5dBi) and within 2 meters* from a 220V wall socket (both power and antenna cables
can be extended, se asterisk below).
Place your camera at a spot located up high and point it towards the area you wish to supervise (e.g.
your stable box). To test that the camera covers the area you wish to supervise, attach the black
camera antenna (2dBi) at the back of the camera and rotate it clock-wise. Connect the camera to
a 220V wall socket by using the included 12V power adaptor. Bring the fully charged LCD-monitor
and control that the camera is pointed in a desired way. When you are satisfied, attach the camera
to the wall by using the included screws.
Information
To extend the power cable, use an ordinary 220V extension cable. If you for safety
reasons do not wish to have a high voltage cable near your horses you can use a
low voltage extension cable instead.
When extending the antenna cable, we recommend a maximum of 20m of cable due to
increased signal loss when using longer cables.

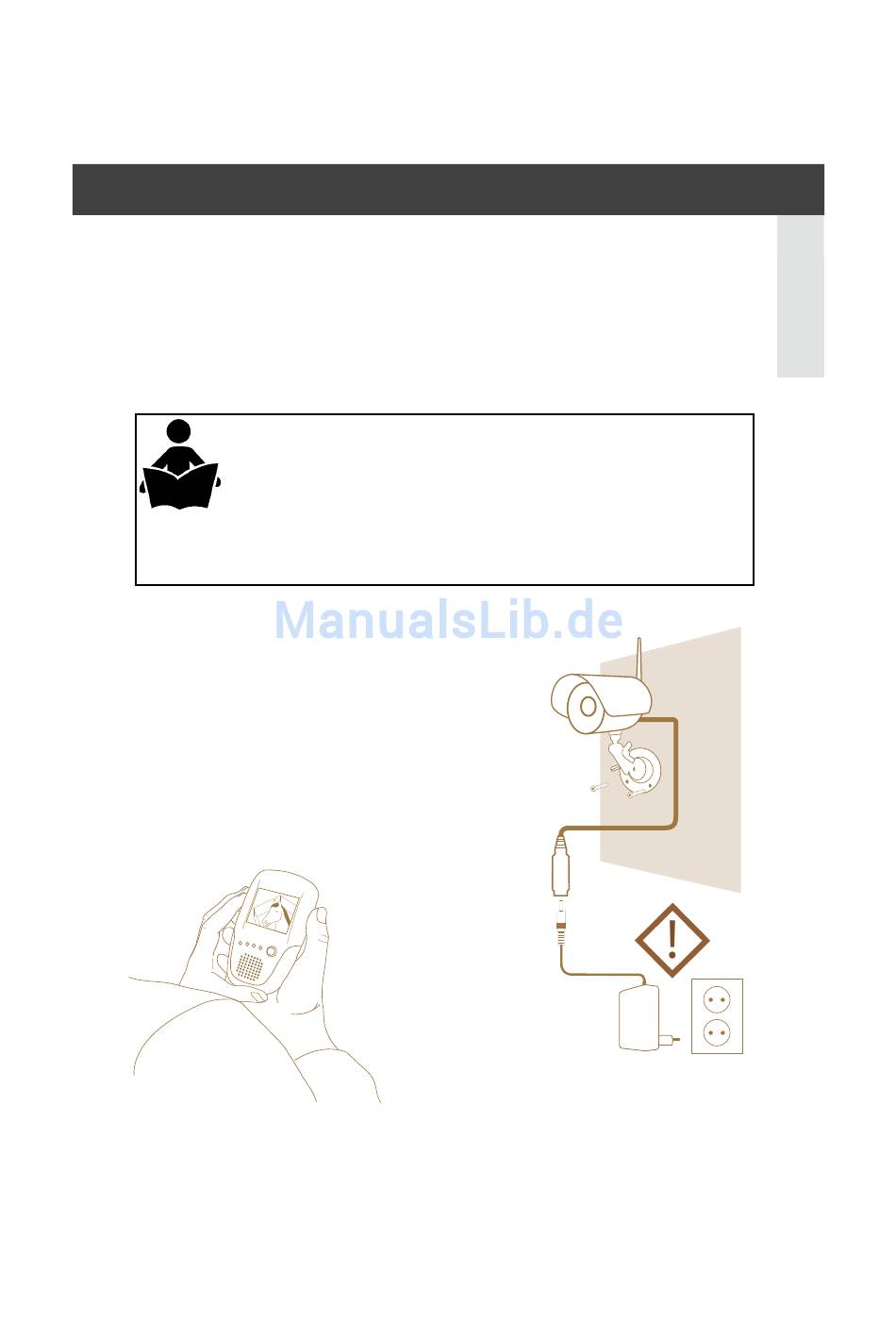

Step by step
1. Connect the black camera antenna (2dBi) at the back of
the camera.
2. Use the camera foot and attach the camera to the wall
at an appropriate position, maximum 2 meters* from a
220V wall socket and 12 meters* from where you intend
to place the transmitting A300-antenna (5dBi).
3. Use the LCD-monitor to check the camera angle.
*At www.horsecam-europe.com you can find accessories
such as low voltage power cables and longer antenna cable.
