5. Before you start the installation

Read the users guide and the quick install guide before you start installing your horseCam-
solution.
Start with charging your LCD-monitor since you will need to use it later on in the installation
process. The battery is only partially charged at delivery and the LCD-monitor will therefore only
function for a short while if it is not charged.
To charge the battery, make sure that the battery is correctly inserted into the LCD-monitor and
connect the slim charger marked with 5V to a 220V wall socket. Connect the chargers plug to
the LCD-monitor's power connection socket marked with DC 5V IN, the channel selector button
will light up when it is being charged. (If the battery is fully charged, the channel selector button
will not light up). After approx. 2 h. the battery is fully charged, the glowing ring will automatically
be switched off.
A fully charged battery will run for approx. 2 h.

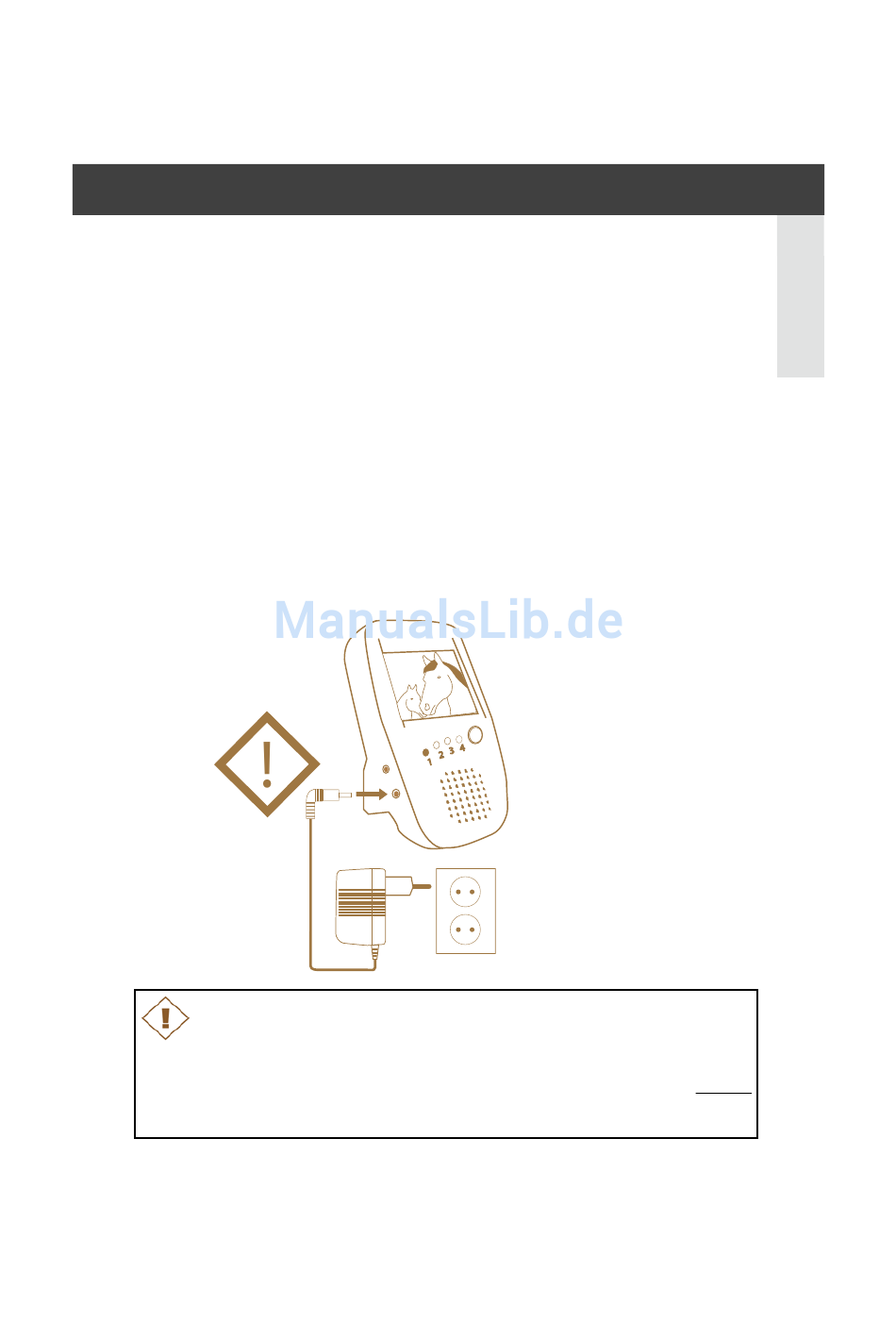

Step by step
1. Place one of the included batteries inside the LCD-monitor.
2. Connect the power adaptor marked with 5V to the LCD-monitor's power socket (marked
with DC 5V IN) and the other end to a wall socket (220V).
3. Make sure that the ring around the button on the LCD-monitor lights up.
4. Move along to chapter 6.
NOTICE
Use only the included 5V power adaptor to supply the LCD-monitor with power or for charging
the included batteries. If you connect the wrong power adaptor, or other incorrect power source
to the LCD-monitor, the charging function of the LCD-monitor will break. The warranty does not
cover damages that arise from use of incorrect power adaptors or use of other power sources not
included in your horseCam-solution.
