3. What is included in your horseCam-box

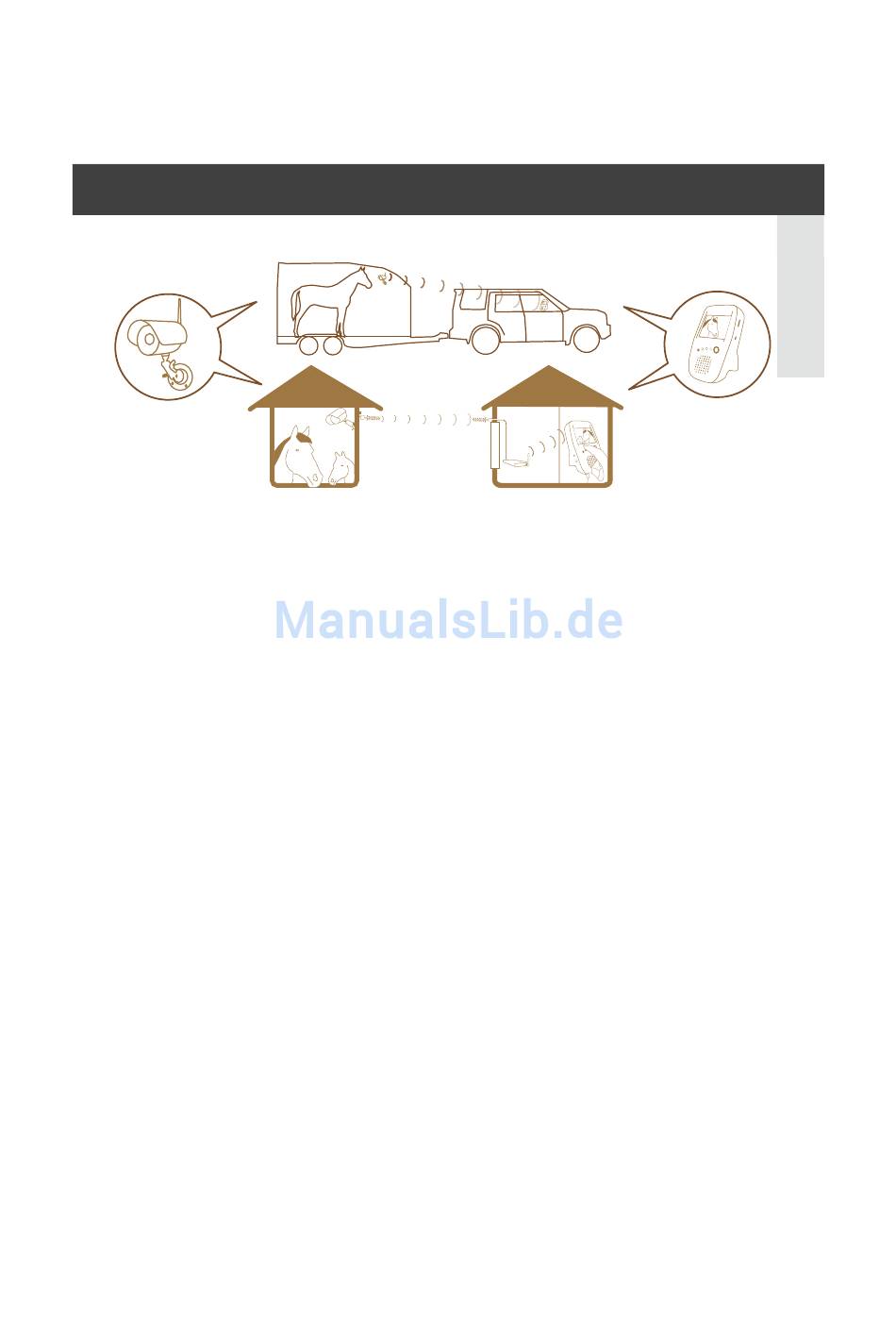

Your horseCam-solution includes the following products:
1. 1 wireless video camera. (Art. nr 823T)
2. 1 transmitting A300-antenna. (5dBi). (Art. nr 309A00)
3. 1 receiving A300-antenna. (12dBi). (Art. nr 300A00)
4. 1 VideoLink for indoor range extension. (Art. nr 870VL)
5. 1 wireless 2,5" LCD-monitor. (Art. nr 711LCD)
6. 1 12V trailer power cable for power supply of camera inside your trailer. (Art. nr 116TRA)
7. 1 extra mounting foot for easy movement of camera between stable and trailer (Art. nr 823FOT)
8. 1 5V cigarette adaptor for power supply of the LCD-monitor inside the car. (Art. nr 110CIG)
9. 1 holder for comfortable installation of the LCD-monitor inside the car. (Art. nr 711HOLD)
10. 1 antenna cable (12m) for mounting between camera and transmitting A300-antenna (Art. nr 302K12)
11. 1 antenna cable (5m) for mounting between videoLink and receiving A300-antenna (Art. nr 302K05)
Your horseCam-solution further includes:
1 12V power adaptor for the camera.
1 5V power adaptor for the LCD-monitor.
1 5V power adaptor for the videoLink.
2 rechargeable batteries for the LCD-monitor.
1 earphone to the LCD-monitor.
1 transmitting black antenna for the camera (2dBi).
1 transmitting black antenna for the videoLink (2dBi).
1 video cable for connection of LCD-monitor to your TV (Yellow).
1 AV-cable for connection of the videoLink to your TV (Yellow/Red).
4 shrink tubes for weather protection of antenna cable joints.
1 Quick Install Guide.
1 User's Guide.
Please make sure that all products are included in your package and that all products are
marked with respective article number. Get familiar with the products by connecting the
camera to the 12V power adaptor and the LCD-monitor to the 5V adaptor. Learn to navigate
between the different channels of the LCD-monitor to find out on what channel the camera
transmits.
