Safety
Cables which pass through a metal wall must be protected and isolated using a sheath or sleeve.
Attach cables to prevent any contact with moving parts.
Leave the drive power supply cable accessible: it must be possible to replace it easily.
To ensure electrical safety, this Class III motor must be powered by a "SELV" voltage source (Safety Extra
Low Voltage).

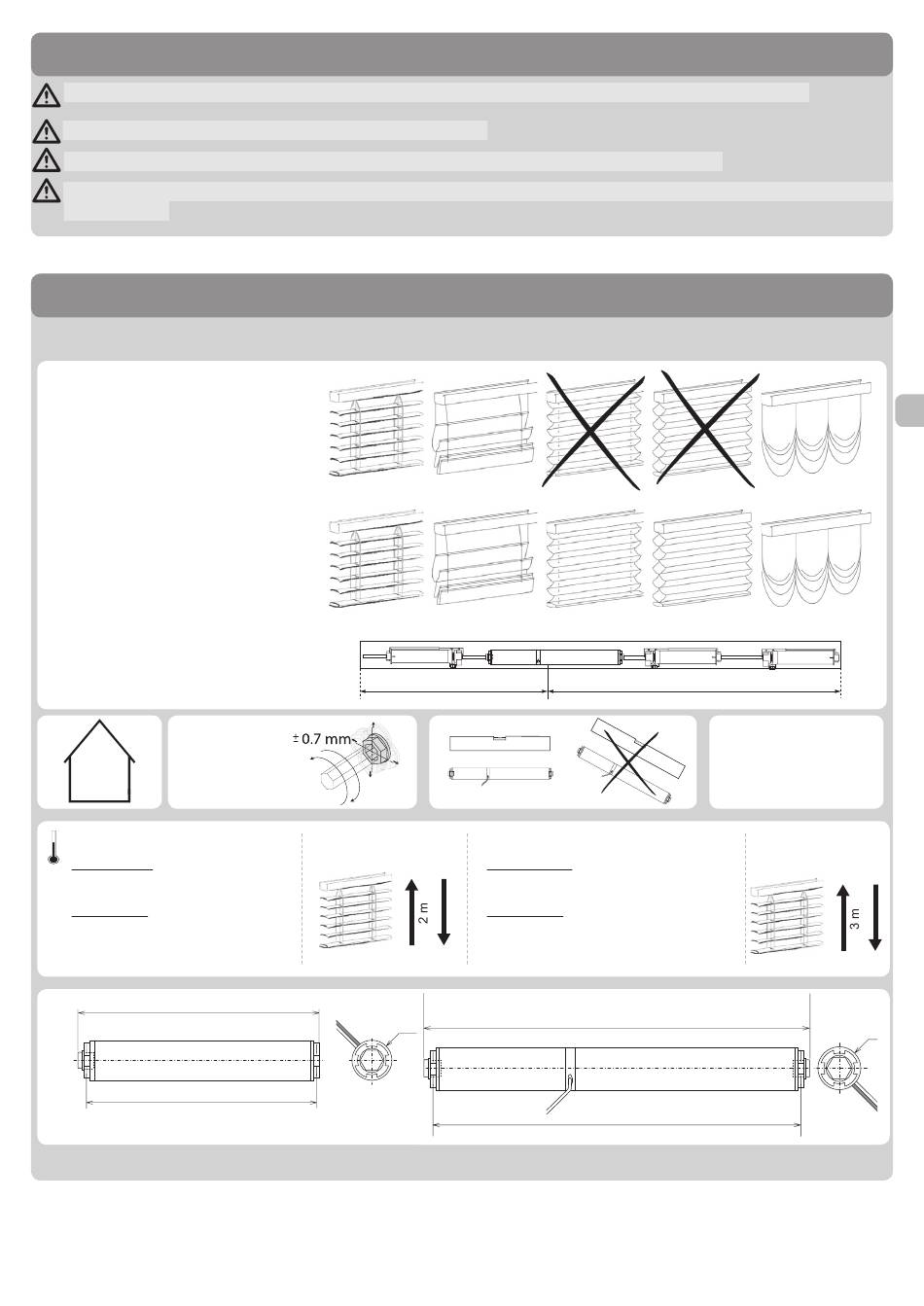

Characteristics
This product cannot be used with sealed double glazing.
LV 25
LW 25 - LW 25 E
Oldham
coupling
IP 20
LV 25 / LW 25
Nominal use :
-10°C / 60°C (14°F / 140°F)
Restrictions :
-10°C / 0°C (14°F / 32°F) : 100 cycles
s
e
Maximum number of slat tilting: 20000
138.5 mm ±1 maxi
132 mm ±1 maxi
For additional information on the technical data for this drive contact your Somfy representative.
1 cycle
CTS25
Ø 24 mm
Copyright © 2010-2016 SOMFY ACTIVITES SA, Société Anonyme. All rights reserved.
1/3
LW 25 E / LW 25 LL
Nominal use :
-10°C / 85°C (14°F / 185°F)
Restrictions :
-10°C / 0°C (14°F / 32°F) : 100 cycles
60°C / 75°C (140°F - 167°F) : 2,000 cycles
75°C / 85°C (167°F - 185°F) : 500
205.5 mm ± 1.3 maxi
195.5 mm ± 1.3 maxi
2/3
24V DC
> 20V
< 27V
1 cycle
CTS25
cycleses
Ø 24 mm
EN
